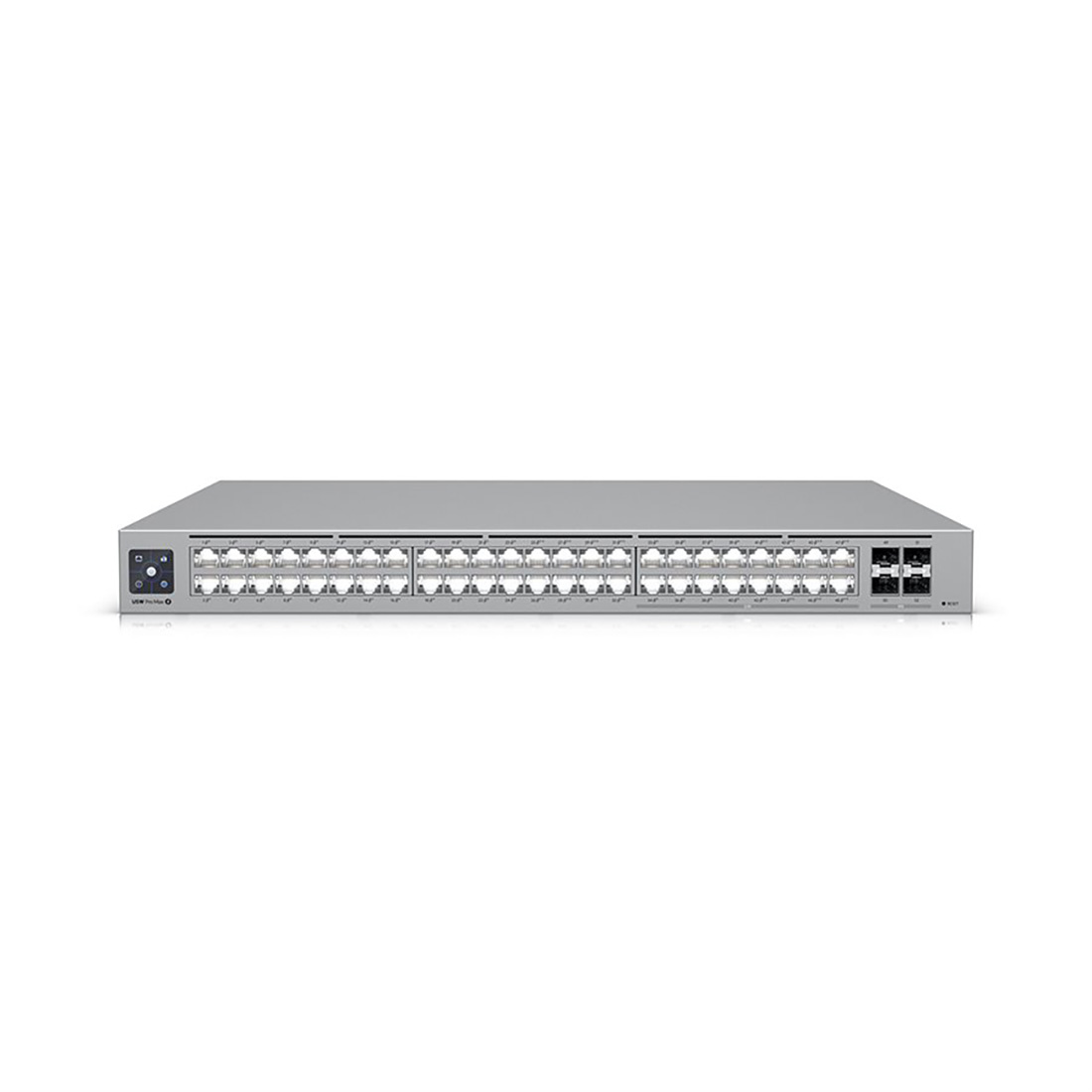

Ubiquiti Pro Max 48-Port PoE++ Etherlighting Switch (USW-Pro-Max-48-PoE)

Name: Ubiquiti Pro Max 48-Port PoE++ Etherlighting Switch (USW-Pro-Max-48-PoE)
SKU: USW-PRO-MAX-48-POE
Availability: InStock

MSRP: $1299.00

Manufacturer: Ubiquiti

SKU: USW-PRO-MAX-48-POE

Port Layout - 1 GbE RJ45: 32 (24 PoE+; 8 PoE++) (1G/100M/10M)
Port Layout - 2.5 GbE RJ45: 16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M)
Port Layout - 10G SFP+: 4 (10G/1G)
Max. PoE Output: Up to PoE++
Total PoE Availability: 720W
Redundancy: DC Power Backup
Layer 3: Yes
Form Factor: Rack mount (1U)
Etherlighting™: Yes
Switching Capacity: 224 Gbps
Total Non-Blocking Throughput: 112 Gbps
Forwarding Rate: 167 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 32,000
L3 Table Size: ARP Entries 12,000 | IPv4 Routes 12,000
Packet Buffer Size: 2 MB
Access Lists: IPv4 128 | MAC 128
PoE Ports: 32 PoE+ | 16 PoE++
Max. PoE Wattage per Port by PSE: PoE 15.4W | PoE+ 32W | PoE++ 64W
Max. Power Consumption:
9W (Excluding PoE Output) with PoE input
100W (Excluding PoE Output)
820W (Including PoE Output)
Power Method:
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method: AC input
Power Supply: AC/DC, internal, 870W
Supported Voltage Range: 100—240V AC
Management: Ethernet | AR
Heat Dissipation: 341.2 BTU/hr (Excluding PoE Output)
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 400~1200 mm (15.7-47.2")
LCM Display: 1.3" touchscreen
ESD Protection: Air ± 16kV | Contact ± 12kV
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Etherlighting™: Ethernet | SFP+
NDAA Compliant: Yes
Certifications: CE | FCC | IC | Anatel: 06373-24-08356
Software Application Requirements: UniFi Network Vers. 8.0.24 and later
