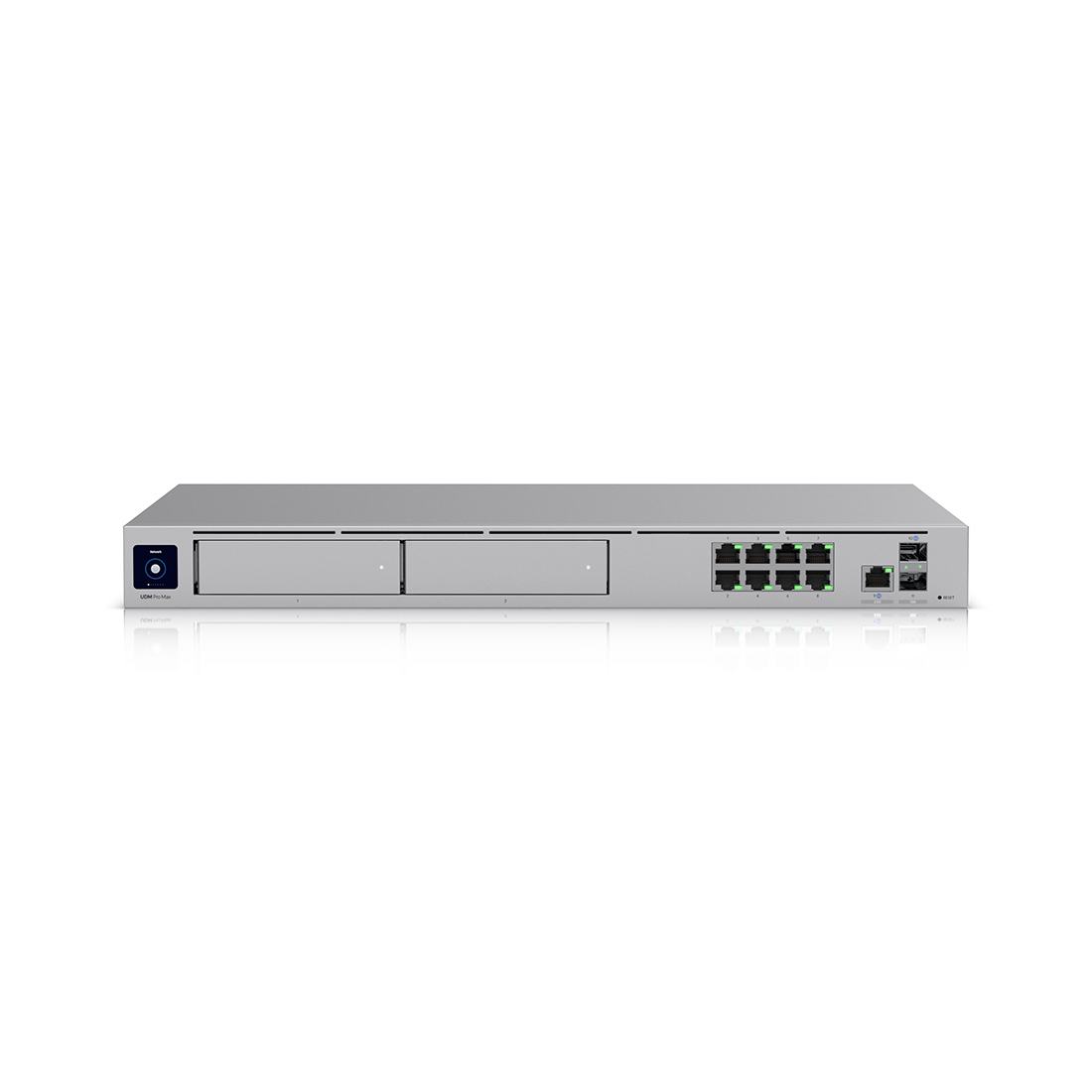

Ubiquiti Dream Machine Pro Max 10G Cloud Gateway (UDM-Pro-Max)

Name: Ubiquiti Dream Machine Pro Max 10G Cloud Gateway (UDM-Pro-Max)
SKU: UDM-PRO-MAX
Availability: InStock

MSRP: $599.00

Manufacturer: Ubiquiti

SKU: UDM-PRO-MAX

Specifications

Specs

UniFi Application Suite: Network | Protect | Access | Talk | Connect
Managed UniFi Devices: 200+
Managed Cameras: (50) HD | (25) 2K | (15) 4K
Managed Access Hubs: 150
Simultaneous Users Connected: 2,000+
Max. WAN Port Count: 8
Default WAN Ports: (1) 10G SFP+ | (1) 2.5 GbE RJ45
1 GbE RJ45 Ports:8 | (1G/100M/10M)
2.5 GbE RJ45 Port: 1 | (2.5G/1G/100M/10M)
10G SFP+ Ports: 2 | (10G/1G)
IDS/IPS Throughput: 5 Gbps
Form Factor: Rack mount (1U)
Redundancy: Shadow Mode (VRRP) Gateway Failover | DC Power Backup
Security: Stateful Firewall | Application-Aware Layer 7 Firewall | DPI & Traffic Identification | Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Content Filtering | Intrusion Prevention (IPS/IDS) | Ad Blocking | VLAN/Subnet-based Traffic Segmentation
IDS/IPS Signatures: 55,000+ with CyberSecure
License-Free SD-WAN
Site-to-Site VPN: Site Magic | IPsec | OpenVPN
VPN Server: Identity Endpoint One-Click VPN | Teleport Zero-Configuration VPN | WireGuard | OpenVPN | L2TP
VPN Client: OpenVPN | WireGuard
Networking: Multi-WAN Load Balancing | Shadow Mode (VRRP) High Availability | Advanced QoS | Multicast DNS (mDNS) | Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Integrated RADIUS Server | RADIUS over TLS (RadSec) | Additional Internet Failover with UniFi LTE Backup | Internet Quality and Outage Reporting | Policy-based WAN and VPN Routing | Customizable DHCP Server | IPv6 ISP Support | IGMP Proxy
Dynamic Routing: OSPF | BGP
MAC Address Table Size: 4,000
NVR Storage: (2) 3.5" NVR HDD bays | Built-in 128 GB SSD for Faster Experience
Max. Power Consumption: 60W
Power Method: (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz | (1) USP-RPS DC input, 11.5V DC, 8.7A
Power Supply: AC/DC, internal, 100W
Supported Voltage Range: 100—240V AC
Heat Dissipation: 205 BTU/hr
Processor: Quad-core ARM® Cortex®-A57 at 2.0 GHz
System Memory: 8 GB
On-board Storage: 32 GB eMMC | 128 GB SSD (Integrated)
Enclosure Material: Aluminium CNC, SGCC steel
Mount Material: SGCC steel
LCM Display: 1.3" touchscreen
Management: Ethernet | Bluetooth
Button: (1) Factory-reset
ESD/EMP Protection: Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant
Certifications: CE, FCC, IC, Anatel: 06369-24-08356, SRRC
