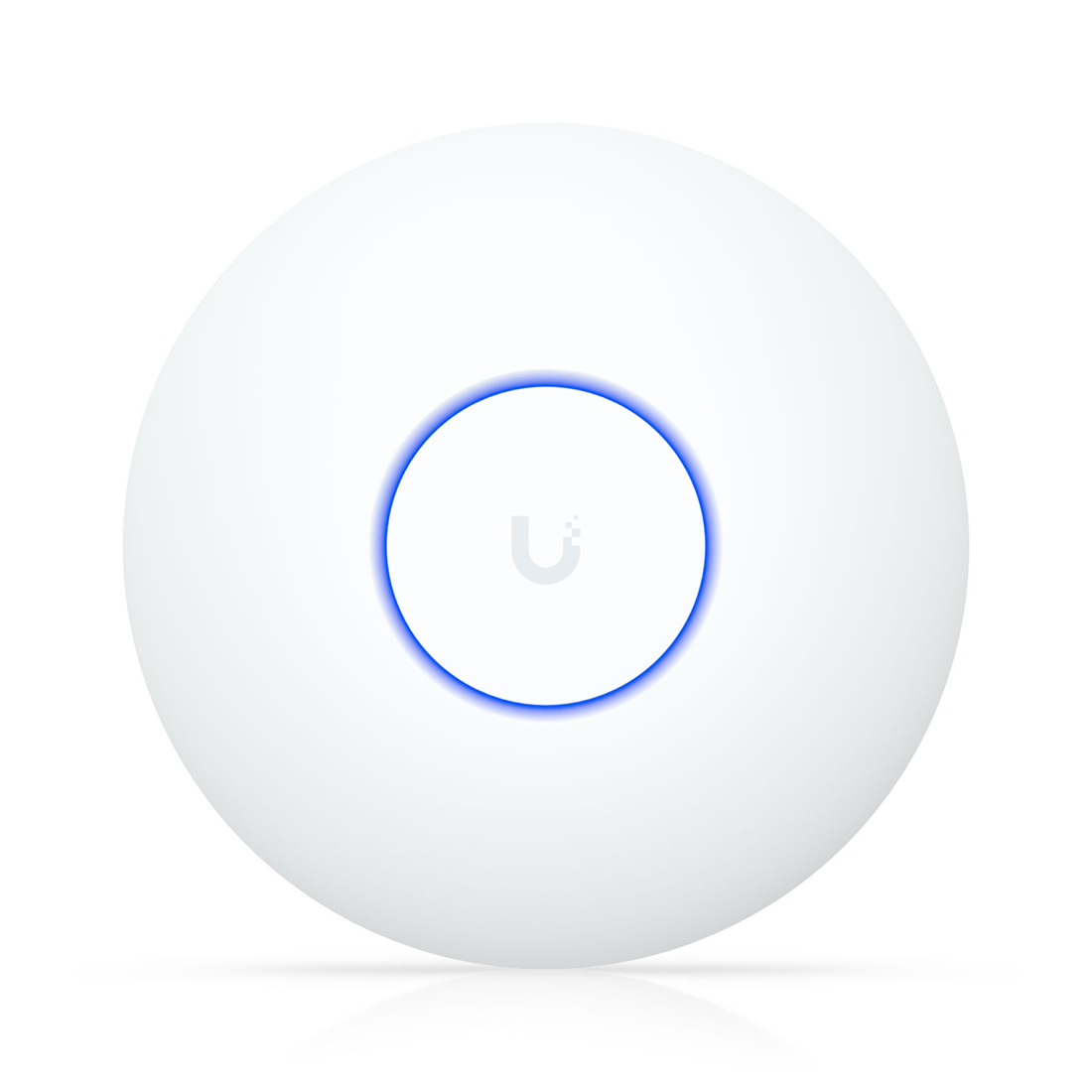

Ubiquiti U7 Lite Ceiling-mount WiFi 7 AP (U7-Lite-US)

Ubiquiti U7 Lite UniFi Wi-Fi 7 access point gives custom integrators an affordable ceiling-mount AP for next-generation wireless installs. Dealers can use it to bring Wi-Fi 7 coverage to home and small business networks without overselling capacity.
MSRP: $99.00
Manufacturer: Ubiquiti
SKU: U7-LITE-US

Specs

  • WiFi Standard: WIFi 7
  • Spatial Streams: 4
  • Coverage Area: 115 m² (1,250 ft²)
  • Max. Client Count: 200+
  • Uplink: 2.5 GbE
  • Mounting: Ceiling, Wall (Lite Mount Included)
  • Power Method: PoE
  • 5 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 2.4 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 5 GHz Max. Data Rate: 4.3 Gbps (BW240)
  • 2.4 GHz Max. Data Rate: 688 Mbps (BW40)
  • 5 GHz Antenna Gain: 5 dBi
  • 2.4 GHz Antenna Gain: 4 dBi
  • 5 GHz Max. TX Power: 24 dBm
  • 2.4 GHz Max. TX Power: 23 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates: 802.11be (WiFi 7) - 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) | 802.11ax (WiFi 6) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | 802.11ac (WiFi 5) - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | 802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
  • Band Steering
  • 802.11v BSS Transition Management
  • 802.11r Fast Roaming
  • 802.11k Radio Resource Management (RRM)
  • Advanced Radio Management
  • Passpoint (Hotspot 2.0)
  • Captive Hotspot Portal: Custom Branding Landing Page | Voucher Authentication | Payment-Based Authentication | External Portal Server Support | Password Authentication | Guest Network Isolation
  • Private Pre-Shared Key (PPSK)
  • WiFi Speed Limiting
  • Client Device Isolation
  • WiFi Schedules
  • RADIUS over TLS (RadSec)
  • Dynamic RADIUS-assigned VLAN
  • Max. Power Consumption: 13W
  • Supported Voltage Range: 42.5—57V DC
  • Networking Interface: (1) 2.5 GbE RJ45 port
  • Management: Ethernet
  • Enclosure Material: UV-stabilized polycarbonate
  • Mount Material: UV-stabilized polycarbonate, galvanized steel (SGCC)
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
  • NDAA Compliant
  • Certifications: CE, FCC, IC, SRRC, Anatel: 02143-25-08356
  • Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing

Dimensions

  • Ø6.8" x 1.3"
  • 11 oz
