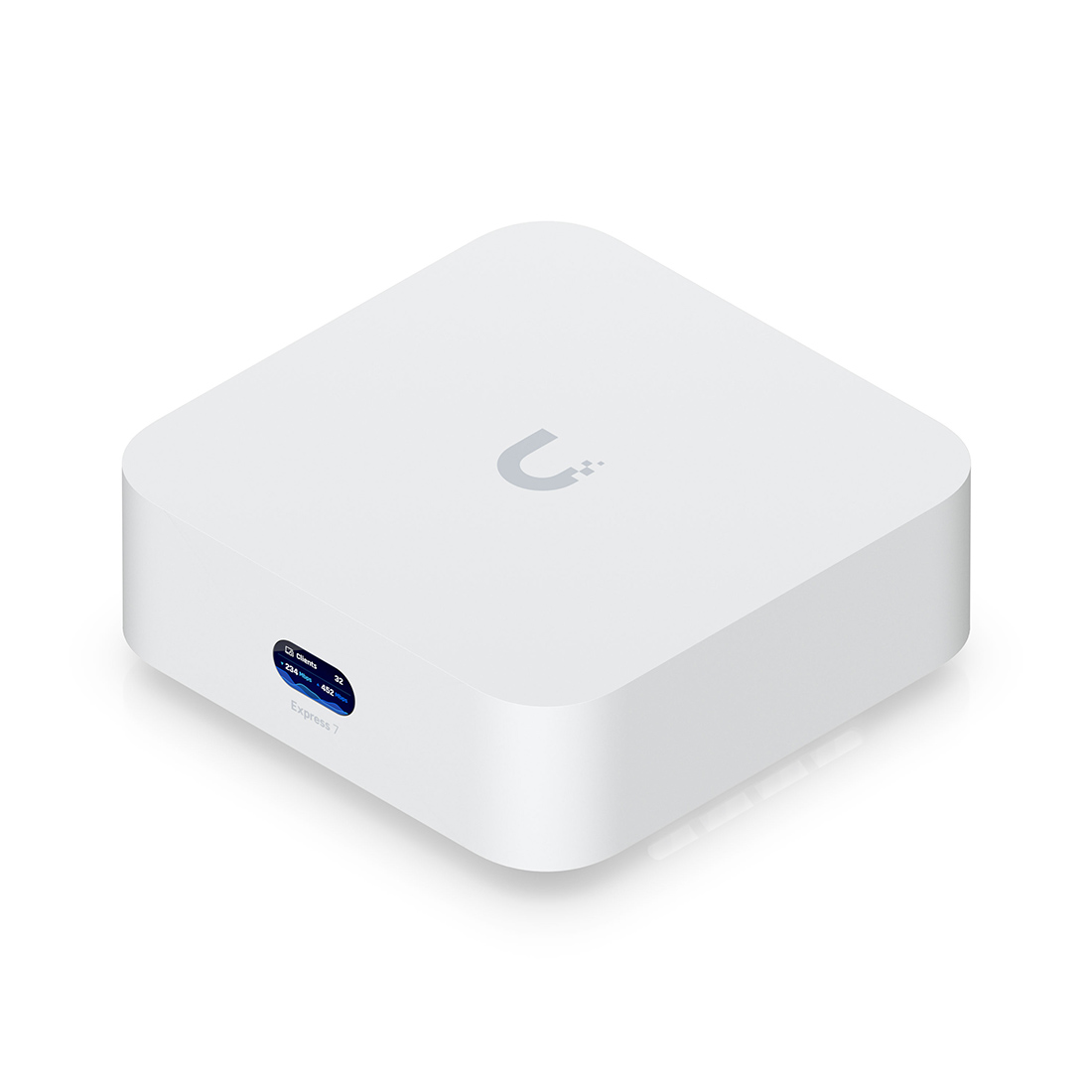

Ubiquiti UniFi Express 7 10G Cloud Gateway (UX7-US)

Name: Ubiquiti UniFi Express 7 10G Cloud Gateway (UX7-US)
SKU: UX7-US
Availability: InStock

Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.

MSRP: $199.00

Manufacturer: Ubiquiti

SKU: UX7-US

Overview
Specifications

Features

Super-compact 10G Cloud Gateway
Integrated WiFi 7
300+ Client support
0.96" Information display
1,750 ft²Coverage
Mesh-scalable

Specs

UniFi Application Suite: Network
Managed UniFi Devices: 30+
Simultaneous Users Connected: 300+
Max. WAN Port Count: 1
Default WAN Ports: (1) 10 GbE RJ45
2.5 GbE RJ45 Port:1 | (2.5G/1G/100M/10M)
10 GbE RJ45 Port: 1 | (10G/5G/2.5G/1G/100M)
IDS/IPS Throughput: 2.3 Gbps
Form Factor: Compact desktop
Coverage Area: 160 m² (1,750 ft²)
Security: Stateful Firewall | Application-Aware Layer 7 Firewall | DPI & Traffic Identification | Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Content Filtering | Intrusion Prevention (IPS/IDS) | Ad Blocking | VLAN/Subnet-based Traffic Segmentation
IDS/IPS Signatures: 20,000+ with CyberSecure
License-Free SD-WAN
Site-to-Site VPN: Site Magic | IPsec | OpenVPN
VPN Server: Identity Endpoint One-Click VPN | Teleport Zero-Configuration VPN | WireGuard | OpenVPN | L2TP
VPN Client: OpenVPN | WireGuard
Dynamic Routing: OSPF
Networking: Advanced QoS | Multicast DNS (mDNS) | Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Integrated RADIUS Server | RADIUS over TLS (RadSec) | Additional Internet Failover with UniFi LTE Backup | Internet Quality and Outage Reporting | Policy-based WAN and VPN Routing | Customizable DHCP Server | IPv6 ISP Support | IGMP Proxy
WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
6 GHz Throughput: 5.7 Gbps
5 GHz Throughput: 4.3 Gbps
2.4 GHz Throughput: 688 Mbps
6 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
5 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
6 GHz Antenna Gain: 6 dBi
5 GHz Antenna Gain: 7 dBi
2.4 GHz Antenna Gain: 4 dBi
6 GHz Max. TX Power: 24 dBm
5 GHz Max. TX Power: 26 dBm
2.4 GHz Max. TX Power: 23 dBm
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs: 4 per Radio (Gateway Mode) | 4 per Radio (AP Mode)
Supported Data Rates: 802.11be (WiFi 7) - 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) | 802.11ax (WiFi 6/6E) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | 802.11ac (WiFi 5) - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | 802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | 802.11g - 6, 9, 12, 18, 24, 36, 48, 54 Mbps | 802.11b - 1, 2, 5.5, 11 Mbps | 802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Max. Power Consumption: 22W
Power Method: USB type C (5V DC/5A)
Power Supply: USB type C (5V DC/5A) (Adapter included)
Supported Voltage Range: 100—240V AC
Heat Dissipation: 75 BTU/hr
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory: 3 GB
Enclosure Material: Polycarbonate
LCM Display: 0.96" status display
Management: Ethernet | Bluetooth
Button: (1) Factory-reset
ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant
Certifications: CE, FCC, IC, Anatel: 06656-25-08356
VLAN: 802.1Q
Guest Traffic Isolation

Dimensions

4.61" x 4.61" x 1.67''
14.9 oz

Features

Super-compact 10G Cloud Gateway
Integrated WiFi 7
300+ Client support
0.96" Information display
1,750 ft²Coverage
Mesh-scalable
