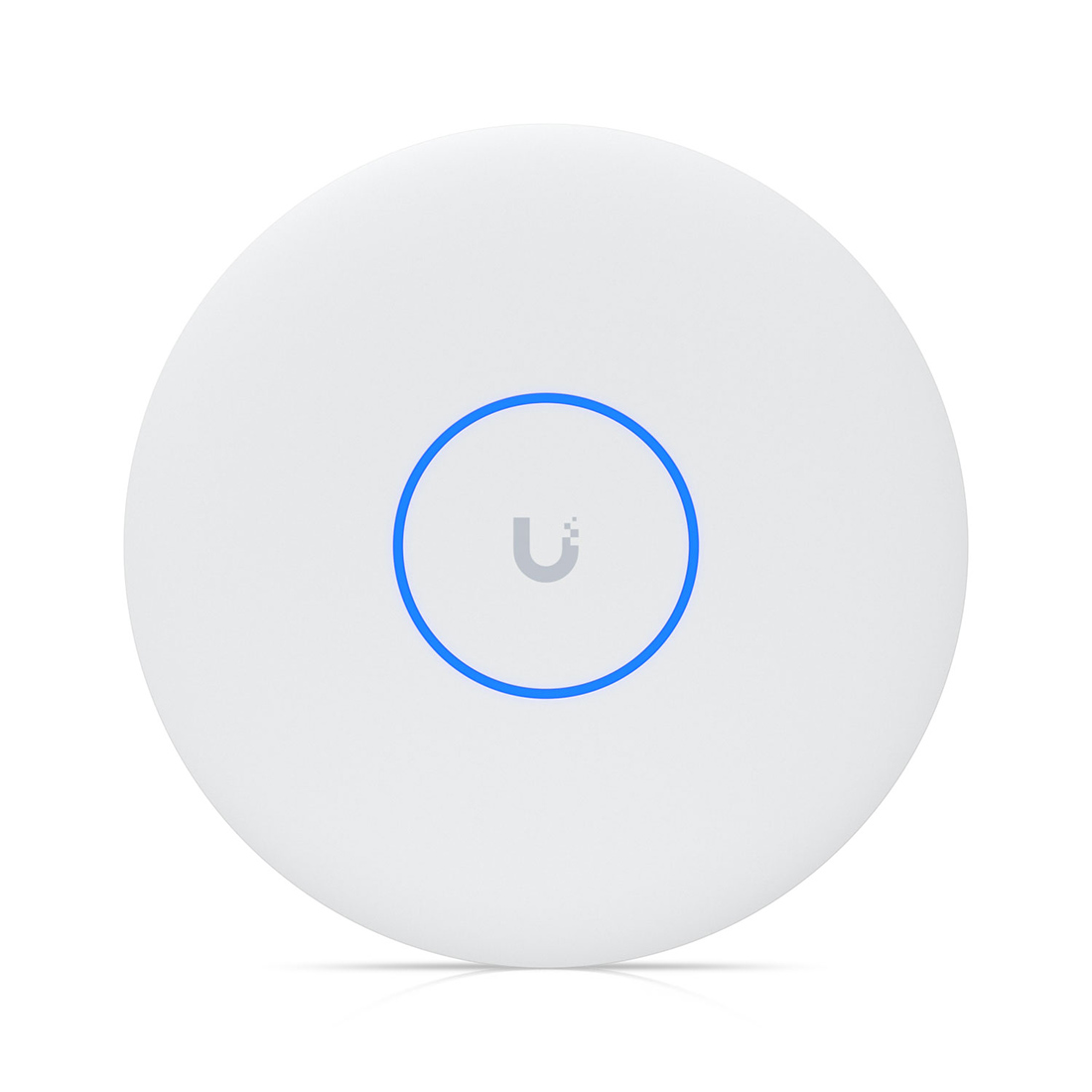

Ubiquiti U7 Pro XGS Ceiling-mount WiFi 7 AP, white

Ubiquiti U7 Pro XGS white UniFi Wi-Fi 7 access point gives custom integrators a premium ceiling-mount AP for high-capacity professional networks. Dealers can use it for demanding residential and commercial projects where fast Wi-Fi and a clean white finish are preferred.
MSRP: $299.00
Manufacturer: Ubiquiti
SKU: U7-PRO-XGS-US

Specs

  • WiFi Standard: WiFi 7
  • Spatial Streams: 8
  • Coverage Area: 160 m² (1,750 ft²)
  • Max. Client Count: 500+
  • Uplink: 10 GbE
  • Mounting: Ceiling, Wall (Lite Mount Included)
  • Power Method: PoE++
  • MIMO: 6 GHz 2 x 2 (DL/UL MU-MIMO) | 5 GHz 4 x 4 (DL/UL MU-MIMO) | 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate: 6 GHz 5.8 Gbps (BW320) | 5 GHz 8.6 Gbps (BW240) | 2.4 GHz 688 Mbps (BW40)
  • Antenna Gain: 6 GHz 6 dBi | 5 GHz 6 dBi | 2.4 GHz 4 dBi
  • Max. TX Power: 6 GHz 24 dBm | 5 GHz | 29 dBm | 2.4 GHz 23 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates:
    802.11be (WiFi 7)
    6 GHz - 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
    5 GHz - 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
    802.11ax (WiFi 6)
    7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
    802.11ac (WiFi 5)
    6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
    802.11n
    6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
  • Max. Power Consumption: 29W
  • Supported Voltage Range: 42.5—57V DC
  • Networking Interface: (1) 10 GbE RJ45 port
  • Management: Ethernet
  • Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
  • Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
  • LEDs: White/Blue
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
  • NDAA Compliant: Yes
  • Certifications: CE, FCC, IC, Anatel: 05123-25-08356
  • Operating Frequency:
    US/CA
    2400 - 2472 MHz
    U-NII-1 5150 - 5250 MHz
    U-NII-2A 5250 - 5350 MHz
    U-NII-2C 5470 - 5725 MHz
    U-NII-3 5725 - 5850 MHz
    U-NII-5 to U-NII-8 5925 - 7125 MHz

    Worldwide
    2400 - 2483.5 MHz
    5150 - 5725 MHz
    5925 - 7125 MHz
  • Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • Application Requirements: UniFi Network - Version 9.0.114 and later
  • Color: White

Dimensions

  • Size: 215 x 32.5 mm (8.5 x 1.3")
  • Weight: 800 g (1.8 lb)
