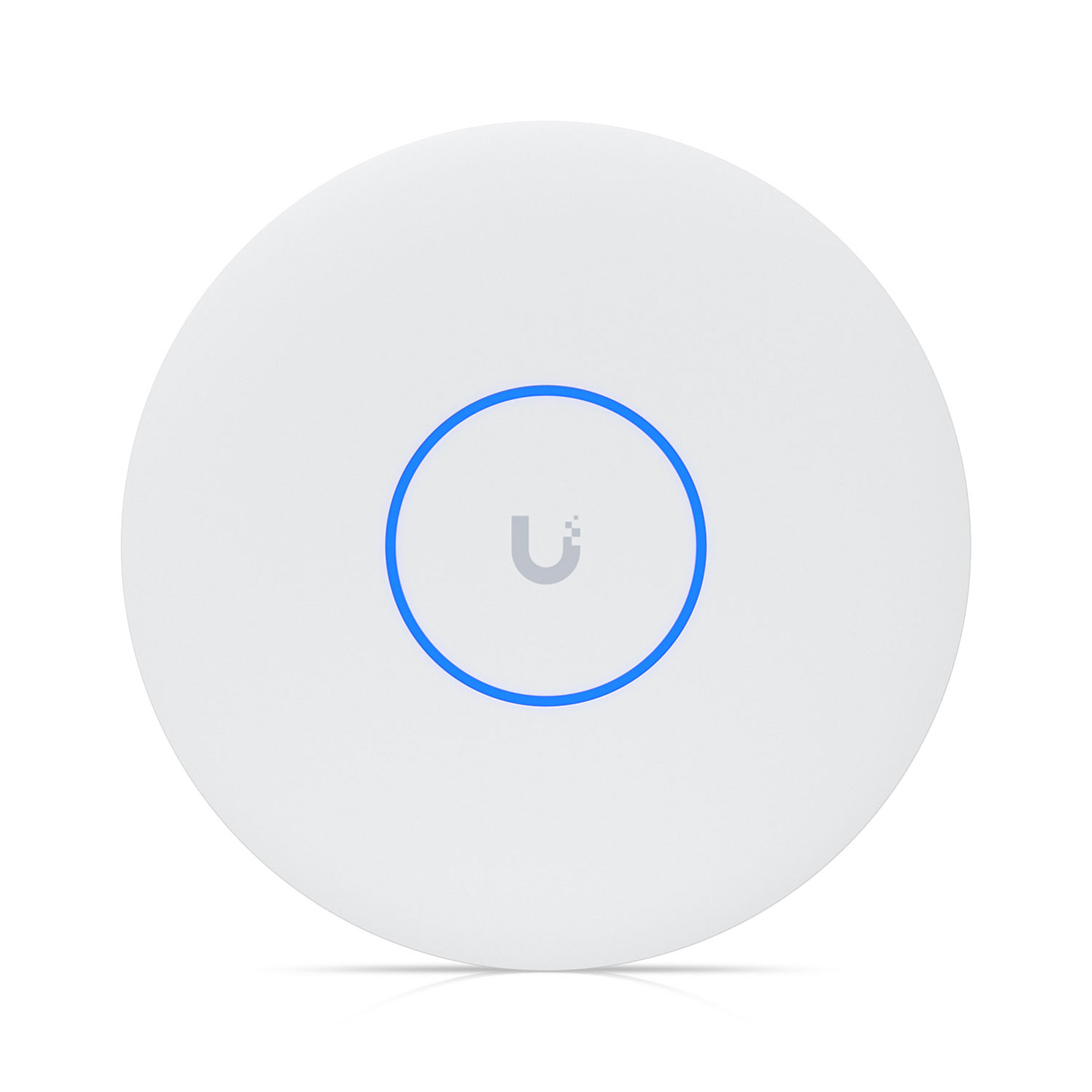

Ubiquiti U7 Pro XG Ceiling-mount WiFi 7 AP, white (U7-Pro-XG-US)

Ubiquiti U7 Pro XG white UniFi Wi-Fi 7 access point gives dealers a premium ceiling-mount AP with high-speed network connectivity for professional installs. Custom integrators can use it in homes and commercial spaces that need fast Wi-Fi 7 coverage.
MSRP: $199.00
Manufacturer: Ubiquiti
SKU: U7-PRO-XG-US

Specs

  • WiFi Standard: WiFi 7
  • Spatial Streams: 7
  • Coverage Area: 140 m² (1,500 ft²)
  • Max. Client Count: 300+
  • Uplink: 10 GbE
  • Mounting: Ceiling, Wall (Lite Mount Included)
  • Power Method: PoE+
  • MIMO: 6 GHz 2 x 2 (DL/UL MU-MIMO) | 5 GHz 2 x 2 (DL/UL MU-MIMO) | 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate: 6 GHz 5.8 Gbps (BW320) | 5 GHz 4.3 Gbps (BW240) | 2.4 GHz 688 Mbps (BW40)
  • Antenna Gain: 6 GHz 6 dBi | 5 GHz 5 dBi | 2.4 GHz 4 dBi
  • Max. TX Power: 6 GHz 24 dBm | 5 GHz 26 dBm | 2.4 GHz 23 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates:
    802.11be (WiFi 7)
    6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
    5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
    802.11ax (WiFi 6)
    7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    802.11ac (WiFi 5)
    6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    802.11n
    6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
  • Max. Power Consumption: 22W
  • Supported Voltage Range: 42.5—57V DC
  • Networking Interface: (1) 10 GbE RJ45 port
  • Management: Ethernet
  • Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
  • Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
  • LEDs: White/Blue
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
  • NDAA Compliant: Yes
  • Certifications: CE, FCC, IC, Anatel: 06630-25-08356
  • Operating Frequency:
    US/CA
    2400 - 2472 MHz
    U-NII-1 5150 - 5250 MHz
    U-NII-2A 5250 - 5350 MHz
    U-NII-2C 5470 - 5725 MHz
    U-NII-3 5725 - 5850 MHz
    U-NII-5 to U-NII-8 5925 - 7125 MHz

    Worldwide
    2400 - 2483.5 MHz
    5150 - 5725 MHz
    5925 - 7125 MHz
  • Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • Application Requirements: UniFi Network - Version 9.0.114 and later
  • Color: White

Dimensions

  • Size: 206 x 32.5 mm (8.1 x 1.3")
  • Weight: 750 g (1.7 lb)
