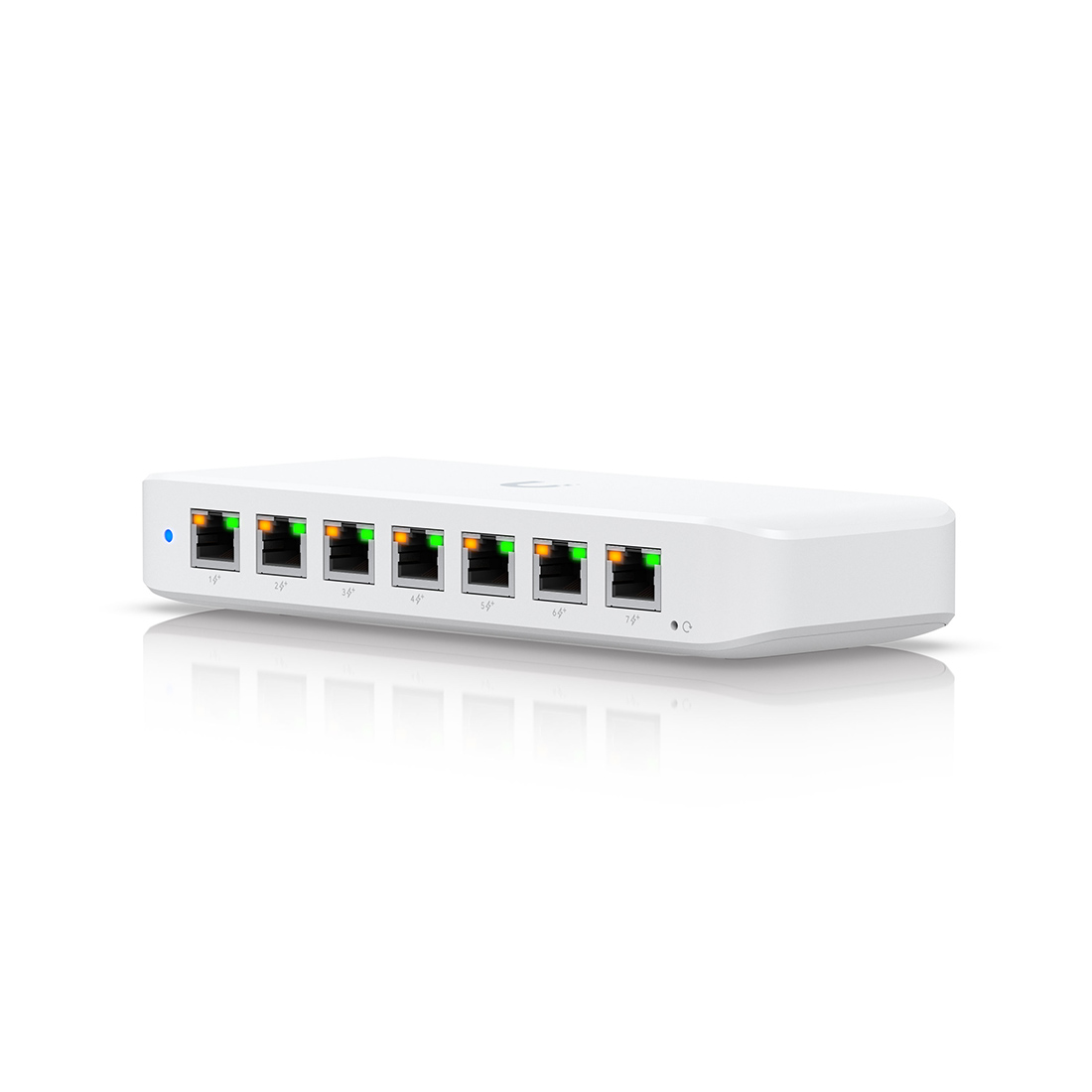

Ubiquiti Ultra 8-port GbE PoE Switch (USW-ULTRA)

Name: Ubiquiti Ultra 8-port GbE PoE Switch (USW-ULTRA)
SKU: USW-ULTRA
Availability: InStock

MSRP: $129.00

Manufacturer: Ubiquiti

SKU: USW-ULTRA

Port Layout - 1 GbE RJ45: 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)
Port Layout - 1G SFP: 2 (1G)
Max. PoE Output: Up to PoE+
Total PoE Availability:
PoE++ input 42W
PoE+ input 16W
60W PoE adapter input 42W
60W AC adapter input 52W
210W AC adapter input 202W
Form Factor: Compact desktop, wall, magnetic
Switching Capacity: 16 Gbps
Total Non-Blocking Throughput: 8 Gbps
Forwarding Rate: 12 Mpps
Supported VLANs: 256
MAC Address Table Size: 4,000
PoE Ports: 7 PoE+ | 1 PoE++
Max. PoE Wattage per Port by PSE: PoE+ 30W
Max. Power Consumption:
9W (Excluding PoE Output) with PoE input
8W (Excluding PoE Output) with adapter input
210W (Including PoE Output) with 210W AC adapter input
Power Method: (1) AC/DC adapter (Excluded) | (1) PoE++
Power Input Method: DC Input | PoE
Supported Voltage Range: 50—57V DC/PoE
Management: Ethernet
Heat Dissipation: 15 BTU/hr (Excluding PoE Output)
Enclosure Material: Polycarbonate
Mount Material: Polycarbonate
Ambient Operating Temperature:
PoE++ input: -30 to 60° C (-22 to 140° F)
60W AC adapter input: -20 to 45° C (-4 to 113° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: Yes
Certifications: CE | FCC | IC | Anatel 06367-24-08356
Software Application Requirements: UniFi Network Vers. 8.0.28 and later
