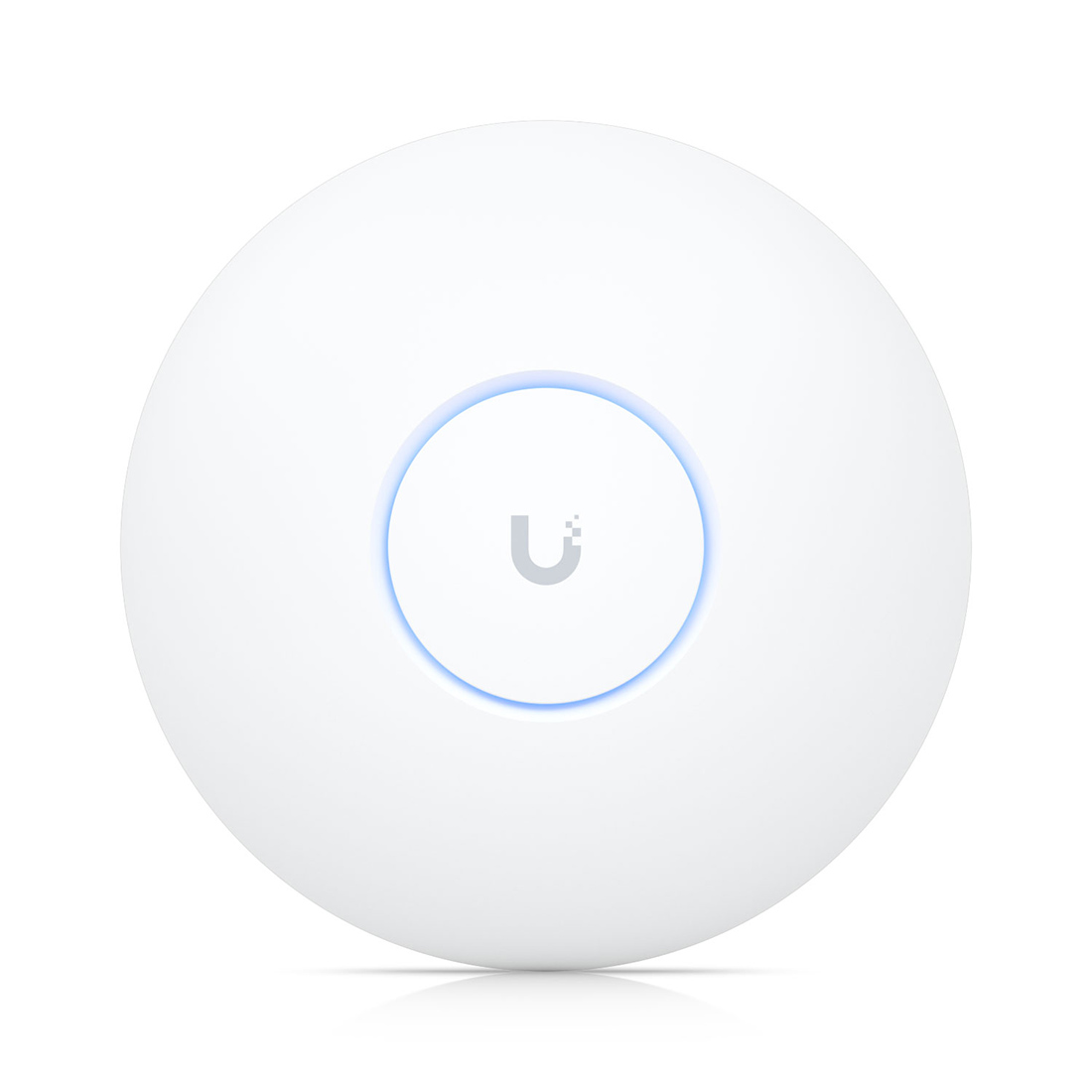

Ubiquiti U7 Pro Max Ceiling-mount WiFi 7 AP (U7-Pro-Max-US)

Ubiquiti U7 Pro Max UniFi Wi-Fi 7 access point gives custom integrators a high-capacity ceiling-mount AP for demanding professional networks. Provides interference-free WiFi for many connected devices in large-scale environments.
MSRP: $279.00
Manufacturer: Ubiquiti
SKU: U7-PRO-MAX-US

Features

  • Ceiling-mounted WiFi 7 access point
  • 8 spatial streams
  • 6 GHz support
  • Dedicated spectral scanning engine
  • Tri-radio 2.4 / 5 / 6 GHz
  • 500+ Connected devices
  • 1,750 ft2 Coverage
  • Wireless meshing
  • Please note: Real-time spectral analysis requires UniFi Network version 8.2.93 and later

Specs

  • WiFi Standard: WiFi 7
  • Spatial Streams: 8
  • Coverage Area: 160 m² (1,750 ft²)
  • Max. Client Count: 500+
  • Uplink: 2.5 GbE
  • Mounting: Ceiling, Wall (Pro Mount Included)
  • Power Method: PoE+
  • 6 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 5 GHz MIMO: 4 x 4 (DL/UL MU-MIMO)
  • 2.4 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 6 GHz Max. Data Rate: 5.8 Gbps (BW320)
  • 5 GHz Max. Data Rate: 8.6 Gbps (BW240)
  • 2.4 GHz Max. Data Rate: 688 Mbps (BW40)
  • 6 GHz Antenna Gain: 5.9 dBi
  • 5 GHz Antenna Gain: 6 dBi
  • 2.4 GHz Antenna Gain: 4 dBi
  • 6 GHz Max. TX Power: 23 dBm
  • 5 GHz Max. TX Power: 29 dBm
  • 2.4 GHz Max. TX Power: 23 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates: 802.11be (WiFi 7) - 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320), 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) | 802.11ax (WiFi 6/6E) - 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) | 802.11ac (WiFi 5) - 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) | 802.11n - 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
  • Band Steering
  • 802.11v BSS Transition Management
  • 802.11r Fast Roaming
  • 802.11k Radio Resource Management (RRM)
  • Advanced Radio Management
  • Real-Time Spectral Analysis
  • Passpoint (Hotspot 2.0)
  • Captive Hotspot Portal: Custom Branding Landing Page | Voucher Authentication | Payment-Based Authentication | External Portal Server Support | Password Authentication | Guest Network Isolation
  • Private Pre-Shared Key (PPSK)
  • WiFi Speed Limiting
  • Client Device Isolation
  • WiFi Schedules
  • RADIUS over TLS (RadSec)
  • Dynamic RADIUS-assigned VLAN
  • Max. Power Consumption: 25W
  • Supported Voltage Range: 44—57V DC
  • Networking Interface: (1) 1/2.5 GbE RJ45 port
  • Management: Ethernet
  • Enclosure Material: Polycarbonate, aluminum
  • Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
  • NDAA Compliant
  • Certifications: CE, FCC, IC, Anatel: 08959-24-08356
  • Operating Frequency: US/CA: 2400 - 2472 MHz, U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz, U-NII-5 to U-NII-8 : 5925 - 7125 MHz | Worldwide: 2400 - 2483.5 MHz, 5150 - 5725 MHz, 5925 - 7125 MHz
  • Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing

Dimensions

  • Ø8.1" x 1.8"
  • 1.5 lbs

Features

  • Ceiling-mounted WiFi 7 access point
  • 8 spatial streams
  • 6 GHz support
  • Dedicated spectral scanning engine
  • Tri-radio 2.4 / 5 / 6 GHz
  • 500+ Connected devices
  • 1,750 ft2 Coverage
  • Wireless meshing
  • Please note: Real-time spectral analysis requires UniFi Network version 8.2.93 and later
