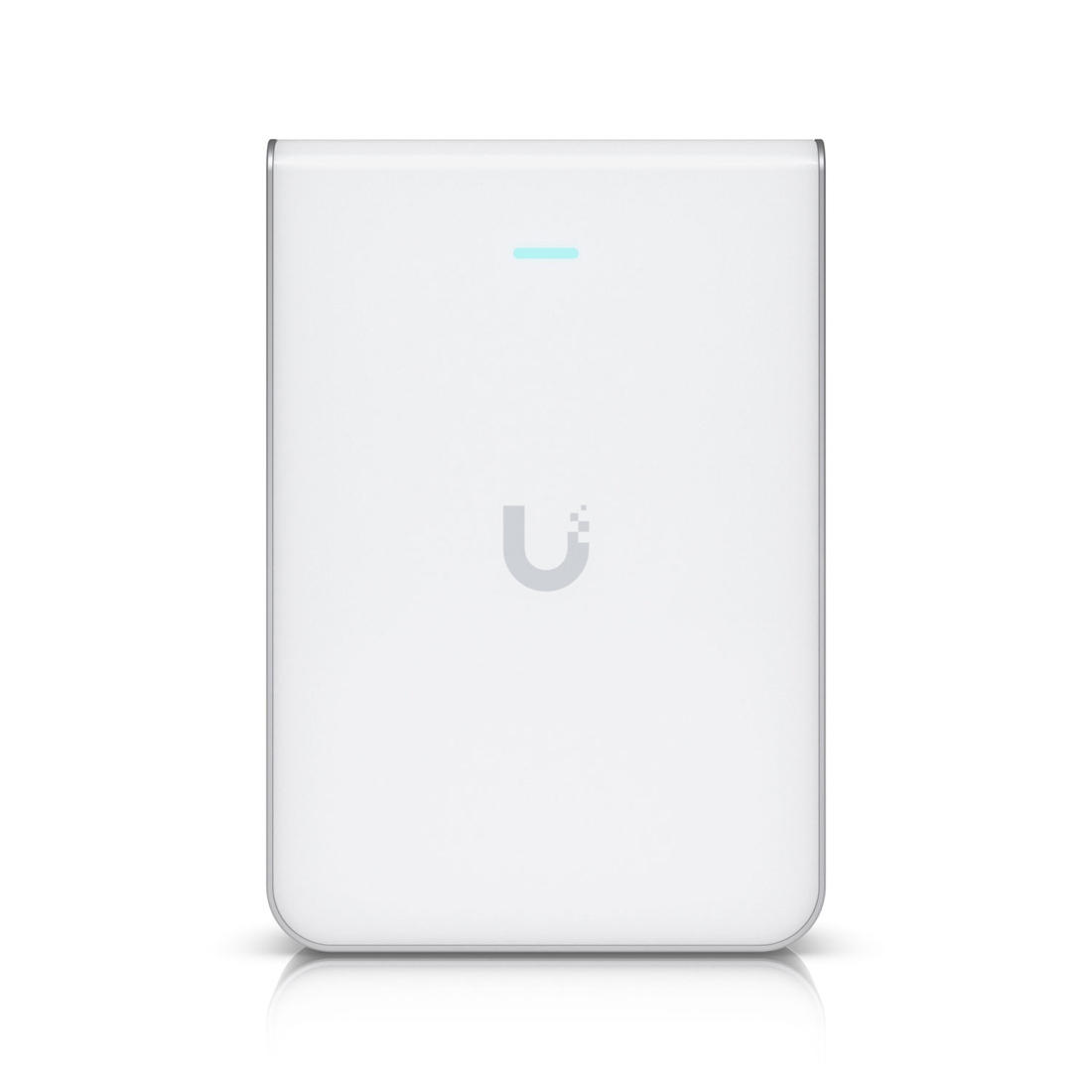

Ubiquiti U7 Pro Wall-mounted WiFi 7 AP (U7-Pro-Wall-US)

Ubiquiti U7 Pro Wall UniFi Wi-Fi 7 access point gives dealers a wall-mounted AP option for professional installs where ceiling placement is not ideal. Custom integrators can use it to add clean, high-speed Wi-Fi 7 coverage in homes, offices, and hospitality spaces.
MSRP: $199.00
Manufacturer: Ubiquiti
SKU: U7-PRO-WALL-US

Specs

  • WiFi Standard: WiFi 7
  • Spatial Streams: 6
  • Coverage Area: 140 m² (1,500 ft²)
  • Max. Client Count: 300+
  • Uplink: 2.5 GbE
  • Mounting: Wall (Mount Included)
  • Power Method: PoE+
  • MIMO: 6 GHz 2 x 2 (DL/UL MU-MIMO) | 5 GHz 2 x 2 (DL/UL MU-MIMO) | 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate: 6 GHz 5.8 Gbps (BW320) | 5 GHz 4.3 Gbps (BW240) | 2.4 GHz 688 Mbps (BW40)
  • Antenna Gain: 6 GHz 6 dBi | 5 GHz 5 dBi | 2.4 GHz 4 dBi
  • Max. TX Power: 6 GHz 23 dBm | 5 GHz 26 dBm | 2.4 GHz 22 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates:
    802.11be (WiFi 7) - 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
    802.11ax (WiFi 6/6E) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    802.11ac (WiFi 5) - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
  • Max. Power Consumption: 22W
  • Supported Voltage Range: 44—57V DC
  • Networking Interface: (1) 1/2.5 GbE RJ45 port
  • Management: Ethernet
  • Enclosure Material: Polycarbonate, aluminum
  • Mount Material: Aluminum
  • LEDs: White/Blue
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
  • NDAA Compliant: Yes
  • Certifications: CE, FCC, IC, Anatel: 10022-24-08356
  • Operating Frequency:
    US/CA
    2400 - 2472 MHz
    U-NII-1 5150 - 5250 MHz
    U-NII-2A 5250 - 5350 MHz
    U-NII-2C 5470 - 5725 MHz
    U-NII-3 5725 - 5850 MHz
    U-NII-5 to U-NII-8 5925 - 7125 MHz

    Worldwide
    2400 - 2483.5 MHz
    5150 - 5725 MHz
    5925 - 7125 MHz
  • Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • Software Application Requirements: UniFi Network Version 8.1.113 and later

Dimensions

  • Size: 150 x 103 x 36 mm (5.9 x 4.1 x 1.4")
  • Weight: 580 g (1.3 lb)
