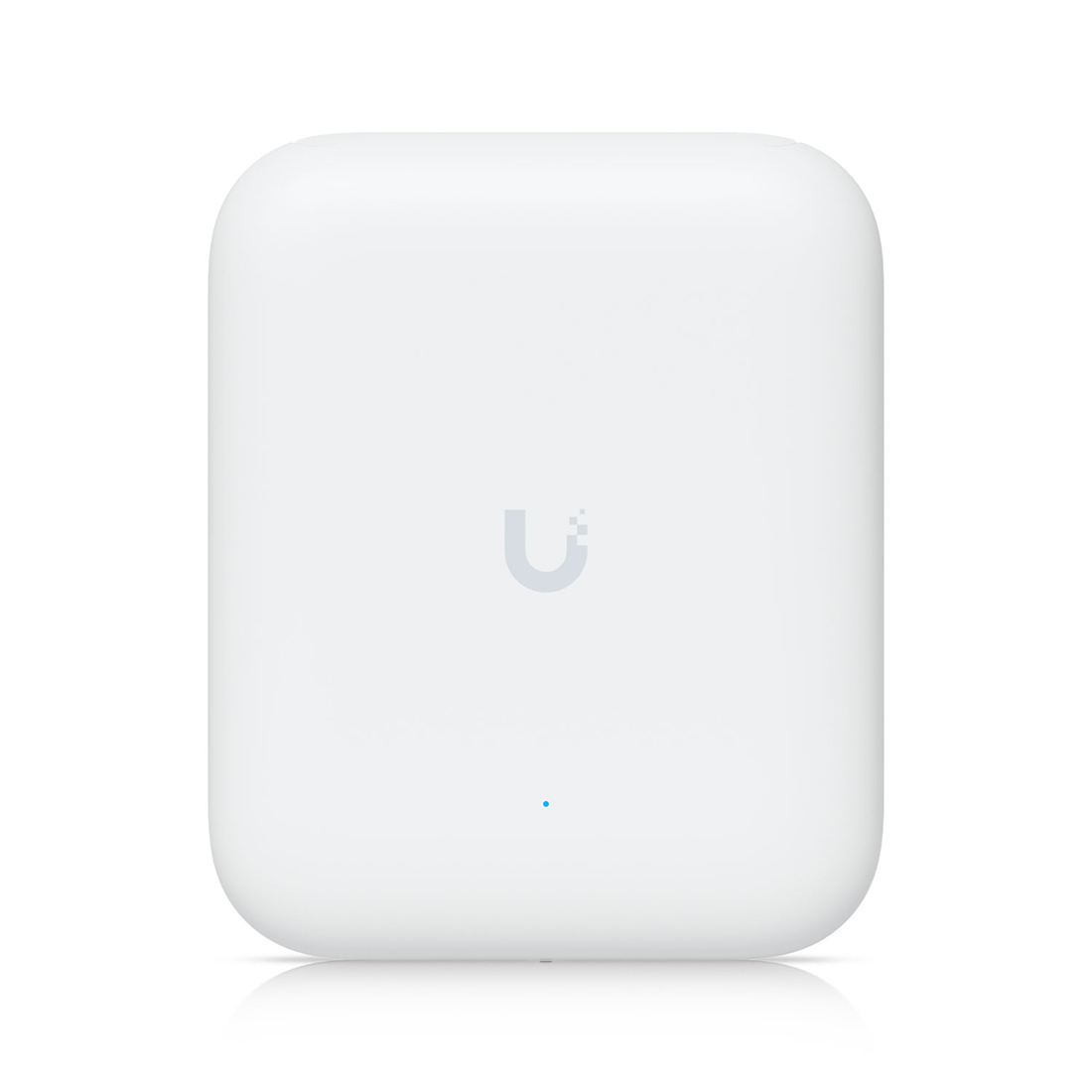

Ubiquiti U7 Pro Outdoor IP67 WiFi 7 AP (U7-Pro-Outdoor-US)

Ubiquiti U7 Pro Outdoor IP67 WiFi 7 AP (U7-Pro-Outdoor-US)
MSRP: $279.00
Manufacturer: Ubiquiti
SKU: U7-PRO-OUTDOOR-US

Specs

  • WiFi Standard: WiFi 7
  • Spatial Streams: 6
  • Coverage Area: 465 m² (5,000 ft²)
  • Max. Client Count: 300+
  • Uplink: 2.5 GbE
  • Mounting: Wall, Pole (Mounts Included)
  • Weatherproofing: IPX6 | IP67 (With cable-gland door kit)
  • Power Method: PoE+
  • 6 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 5 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 2.4 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 6 GHz Max. Data Rate: 5.8 Gbps (BW320)
  • 5 GHz Max. Data Rate: 4.3 Gbps (BW240)
  • 2.4 GHz Max. Data Rate: 688 Mbps (BW40)
  • 6 GHz Antenna Gain: Directional internal: 10 dBi, 90° x 45°
  • 5 GHz Antenna Gain: Directional internal: 11 dBi, 90° x 45° | External omni: 8 dBi, 360° x 15°
  • 2.4 GHz Antenna Gain: Directional internal: 8 dBi, 90° x 90° | External omni: 6 dBi, 360° x 15°
  • 6 GHz Max. TX Power: 26 dBm
  • 5 GHz Max. TX Power: 26 dBm
  • 2.4 GHz Max. TX Power: 23 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates: 802.11be (WiFi 7) - 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) | 802.11ax (WiFi 6/6E) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | 802.11ac (WiFi 5) - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | 802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
  • Band Steering
  • 802.11v BSS Transition Management
  • 802.11r Fast Roaming
  • 802.11k Radio Resource Management (RRM)
  • Advanced Radio Management
  • Passpoint (Hotspot 2.0)
  • Captive Hotspot Portal: Custom Branding Landing Page | Voucher Authentication | Payment-Based Authentication | External Portal Server Support | Password Authentication | Guest Network Isolation
  • Private Pre-Shared Key (PPSK)
  • WiFi Speed Limiting
  • Client Device Isolation
  • WiFi Schedules
  • RADIUS over TLS (RadSec)
  • Dynamic RADIUS-assigned VLAN
  • Max. Power Consumption: 21W
  • Supported Voltage Range: 42.5—57V DC
  • Networking Interface: (1) 1/2.5 GbE RJ45 port
  • Wind Loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
  • Management: Ethernet
  • Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
  • Mount Material: UV-stabilized polycarbonate
  • NDAA Compliant
  • Certifications: FCC, IC
  • Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing

Dimensions

  • Without mount: 6.7" x 8.2" x 2.6"
  • With mount: 6.7" x 8.2" x 4.8"
  • Pole Mount Diameter: 1–2.5"
  • Device: 2.6 lbs
  • With mount: 2.9 lbs
