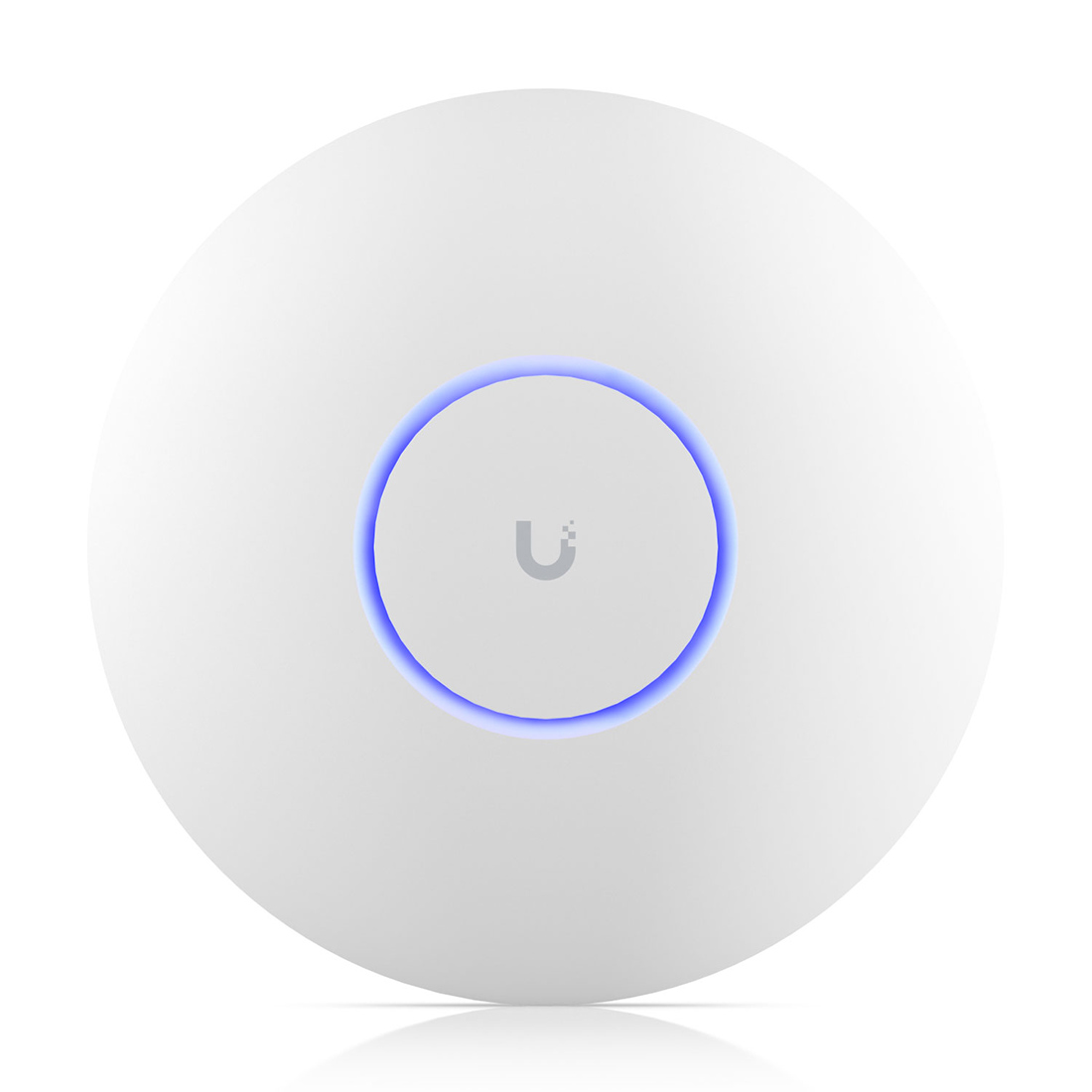

Ubiquiti U7 Pro Ceiling-mount WiFi 7 AP (U7-Pro-US)

Name: Ubiquiti U7 Pro Ceiling-mount WiFi 7 AP (U7-Pro-US)
SKU: U7-PRO-US
Availability: InStock

MSRP: $189.00

Manufacturer: Ubiquiti

SKU: U7-PRO-US

Specifications

Specs

WiFi Standard: WiFi 7
Spatial Streams: 6
Coverage Area: 140 m² (1,500 ft²)
Max. Client Count: 300+
Uplink: 2.5 GbE
Mounting: Ceiling, Wall (Pro Mount Included)
Power Method: PoE+
6 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
5 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
6 GHz Max. Data Rate: 5.8 Gbps (BW320)
5 GHz Max. Data Rate: 4.3 Gbps (BW240)
2.4 GHz Max. Data Rate: 688 Mbps (BW40)
6 GHz Antenna Gain: 5.8 dBi
5 GHz Antenna Gain: 6 dBi
2.4 GHz Antenna Gain: 4 dBi
6 GHz Max. TX Power: 23 dBm
5 GHz Max. TX Power: 26 dBm
2.4 GHz Max. TX Power: 23 dBm
Max. BSSIDs: 8 per Radio
Supported Data Rates: 802.11be (WiFi 7) - 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) | 802.11ax (WiFi 6/6E) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | 802.11ac (WiFi 5) - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | 802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Max. Power Consumption: 21W
Supported Voltage Range: 44—57V DC
Networking Interface: (1) 1/2.5 GbE RJ45 port
Management: Ethernet
Enclosure Material: Polycarbonate, metal
Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant
Certifications: CE, FCC, IC, Anatel: 06370-24-08356
Operating Frequency: US/CA: 2400 - 2472 MHz, U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz, U-NII-5 to U-NII-8 : 5925 - 7125 MHz | Worldwide: 2400 - 2483.5 MHz, 5150 - 5725 MHz, 5925 - 7125 MHz
Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
