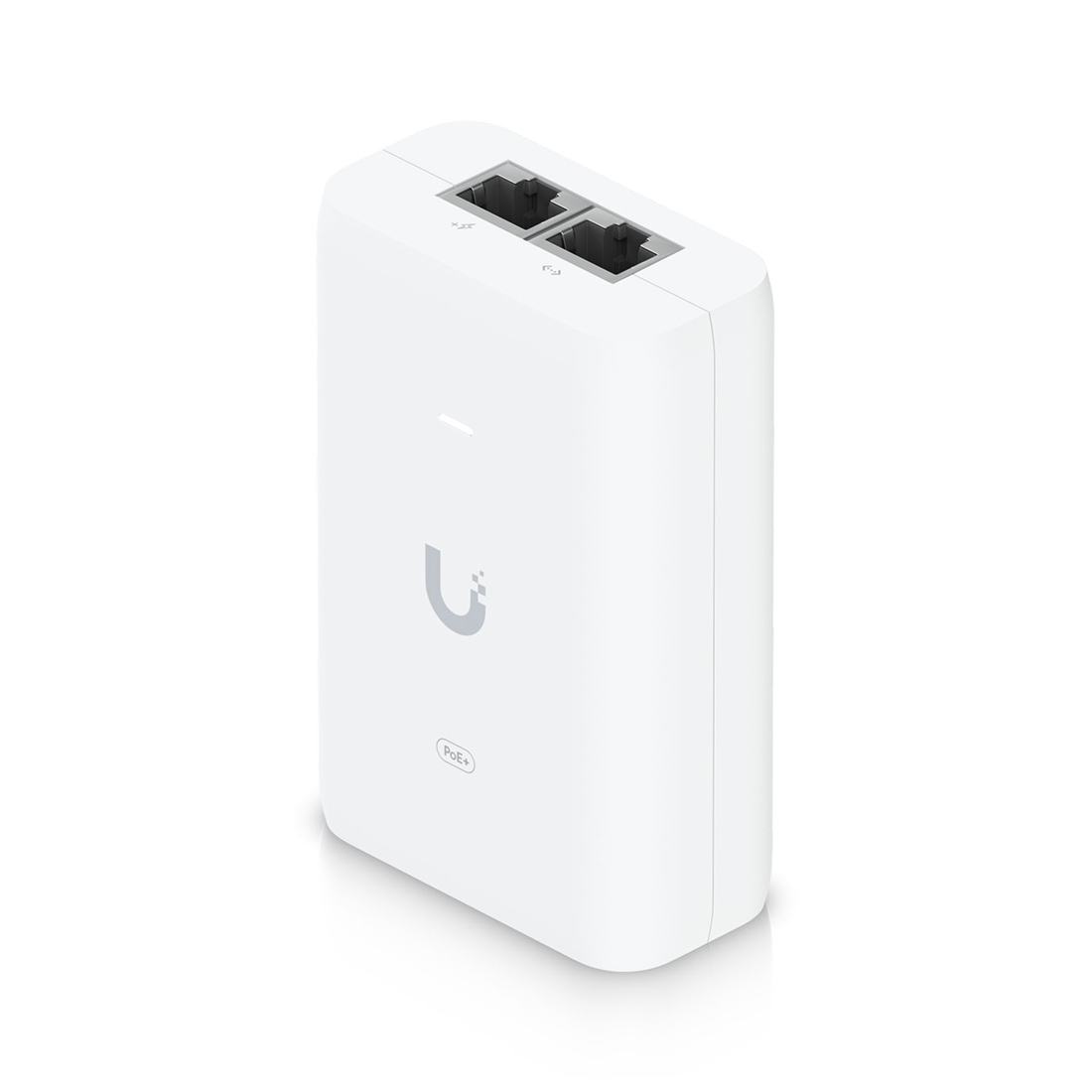

Ubiquiti PoE+ Adapter 30W (U-PoE+)

Specs

• Output Voltage: 48V DC @ 0.65A
• Rated Voltage: 100—240V AC @ 50/60Hz
• Gigabit LAN Port
• 2-pair Powering: Pins 4, 5 (+) and 7, 8 (-)
• AC Connector: IEC-320 C6
• Clamping Protection: 11V Data, 60V power
• Data In / PoE: RJ45 Shielded Socket
• Input Current: 0.75A Max.
• Inrush Current: <100A peak at 26°C
• Efficiency: 87%
• Switching Frequency: 70 kHz Max.
• Output Ripple: 1% Max.
• Line Regulation: ≤ 3%
• Load Regulation: ≤ 5%
• Max. Surge Discharge: 1500A (8/20 μs) power
• Peak Pulse Current: 36A (10/1000 μs) data
• Response Time: <1 ns
• Shunt Capacitance: <5 pF data
• Surge Protection: Difference and common mode
• Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
• Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity: 10 to 95% noncondensing
• NDAA Compliant
• Certifications: CE, FCC, IC, UL, CCC

Dimensions

• 3.7" x 2.4" x 1.4"
• 5.5 oz
