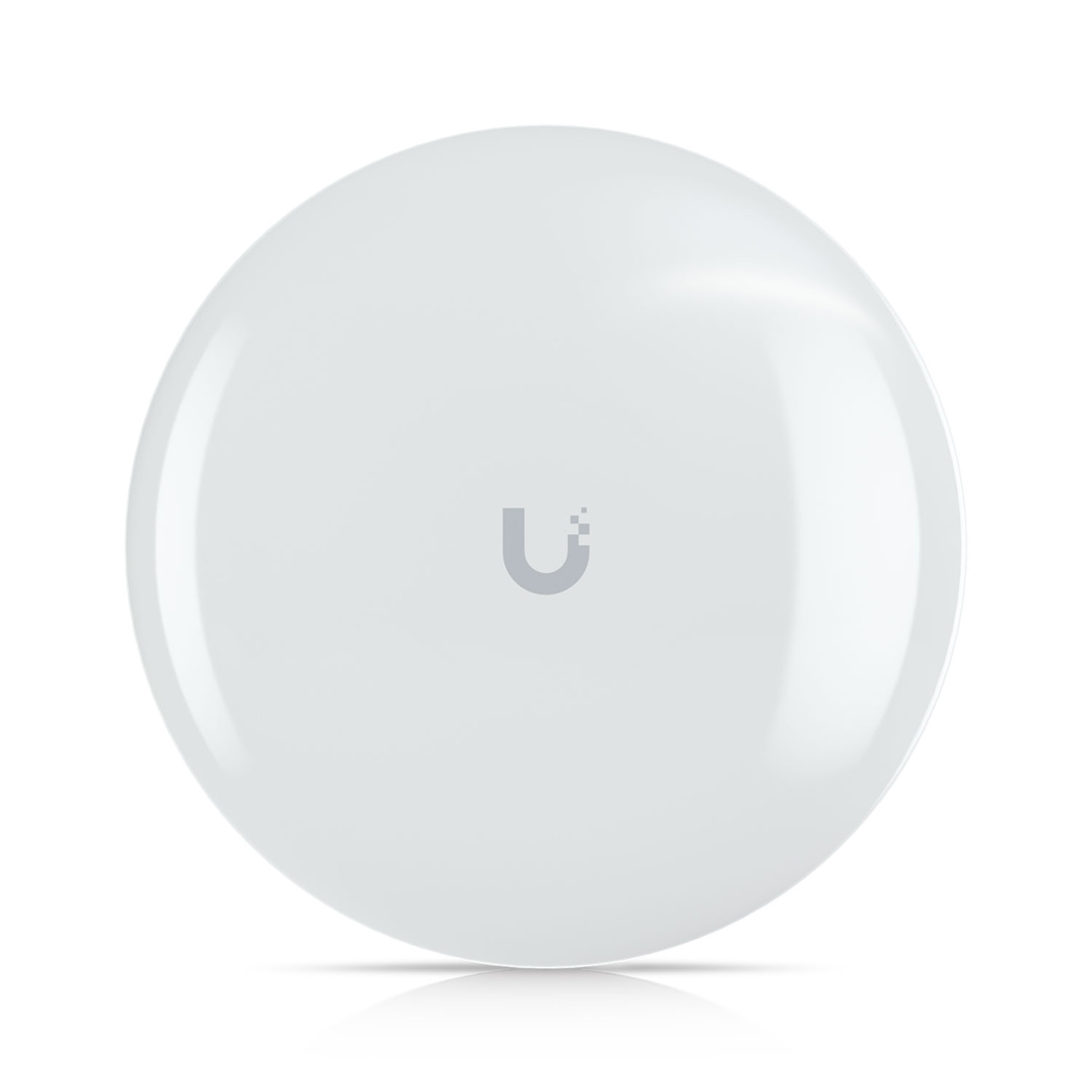

Ubiquiti Device Bridge Pro (UDB-Pro-US)

Ubiquiti Device Bridge Pro gives dealers a professional wireless bridge for extending network connectivity to cameras, access control, signage, and remote devices. Custom integrators can use it when a clean wireless link is faster than pulling cable.
MSRP: $199.00
Manufacturer: Ubiquiti
SKU: UDB-PRO-US

Specs

  • WiFi Standard: WiFi 5
  • Spatial Streams: 2
  • Coverage Area: 5 km (3.1 mi)
  • Mounting Locations: Wall, pole
  • Mounting: Pole (Included)
  • Weatherproofing: IPX6
  • Power Method: PoE | PoE+ (Required for PoE output)
  • Power Supply: 48V, 0.32A PoE adapter (Included)
  • 5 GHz MIMO: 2 x 2
  • 5 GHz Max. Data Rate: 867 Mbps (BW80)
  • 5 GHz Antenna Gain: 19 dBi
  • 5 GHz Max. TX Power: 25 dBm
  • Max. Conducted TX Power: 25 dBm (Combined)
  • Supported Data Rates: 802.11ac (WiFi 5) - 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) | 802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | 802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • Wireless Security: WPA2 AES
  • Max. Power Consumption: 9W
  • Supported Voltage Range: 42.5—57V DC
  • Networking Interface: (2) GbE RJ45 ports
  • Antennas: Internal
  • Management: (1) PoE in (PoE output not used) | (1) Passive PoE output
  • Channel Bandwidth: 20/40/80 (MHz)
  • Wind Loading: 69 N at 200 km/h (15.5 lbf at 125 mph)
  • Enclosure Material: UV-resistant polycarbonate
  • Mount Material: UV-stabilized polycarbonate, stainless steel
  • Button: (1) Factory-reset
  • NDAA Compliant
  • Certifications: CE, FCC, IC
  • Operating Frequency: US/CA: U-NII-1 5150 - 5250 MHz, U-NII-2A 5250 - 5350 MHz, U-NII-2C 5470 - 5725 MHz, U-NII-3 5725 - 5850 MHz | Worldwide: 5150 - 5875 MHz
  • Ambient Operating Temperature: -40 to 60° C (-40 to 140° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing

Dimensions

  • Ø7.4" x 2.5"
  • Pole Mount Diameter: 0.8–2.1"
  • Device: 0.95 lbs
  • With mount: 1.1 lbs
