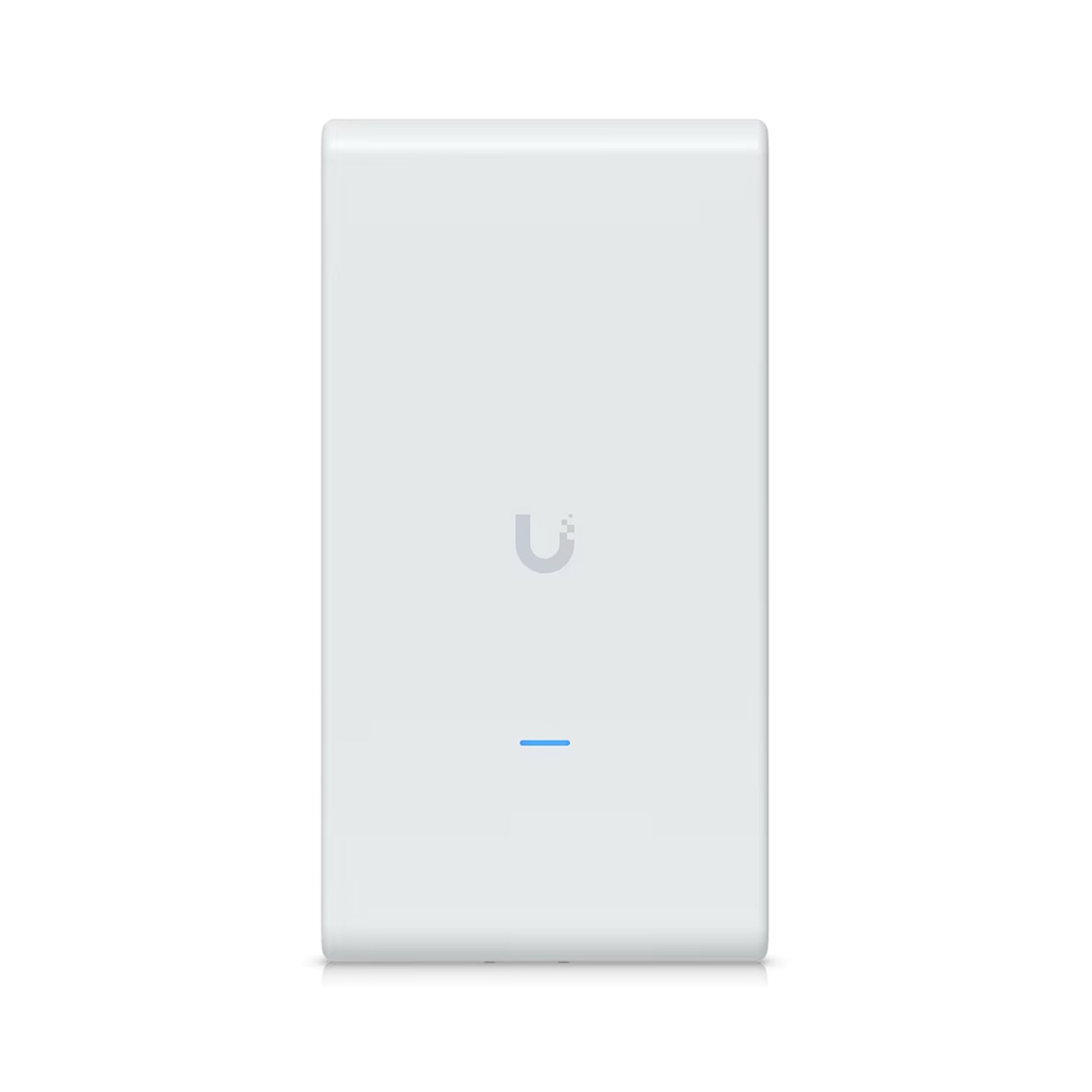

Ubiquiti U6 Mesh Pro Access Point (U6-Mesh-Pro-US)

Ubiquiti U6 Mesh Pro UniFi Wi-Fi 6 access point gives custom integrators flexible indoor or outdoor wireless coverage with an integrated antenna design. Dealers can use it for patios, exterior zones, and projects where ceiling-mount APs are not the best fit.
MSRP: $199.00
Manufacturer: Ubiquiti
SKU: U6-MESH-PRO-US

Specs

  • WiFi Standard: WiFi 6
  • Spatial Streams: 4
  • Coverage Area: 185 m² (2,000 ft²)
  • Max. Client Count: 250+
  • Uplink: GbE
  • Mounting: Wall, Pole (Mounts Included)
  • Weatherproofing: IPX6
  • Power Method: PoE
  • 5 GHz MIMO: 2 x 2 (DL/UL MU MIMO)
  • 2.4 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 5 GHz Max. Data Rate: 2.4 Gbps (BW160)
  • 2.4 GHz Max. Data Rate: 573.5 Mbps (BW40)
  • 5 GHz Antenna Gain: 8 dBi
  • 2.4 GHz Antenna Gain: 8 dBi
  • 5 GHz Max. TX Power: 27 dBm
  • 2.4 GHz Max. TX Power: 22 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates: 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
  • Captive Hotspot Portal: Custom Branding Landing Page | Voucher Authentication | Payment-Based Authentication | External Portal Server Support | Password Authentication | Guest Network Isolation
  • Max. Power Consumption: 9W
  • Supported Voltage Range: 42.5—57V DC
  • Networking Interface: (2) GbE RJ45 ports
  • Management: Ethernet, WiFi
  • Enclosure Material: UV-stabilized polycarbonate
  • Mount Material: Aluminum alloy, steel
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
  • NDAA Compliant
  • Certifications: CE, FCC, IC, Anatel: 06377-24-08356
  • Operating Frequency: US/CA: 2400 - 2472 MHz, U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz | Worldwide: 2400 - 2483.5 MHz, 5150 - 5725 MHz
  • Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing

Dimensions

  • 13.5" x 7.1" x 2.4"
  • Pole Mount Diameter: 1 - 2.5"
  • 1.8 lbs
