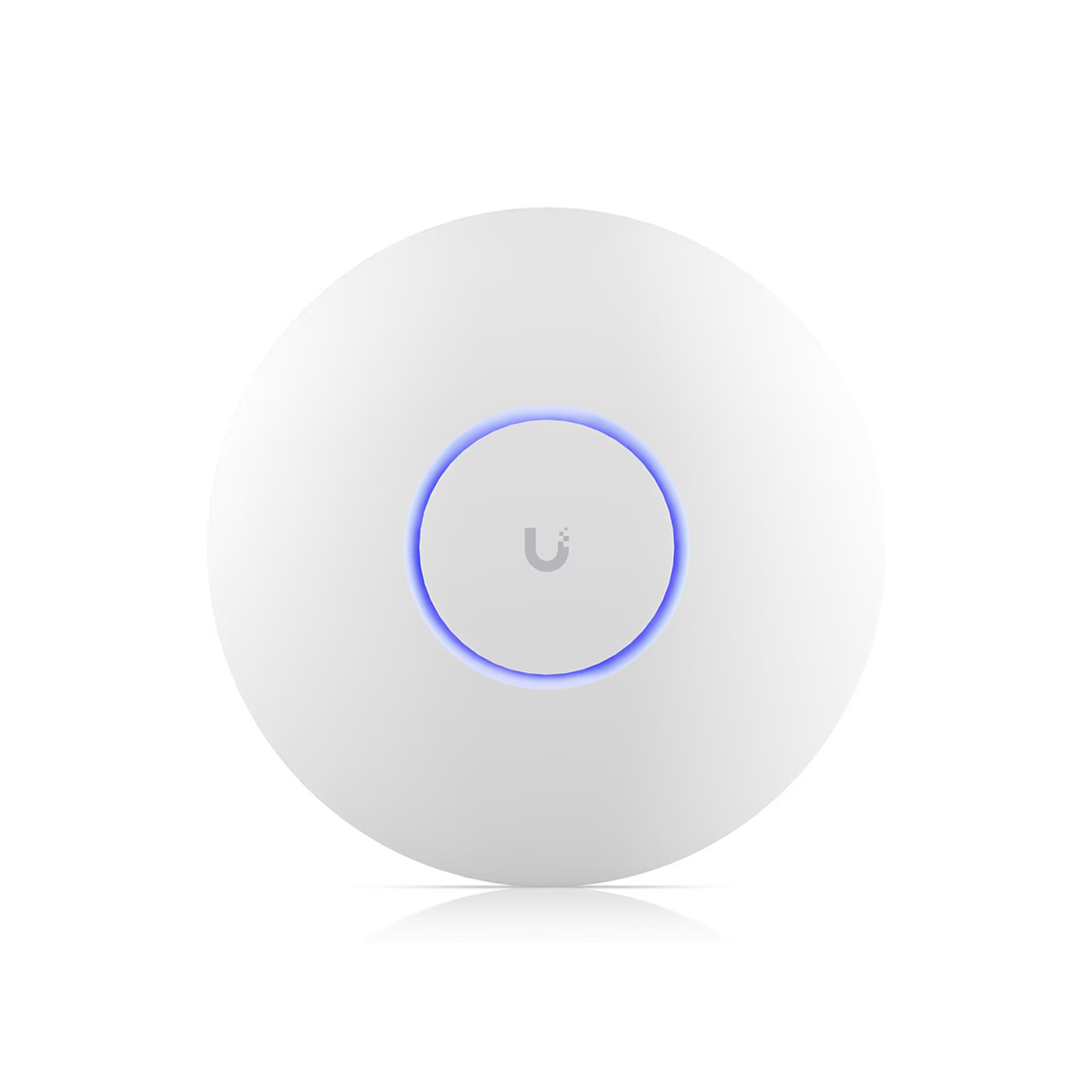

Ubiquiti U6 Pro Ceiling-mount WiFi 6 AP (U6-Pro-US)

Ubiquiti U6 Pro UniFi Wi-Fi 6 access point gives custom integrators a strong ceiling-mount AP for high-performance residential and commercial networks. Provides great coverage for larger homes, offices, and client-heavy spaces that need reliable dual-band Wi-Fi.
MSRP: $159.00
Manufacturer: Ubiquiti
SKU: U6-PRO-US

Specs

  • WiFi Standard: WiFi 6
  • Spatial Streams: 6
  • Coverage Area: 140 m² (1,500 ft²)
  • Max. Client Count: 250+
  • Uplink: GbE
  • Mounting: Ceiling, Wall (Pro Mount Included)
  • Weatherproofing: IP54
  • Power Method: PoE
  • 5 GHz MIMO: 4 x 4 (DL/UL MU-MIMO)
  • 2.4 GHz MIMO: 2 x 2 (UL MU-MIMO)
  • 5 GHz Max. Data Rate: 4.8 Gbps (BW160)
  • 2.4 GHz Max. Data Rate: 573.5 Mbps (BW40)
  • 5 GHz Antenna Gain: 6 dBi
  • 2.4 GHz Antenna Gain: 4 dBi
  • 5 GHz Max. TX Power: 26 dBm
  • 2.4 GHz Max. TX Power: 22 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates: 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) | 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) | 802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
  • Max. Power Consumption: 13W
  • Supported Voltage Range: 44—57V DC
  • Networking Interface: (1) GbE RJ45 port
  • Management: Ethernet, Bluetooth
  • Enclosure Material: Polycarbonate
  • Mount Material: Stainless steel (SUS304)
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
  • NDAA Compliant
  • Certifications: CE, FCC, IC, SRRC, Anatel: 00910-22-08356
  • Operating Frequency: US/CA: 2400 - 2472 MHz, U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz | Worldwide: 2400 - 2483.5 MHz, 5150 - 5725 MHz
  • Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing

Dimensions

  • Ø7.8 x 1.4"
  • 1.3 lbs
  • With mount: 1.6"
