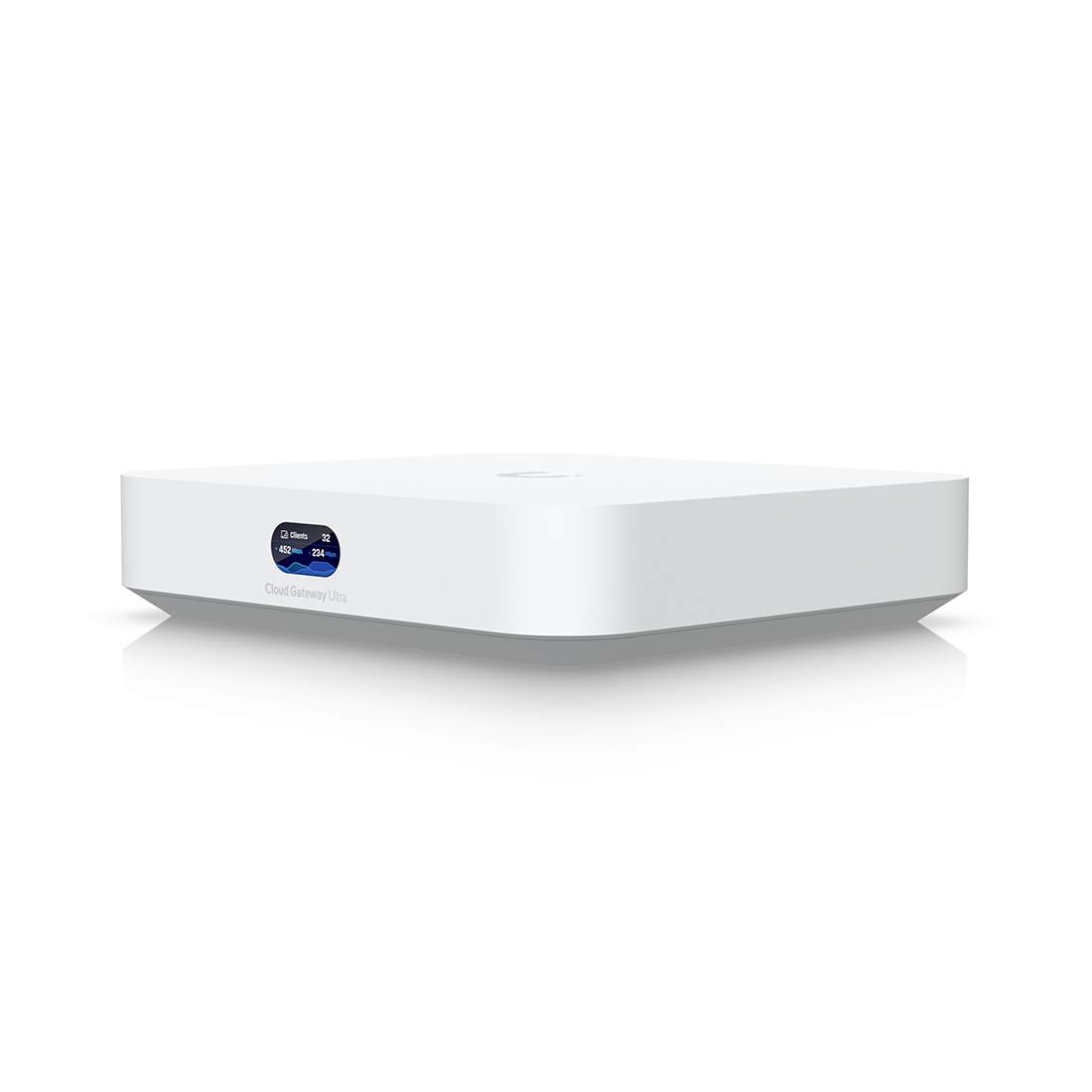

Ubiquiti Cloud Gateway Ultra (UCG-Ultra)

Name: Ubiquiti Cloud Gateway Ultra (UCG-Ultra)
SKU: UCG-ULTRA
Availability: InStock

MSRP: $149.00

Manufacturer: Ubiquiti

SKU: UCG-ULTRA

Overview
Specifications

Features

Runs UniFi network for full-stack network management
0.96" Information display
30+ UniFi device support
300+ client support
multi-WAN load balancing

Specs

UniFi Application Suite: Network
Managed UniFi Devices: 30+
Simultaneous Users Connected: 300+
Max. WAN Port Count: 4
Default WAN Ports: (1) 2.5 GbE RJ45
1 GbE RJ45 Ports: 4 | (1G/100M/10M)
2.5 GbE RJ45 Port: 1 | (2.5G/1G/100M/10M)
IDS/IPS Throughput: 1 Gbps
Form Factor: Compact desktop
Security: Stateful Firewall | Application-Aware Layer 7 Firewall | DPI & Traffic Identification | Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Content Filtering | Intrusion Prevention (IPS/IDS) | Ad Blocking | VLAN/Subnet-based Traffic
Segmentation
IDS/IPS Signatures: 55,000+ with CyberSecure
License-Free SD-WAN
Site-to-Site VPN: Site Magic | IPsec | OpenVPN
VPN Server: Identity Endpoint One-Click VPN | Teleport Zero-Configuration VPN | WireGuard | OpenVPN | L2TP
VPN Client: OpenVPN | WireGuard
Networking: Multi-WAN Load Balancing | Advanced QoS | Multicast DNS (mDNS) | Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Integrated RADIUS Server | RADIUS over TLS (RadSec) | Additional Internet Failover with UniFi LTE Backup | Internet Quality and Outage Reporting | Policy-based WAN and VPN Routing | Customizable DHCP Server | IPv6 ISP Support | IGMP Proxy
Dynamic Routing: OSPF
MAC Address Table Size: 2,000
Max. Power Consumption: 6.2W
Power Method: USB type C (5V DC/3A)
Power Supply: USB type C (5V DC/3A) (Adapter included)
Supported Voltage Range: 100—240V AC
Heat Dissipation: 21 BTU/hr
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory: 3 GB
On-board Storage: 16 GB
Enclosure Material: Polycarbonate
LCM Display: 0.96" status display
Management: Ethernet | Bluetooth
Button: (1) Factory-reset
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant
Certifications: CE, FCC, IC, Anatel: 04653-24-08356, SRRC
