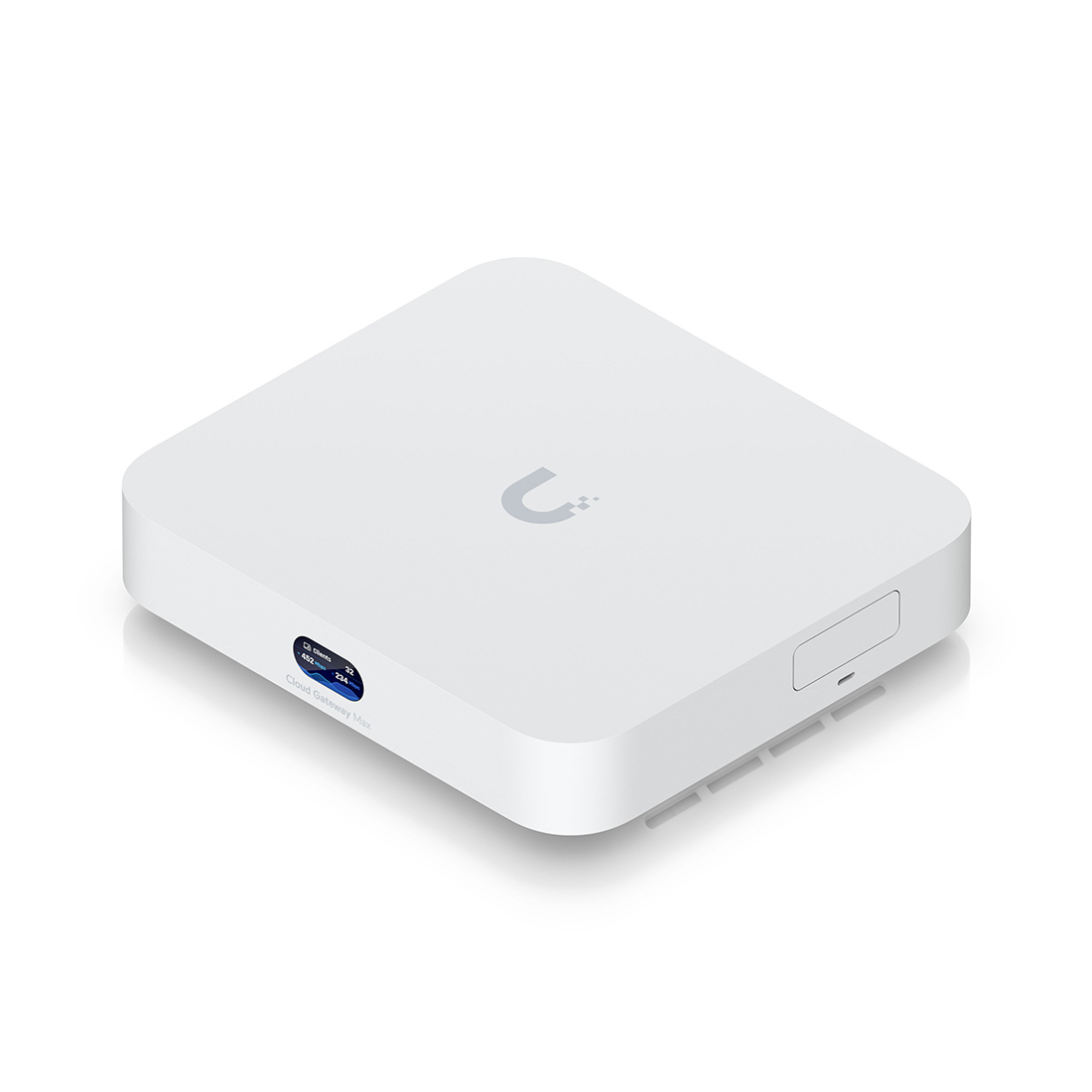

Ubiquiti Cloud Gateway Max (UCG-Max)

Ubiquiti Cloud Gateway Max UCG-MAX is a compact 2.5G UniFi Cloud Gateway for residential and small-to-medium commercial networks. Multi-WAN support, security routing, full UniFi application management, and selectable NVR storage simplify professional deployments.
MSRP: $279.00
Manufacturer: Ubiquiti
SKU: UCG-MAX

Features

  • Full UniFi application support
  • 0.96" Information display
  • Built in 512 GB storage
  • Selectable NVMe SSD storage up to 2 TB for NVR

Specs

  • UniFi Application Suite: Network | Protect | Access | Talk | Connect
  • Managed UniFi Devices: 30+
  • Managed Cameras: (15) HD | (8) 2K | (5) 4K
  • Managed Access Hubs: 50
  • Simultaneous Users Connected: 300+
  • Max. WAN Port Count: 4
  • Default WAN Ports: (1) 2.5 GbE RJ45
  • 2.5 GbE RJ45 Ports: 5 | (2.5G/1G/100M/10M)
  • IDS/IPS Throughput: 2.3 Gbps
  • Form Factor: Compact desktop
  • Security: Stateful Firewall | Application-Aware Layer 7 Firewall | DPI & Traffic Identification | Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Content Filtering | Intrusion Prevention (IPS/IDS) | Ad Blocking | VLAN/Subnet-based Traffic Segmentation
  • IDS/IPS Signatures: 55,000+ with CyberSecure
  • License-Free SD-WAN
  • Site-to-Site VPN: Site Magic | IPsec | OpenVPN
  • VPN Server: Identity Endpoint One-Click VPN | Teleport Zero-Configuration VPN | WireGuard | OpenVPN | L2TP
  • VPN Client: OpenVPN | WireGuard
  • Networking: Multi-WAN Load Balancing | Advanced QoS | Multicast DNS (mDNS) | Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Integrated RADIUS Server | RADIUS over TLS (RadSec) | Additional Internet Failover with UniFi LTE Backup | Internet Quality and Outage Reporting | Policy-based WAN and VPN Routing | Customizable DHCP Server | IPv6 ISP Support | IGMP Protection
  • Dynamic Routing: OSPF
  • MAC Address Table Size: 2,000
  • Built in storage: 512 GB
  • NVR Storage: Selectable NVMe SSD up to 2 TB
  • Max. Power Consumption: 16.1W (Excluding PoE output)
  • Power Method: USB type C (5V DC/5A)
  • Power Supply: USB type C (5V DC/5A) (Adapter included)
  • Supported Voltage Range: 100—240V AC
  • Heat Dissipation: 55 BTU/hr
  • Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
  • System Memory: 3 GB
  • Enclosure Material: Polycarbonate
  • LCM Display: 0.96" status display
  • Management: Ethernet | Bluetooth
  • Button: (1) Factory-reset
  • ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
  • Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • NDAA Compliant
  • Certifications: CE, FCC, IC, Anatel: 09004-24-08356, SRRC

Dimensions

  • 5.6" x 5" x 1.2"
  • 1 lb Without SSD
  • 1.1 lbs With SSD

Features

  • Full UniFi application support
  • 0.96" Information display
  • Built in 512 GB storage
  • Selectable NVMe SSD storage up to 2 TB for NVR
