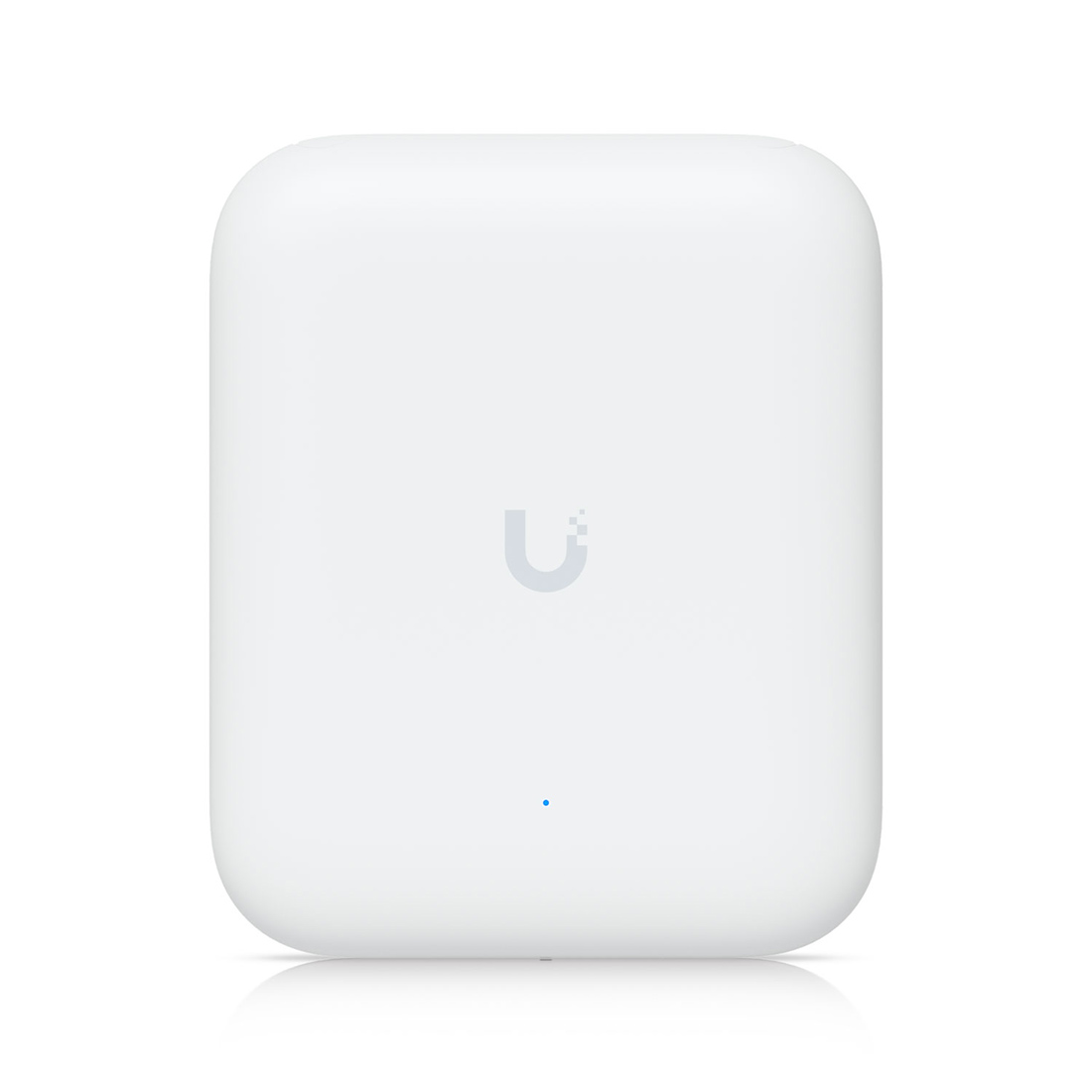

Ubiquiti U7 Outdoor WiFi 7 AP (U7-Outdoor-US)

Name: Ubiquiti U7 Outdoor WiFi 7 AP (U7-Outdoor-US)
SKU: U7-OUTDOOR-US
Availability: InStock

MSRP: $199.00

Manufacturer: Ubiquiti

SKU: U7-OUTDOOR-US

Specifications

Specs

WiFi Standard: WiFi 7
Spatial Streams: 4
Coverage Area: 465 m² (5,000 ft²)
Max. Client Count: 250+
Uplink: 2.5 GbE
Mounting: Wall, Pole (Mounts Included)
Weatherproofing: IPX6
Power Method: PoE+
5 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
5 GHz Max. Data Rate: 4.3 Gbps (BW240)
2.4 GHz Max. Data Rate: 688 Mbps (BW40)
5 GHz Antenna Gain: Directional internal: 12.5 dBi, 45° x 45° | External omni: 4 dBi, 360° x 30°
2.4 GHz Antenna Gain: Directional internal: 8 dBi, 90° x 90° | External omni: 3 dBi, 360° x 30°
5 GHz Max. TX Power: 26 dBm
2.4 GHz Max. TX Power: 23 dBm
Max. BSSIDs: 8 per Radio
Supported Data Rates: 802.11be (WiFi 7) - 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) | 802.11ax (WiFi 6) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | 802.11ac (WiFi 5) - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | 802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Captive Hotspot Portal: Custom Branding Landing Page | Voucher Authentication | Payment-Based Authentication | External Portal Server Support | Password Authentication | Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Max. Power Consumption: 19W
Supported Voltage Range: 42.5—57V DC
Networking Interface: (1) 1/2.5 GbE RJ45 port
Wind Loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
Antennas: (1) Directional internal antenna | (2) External omni antennas | (2) RP-SMA connectors for external antenna
Antenna beamwidth: 5 GHz - 45° | 2.4 GHz - 90°
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
Mount Material: Polycarbonate, SGCC steel
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
NDAA Compliant
Certifications: CE, FCC, IC, Anatel: 08999-24-08356
Operating Frequency: US/CA: 2400 - 2472 MHz, U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz | Worldwide: 2400 - 2483.5 MHz, 5150 - 5725 MHz
Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
Ambient Operating Humidity: 5 to 95% noncondensing
