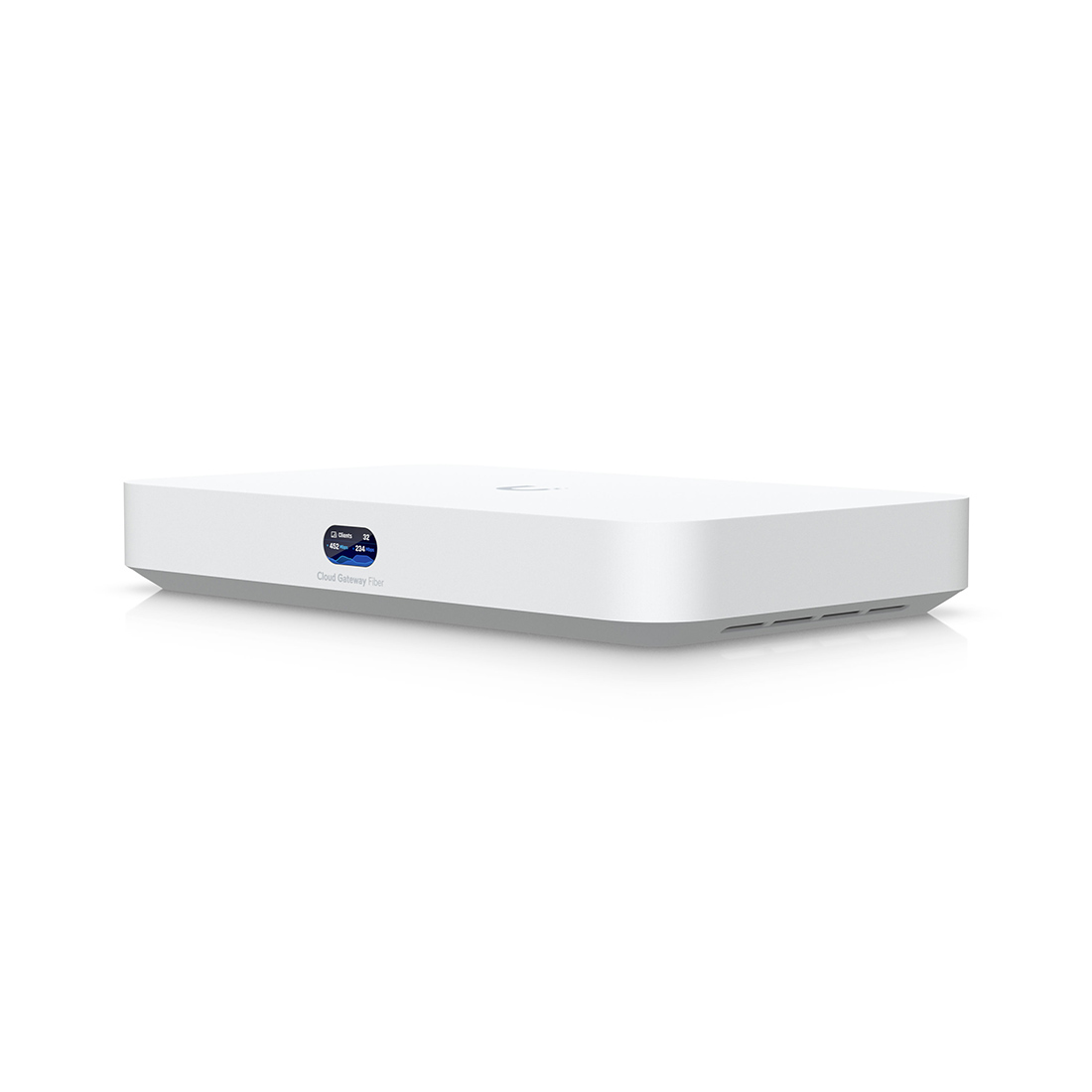

Ubiquiti Cloud Gateway Fiber (UCG-Fiber)

Name: Ubiquiti Cloud Gateway Fiber (UCG-Fiber)
SKU: UCG-FIBER
Availability: InStock

Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.

MSRP: $279.00

Manufacturer: Ubiquiti

SKU: UCG-FIBER

Overview
Specifications

Features

Full UniFi application support
500+ Client capacity
0.96"" Information display
Selectable NVMe SSD storage up to 2 TB for NVR

Specs

UniFi Application Suite: Network | Protect | Access | Talk | Connect
Managed UniFi Devices: 50+
Managed Cameras: (15) HD | (8) 2K | (5) 4K
Managed Access Hubs: 50
Simultaneous Users Connected: 500+
Max. WAN Port Count: 6
Default WAN Ports: (1) 10G SFP+ | (1) 10 GbE RJ45
2.5 GbE RJ45 Ports: 4 | (2.5G/1G/100M/10M)
10 GbE RJ45 Port: 1 | (10G/2.5G/1G)
10G SFP+ Ports: 2 | (10G/1G)
IDS/IPS Throughput: 5 Gbps
Form Factor: Compact desktop
Security: Stateful Firewall | Application-Aware Layer 7 Firewall | DPI & Traffic Identification | Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Content Filtering | Intrusion Prevention (IPS/IDS) | Ad Blocking | VLAN/Subnet-based Traffic Segmentation
IDS/IPS Signatures: 55,000+ with CyberSecure
License-Free SD-WAN
Site-to-Site VPN: Site Magic | IPsec | OpenVPN
VPN Server: Identity Endpoint One-Click VPN | Teleport Zero-Configuration VPN | WireGuard | OpenVPN | L2TP
VPN Client: OpenVPN | WireGuard
Networking: Multi-WAN Load Balancing | Advanced QoS | Multicast DNS (mDNS) | Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Integrated RADIUS Server | RADIUS over TLS (RadSec) | Additional Internet Failover with UniFi LTE Backup | Internet Quality and Outage Reporting
Dynamic Routing: OSPF
MAC Address Table Size: 4,000
NVR Storage: Selectable NVMe SSD up to 2 TB
PoE Budget: 30W
Voltage Range PoE Mode: 50-57V
Max. Power Consumption: 29.4W (Excluding PoE output)
Power Method: DC jack (54V DC/1.1A)
Power Supply: 54V DC/1.1A | (Adapter included)
Supported Voltage Range: 100—240V AC
Heat Dissipation: 100 BTU/hr (Excluding PoE Output)
Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory: 3 GB
Enclosure Material: Polycarbonate
LCM Display: 0.96" status display
Management: Ethernet | Bluetooth
Button: (1) Factory-reset
ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant
Certifications: CE, FCC, IC, SRRC, Anatel: 04395-25-08356

Dimensions

8.3" x 5" x 0.5"
1.5 lbs Without SSD
1.6 lbs With SSD

Features

Full UniFi application support
500+ Client capacity
0.96"" Information display
Selectable NVMe SSD storage up to 2 TB for NVR
