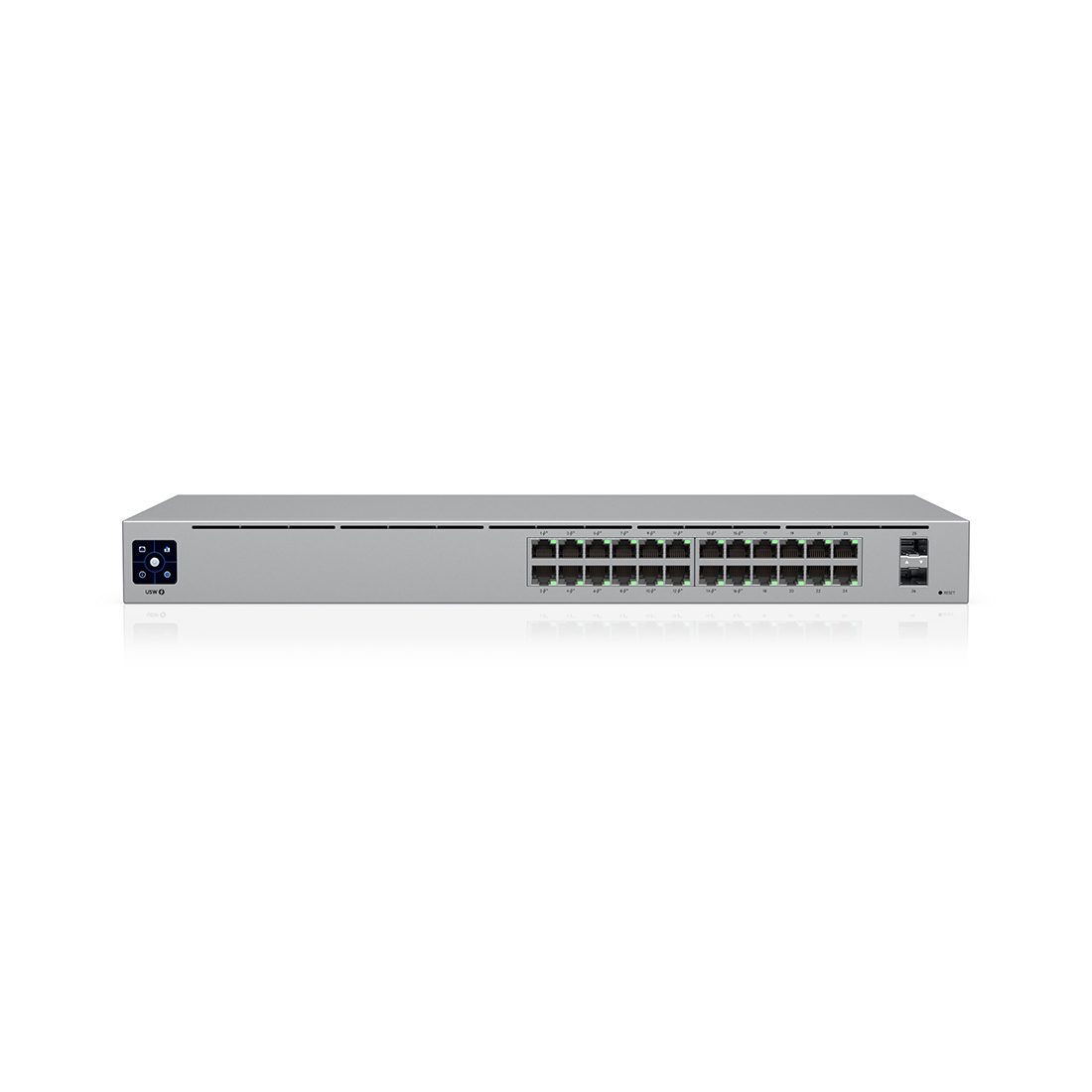

Ubiquiti Standard 24-Port PoE (USW-24-POE)

Name: Ubiquiti Standard 24-Port PoE (USW-24-POE)
SKU: USW-24-POE
Availability: InStock

MSRP: $379.00

Manufacturer: Ubiquiti

SKU: USW-24-POE

Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)

C6T

Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)

MSRP: $46.99

CS-CRIMPTOOL

Ethereal Dual Modular Crimping Tool

MSRP: $42.99

NPC-6203

Quest 3' Cat 6 Patch Cable Booted (blue)

MSRP: $3.43

Overview

Port Layout - 1 GbE RJ45: 24 (16 PoE+) (1G/100M/10M)
Port Layout - 1G SFP: 2 (1G)
Max. PoE Output: Up to PoE+
Total PoE Availability: 95W
Form Factor: Rack mount (1U)
Switching Capacity: 52 Gbps
Total Non-Blocking Throughput: 26 Gbps
Forwarding Rate: 39 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 8,000
Packet Buffer Size: 0.5 MB
Access Lists: IPv4 128 | MAC 128
PoE Ports: 16 PoE+
Max. PoE Wattage per Port by PSE: PoE 15.4W | PoE+ 32W
Max. Power Consumption: 25W (Excluding PoE Output) | 120W (Including PoE Output)
Power Method: Universal input, 100—240V AC, 50/60 Hz
Power Input Method: AC input
Power Supply: AC/DC, internal, 120W
Supported Voltage Range: 100—240V AC
Management: Ethernet | AR
Heat Dissipation: 85.3 BTU/hr
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 400~1200 mm (15.7-47.2")
LCM Display: 1.3" touchscreen
ESD Protection: Air ± 16kV | Contact ± 12kV
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: Yes
Certifications: CE | FCC | IC | Anatel 00593-21-08356
Software Application Requirements: UniFi Network Vers. 7.2.94 and later
