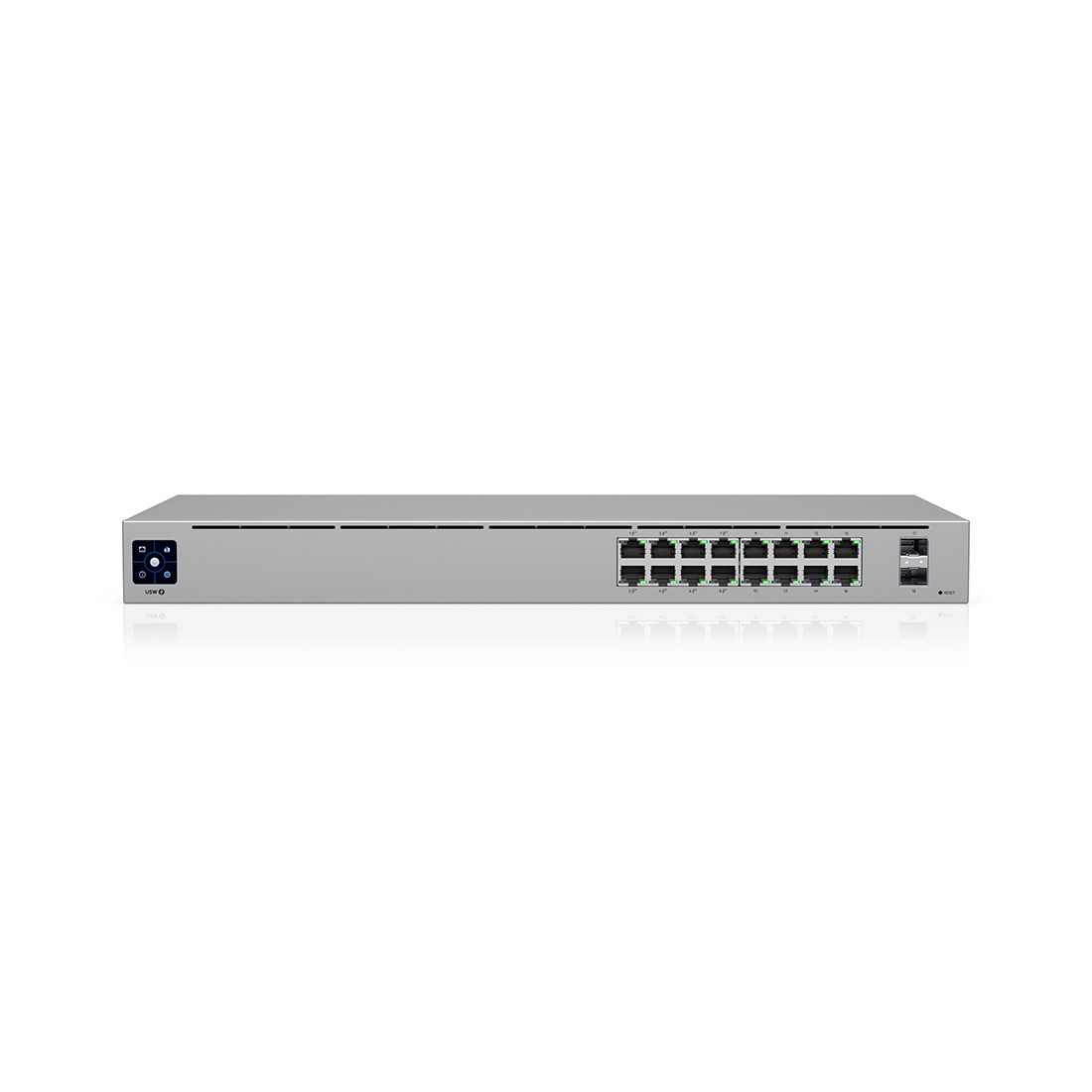

Ubiquiti Standard 16-Port PoE (USW-16-POE)

Name: Ubiquiti Standard 16-Port PoE (USW-16-POE)
SKU: USW-16-POE
Availability: InStock

MSRP: $299.00

Manufacturer: Ubiquiti

SKU: USW-16-POE

Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)

C6T

Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)

MSRP: $46.99

Ethereal Dual Modular Crimping Tool

CS-CRIMPTOOL

Ethereal Dual Modular Crimping Tool

MSRP: $42.99

Quest 3' Cat 6 Patch Cable Booted (blue)

NPC-6203

Quest 3' Cat 6 Patch Cable Booted (blue)

MSRP: $3.43

Overview
Specifications

Overview

UniFi 16-Port PoE Switch
(8) Gigabit RJ45 ports with 802.3af/at
(8) Gigabit RJ45 ports
(2) 1G SFP ports
1U Rackmountable (hardware included)

Special Order Only

Specs

Port Layout - 1 GbE RJ45: 16 (8 PoE+) (1G/100M/10M)
Port Layout - 1G SFP: 2 (1G)
Max. PoE Output: Up to PoE+
Total PoE Availability: 42W
Form Factor: Rack mount (1U)
Switching Capacity: 36 Gbps
Total Non-Blocking Throughput: 18 Gbps
Forwarding Rate: 27 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 8,000
Packet Buffer Size: 0.5 MB
Access Lists: IPv4 128 | MAC 128
PoE Ports: 8 PoE+
Max. PoE Wattage per Port by PSE: PoE 15.4W | PoE+ 32W
Max. Power Consumption: 18W (Excluding PoE Output) | 60W (Including PoE Output)
Power Method: Universal input, 100—240V AC, 50/60 Hz
Power Input Method: AC input
Power Supply: AC/DC, internal, 60W
Supported Voltage Range: 100—240V AC
Management: Ethernet | AR
Heat Dissipation: 61.4 BTU/hr
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 400~1200 mm (15.7-47.2")
LCM Display: 1.3" touchscreen
ESD Protection: Air ± 16kV | Contact ± 12kV
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: Yes
Certifications: CE | FCC | IC | Anatel 00593-21-08356
Software Application Requirements: UniFi Network Vers. 7.2.94 and later

Dimensions

Size (W x D x H): 442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
Weight without mounting brackets: 2.8 kg (6.2 lb)
Weight with mounting brackets: 2.9 kg (6.4 lb)

Overview

UniFi 16-Port PoE Switch
(8) Gigabit RJ45 ports with 802.3af/at
(8) Gigabit RJ45 ports
(2) 1G SFP ports
1U Rackmountable (hardware included)

Special Order Only
