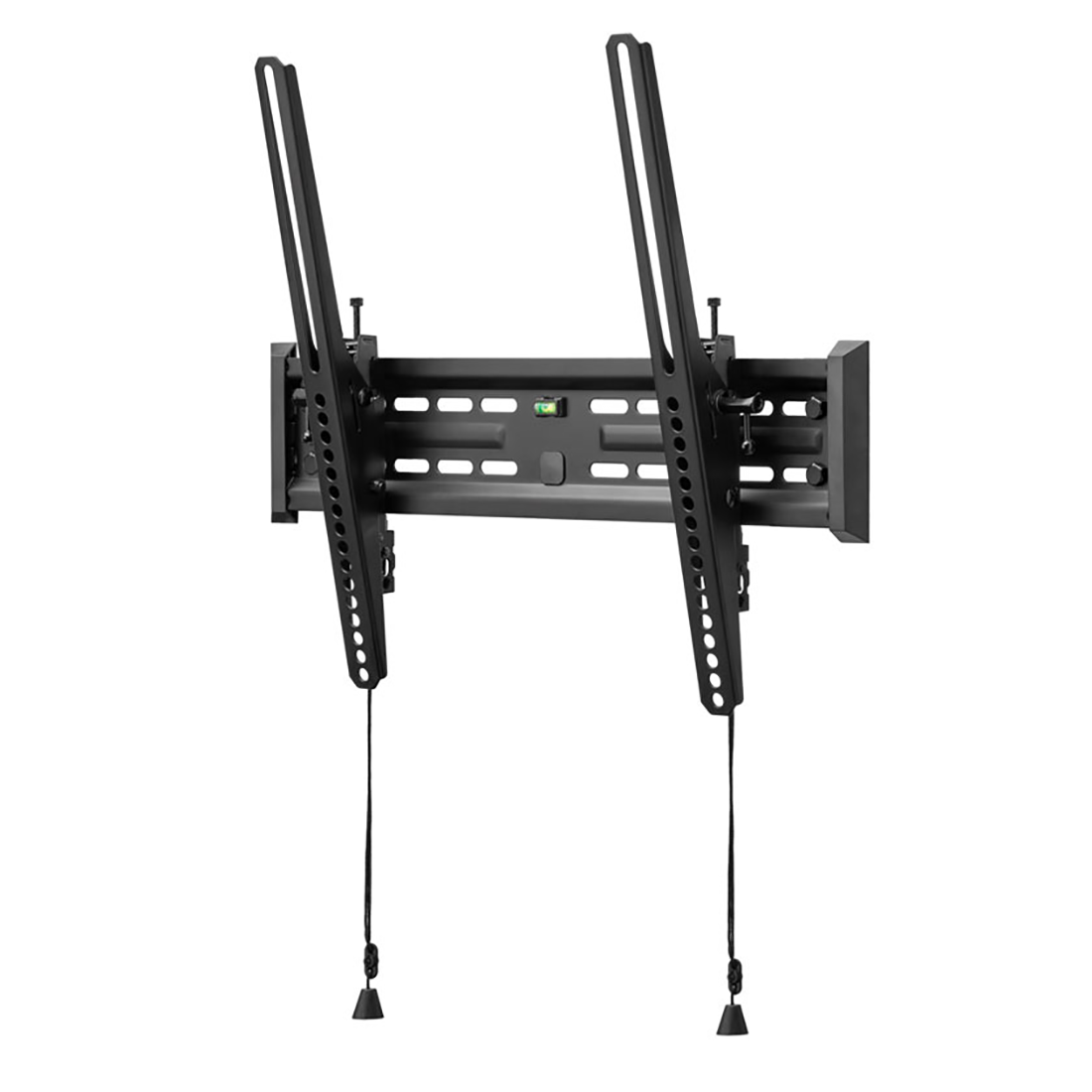

Red Atom 24"-60" Tilt Wall Mount Post-Leveling Adjustable

Name: Red Atom 24"-60" Tilt Wall Mount Post-Leveling Adjustable
SKU: REDLTHD120P
Availability: InStock

Red Atom mounts are loaded with features- making your installations easier and safe for your customers. Lateral sliding of the mounting arms offers flexibility to center TVs when stud locations aren't ideal. Correct mistakes or adjust the installation to unlevel wall lines using post installation leveling screws. In addition to having secure attachments to the wall, the fixed mounts feature spring locking mechanisms to lock the arms to the mount plate to prevent TV tip-overs.

MSRP: $214.62

Manufacturer: Red Atom

SKU: REDLTHD120P

Overview
Attachments

Overview

Post installation level adjustment with set screw: ±.5″
Screen size range: 24″–60″
Weight capacity 120 lb
Maximum mounting hole pattern: 400 x 400mm
Mounting profile: 1.89″
Tilt: +3° to -12°
Dual-stud (16″) installation
Vertical rails have 7mm hole located at the bottom for placement of padlock (sold separately) for additional theft security
TV Release toggles equipped with magnetic ends. Allows for quick concealment of toggle after install
Extra-long Allen wrench included for securing tilt position and post-leveling adjustments
5 year warranty

Product Files

SPEC SHEETS

REDLTHD120P Spec Sheet

MANUALS

REDLTHD120P Manual

Overview

Post installation level adjustment with set screw: ±.5″
Screen size range: 24″–60″
Weight capacity 120 lb
Maximum mounting hole pattern: 400 x 400mm
Mounting profile: 1.89″
Tilt: +3° to -12°
Dual-stud (16″) installation
Vertical rails have 7mm hole located at the bottom for placement of padlock (sold separately) for additional theft security
TV Release toggles equipped with magnetic ends. Allows for quick concealment of toggle after install
Extra-long Allen wrench included for securing tilt position and post-leveling adjustments
5 year warranty
