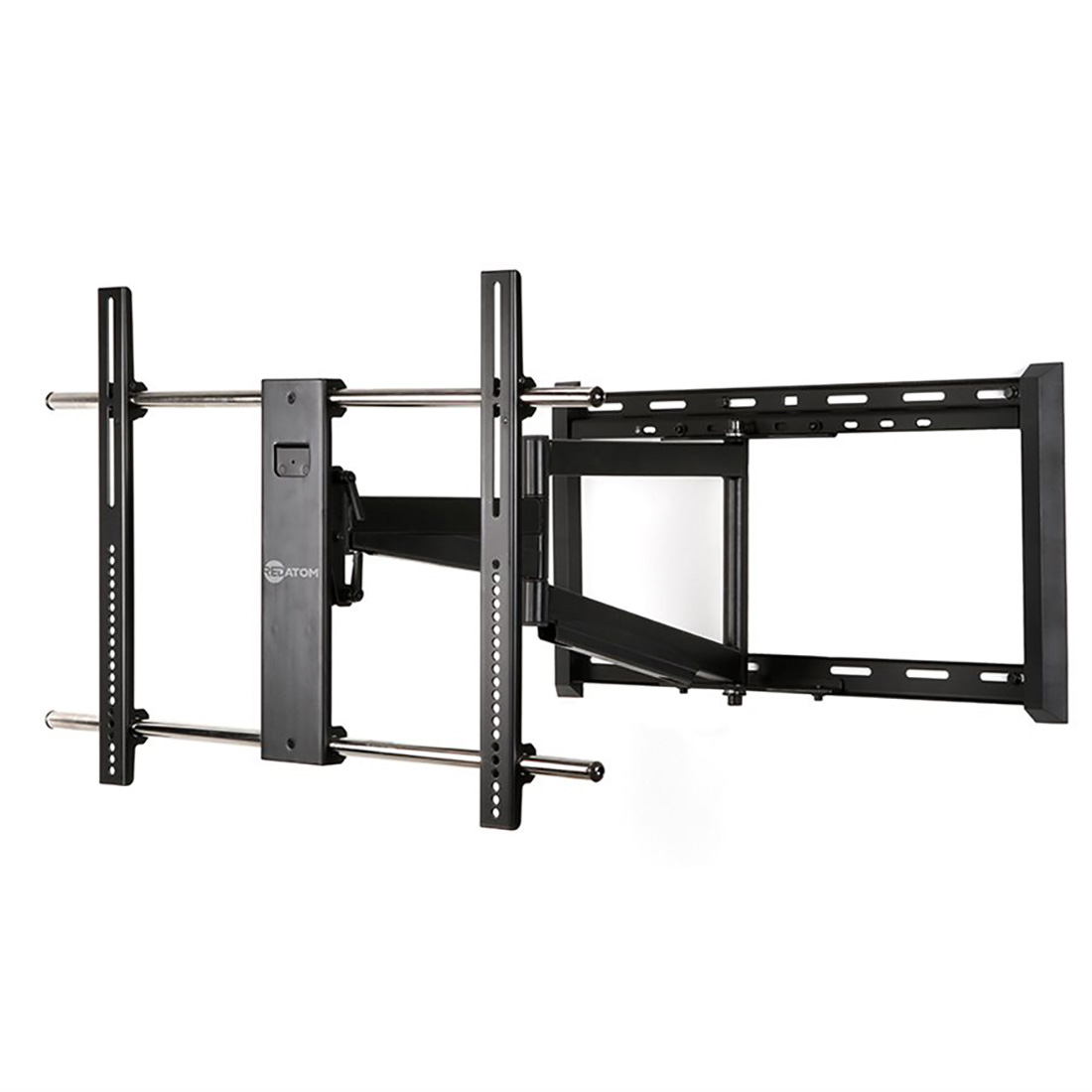

Red Atom 42"-85" Full-Motion Wall Mount (V3)

Name: Red Atom 42"-85" Full-Motion Wall Mount (V3)
SKU: REDXC150V3
Availability: InStock

The RED ATOM full-motion mount is perfect for mounting most 42 in. to 85 in. TV or Monitor to the wall. It has a slim mount profile of 0.78 in. and is easy to install and adjust.

MSRP: $397.54

Manufacturer: Red Atom

SKU: REDXC150V3

Overview
Specifications
Attachments

Features

8″ lateral adjustment of arm assembly on wall plate allows for improved centering of panel on wall
Ideal for corner mount installation
Easy Attach feature allows TV panel and universal adapter to be safely and quickly connected to mount
Open wall plate design for flexibility in cable management and power management
Wall mounting: 16″ or 24″ dual stud or solid wall attachment
Wall plate: 29.5″ (26.3″ without plastic end caps) heavy duty 2.5mm and 4.0mm hot rolled steel for added strength
UL Listed

Specs

Screen size range	42″–85″
Weight capacity	150 lb.
Maximum mounting hole pattern	700 x 500mm
Mounting profile	2″
Extends	30″ from wall
Tilt	+3° to -12° with two integrated ratchet levers
Roll/level	±3°, pre or post-install
Pan	88° (left/ right with 70″ panel)

Product Files

SPEC SHEETS

REDXC150V3 Spec Sheet

MANUALS

REDXC150V3 Manual

Features

8″ lateral adjustment of arm assembly on wall plate allows for improved centering of panel on wall
Ideal for corner mount installation
Easy Attach feature allows TV panel and universal adapter to be safely and quickly connected to mount
Open wall plate design for flexibility in cable management and power management
Wall mounting: 16″ or 24″ dual stud or solid wall attachment
Wall plate: 29.5″ (26.3″ without plastic end caps) heavy duty 2.5mm and 4.0mm hot rolled steel for added strength
UL Listed
