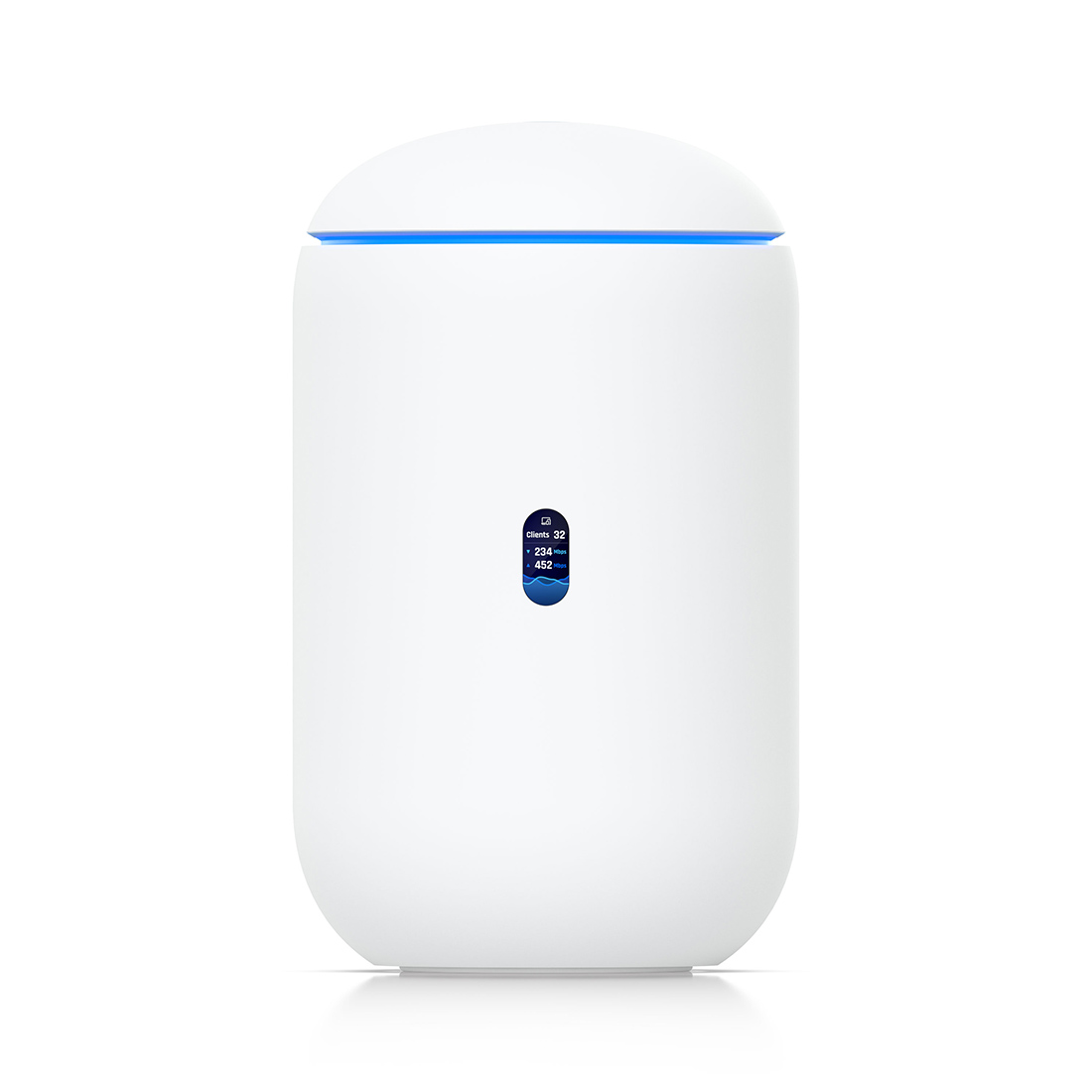

Ubiquiti Dream Router 7 Desktop 10G Cloud Gateway (UDR7-US)

Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
MSRP: $279.00
Manufacturer: Ubiquiti
SKU: UDR7-US

Features

  • 1,750 ft2 Coverage
  • 300+ Client capacity
  • WiFi 7 integration
  • PoE switch
  • microSD storage
  • Full UniFi application support

Specs

  • UniFi Application Suite: Network | Protect | Access | Talk | Connect
  • Managed UniFi Devices: 30+
  • Managed Cameras: (5) HD | (2) 2K | (1) 4K
  • Simultaneous Users Connected: 300+
  • Max. WAN Port Count: 4
  • Default WAN Ports: (1) 10G SFP+ | (1) 2.5 GbE RJ45
  • 2.5 GbE RJ45 Ports: 4 (1 PoE) | (2.5G/1G/100M/10M)
  • 10G SFP+ Port: 1 | (10G/1G)
  • IDS/IPS Throughput: 2.3 Gbps
  • Form Factor: Compact desktop
  • Coverage Area: 160 m² (1,750 ft²)
  • Security: Stateful Firewall | Application-Aware Layer 7 Firewall | DPI & Traffic Identification | Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Content Filtering | Intrusion Prevention (IPS/IDS) | Ad Blocking | VLAN/Subnet-based Traffic Segmentation
  • IDS/IPS Signatures: 20,000+ with CyberSecure
  • License-Free SD-WAN
  • Site-to-Site VPN: Site Magic | IPsec | OpenVPN
  • VPN Server: Identity Endpoint One-Click VPN | Teleport Zero-Configuration VPN | WireGuard | OpenVPN | L2TP
  • VPN Client: OpenVPN | WireGuard
  • Networking: Multi-WAN Load Balancing | Advanced QoS | Multicast DNS (mDNS) | Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Integrated RADIUS Server | RADIUS over TLS (RadSec) | Additional Internet Failover with UniFi LTE Backup | Internet Quality and Outage Reporting | Policy-based WAN and VPN Routing | Customizable DHCP Server | IPv6 ISP Support | IGMP Proxy
  • Dynamic Routing: OSPF
  • MAC Address Table Size: 2,000
  • WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
  • 6 GHz Throughput: 5.7 Gbps
  • 5 GHz Throughput: 4.3 Gbps
  • 2.4 GHz Throughput: 688 Mbps
  • 6 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 5 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 2.4 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 6 GHz Antenna Gain: 6 dBi
  • 5 GHz Antenna Gain: 7 dBi
  • 2.4 GHz Antenna Gain : 5 dBi
  • 6 GHz Max. TX Power: 24 dBm
  • 5 GHz Max. TX Power: 26 dBm
  • 2.4 GHz Max. TX Power: 23 dBm
  • Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
  • Max. BSSIDs: 4 per Radio
  • Supported Data Rates: 802.11be (WiFi 7) - 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) | 802.11ax (WiFi 6/6E) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | 802.11ac (WiFi 5) - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | 802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | 802.11g - 6, 9, 12, 18, 24, 36, 48, 54 Mbps | 802.11b - 1, 2, 5.5, 11 Mbps | 802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • NVR Storage: Pre-installed 64GB microSD for NVR
  • Expansion Slot: MicroSD Card
  • PoE Budget: 15.4W
  • Max. PoE Wattage per Port by PSE: PoE - 15.4W
  • Voltage Range PoE Mode: 44-57V
  • Max. Power Consumption: 26W (Excluding PoE output)
  • Power Method: Universal AC input, 100—240VAC, 1.5A Max, 50/60 Hz
  • Power Supply: AC/DC, Internal, 50W
  • Supported Voltage Range: 100—240V AC
  • Heat Dissipation: 89 BTU/hr (Excluding PoE Output)
  • Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
  • System Memory: 3 GB
  • Enclosure Material: Polycarbonate
  • LCM Display: 0.96" status display
  • Management: Ethernet | Bluetooth
  • Button: (1) Factory-reset
  • ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
  • Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • NDAA Compliant
  • Certifications: CE, FCC, IC, Anatel: 05650-25-08356
  • VLAN: 802.1Q
  • Guest Traffic Isolation

Dimensions

  • Ø4.3" x 7.3"
  • 2.4 lbs
