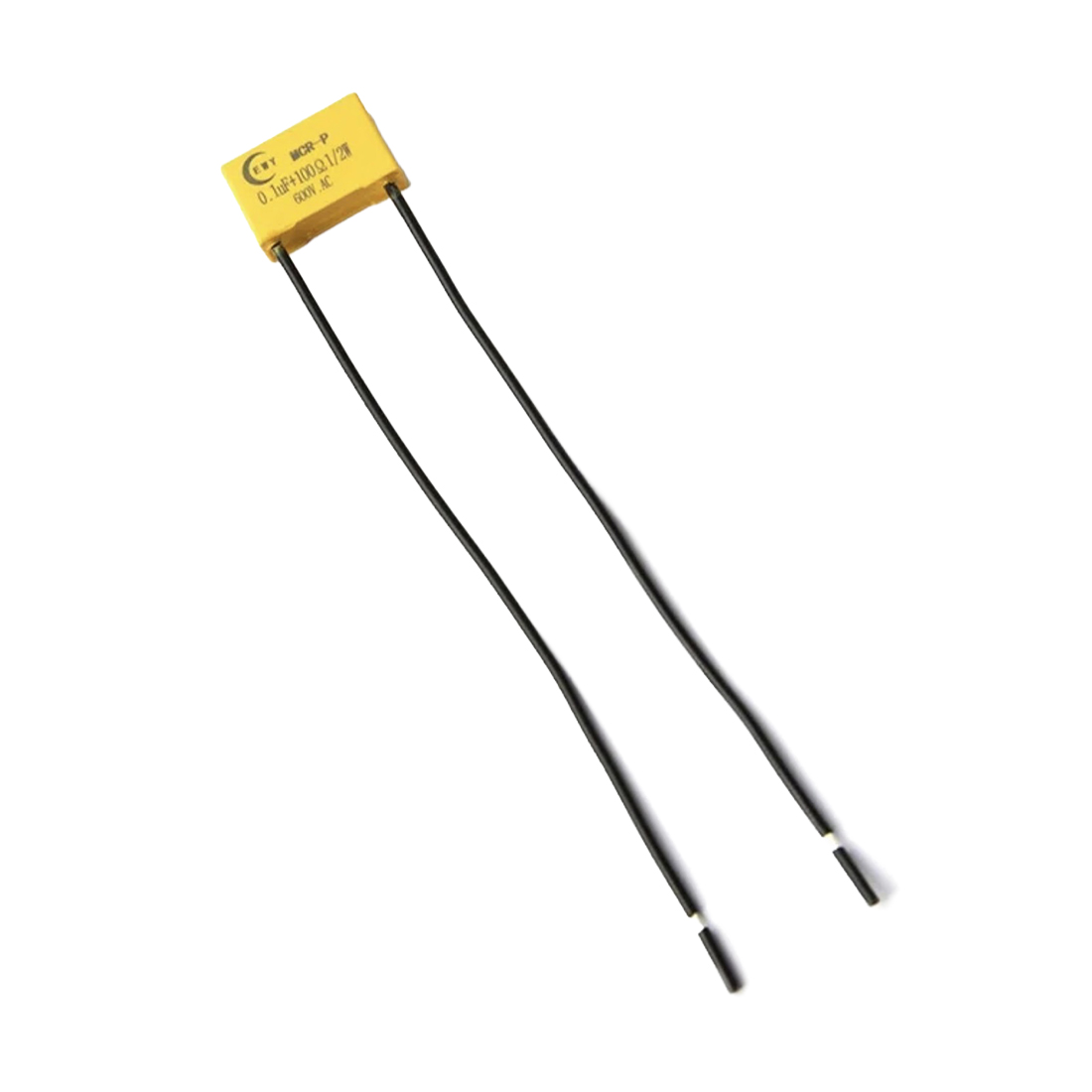

Shelly RC Snubber

The RC Snubber is a component that comprises a resistor (R) and a capacitor (C) connected in series. It effectively mitigates voltage spikes that can occur during the switching of inductive loads by providing a short-term alternative current path around the switching device, so that the inductive load is safely discharged.
MSRP: $3.99
Manufacturer: Shelly Products
SKU: 3800235266144

Features

  • The RC Snubber finds common applications with inductive loads, such as:
    • Fans
    • Refrigerators
    • Air-conditioners
    • Washing machines
    • Tumble dryers
    • Transformers
    • LED light drivers
    • Other devices with electrical motors
  • The RC Snubber can protect sensitive components of your Shelly device from voltage spikes and improve the overall performance and reliability of the connected circuits.

Specs

Capacitance 0.1 µF
Resistance 100 Ω
Power consumption 1/2 W
Rated voltage 600 VAC
