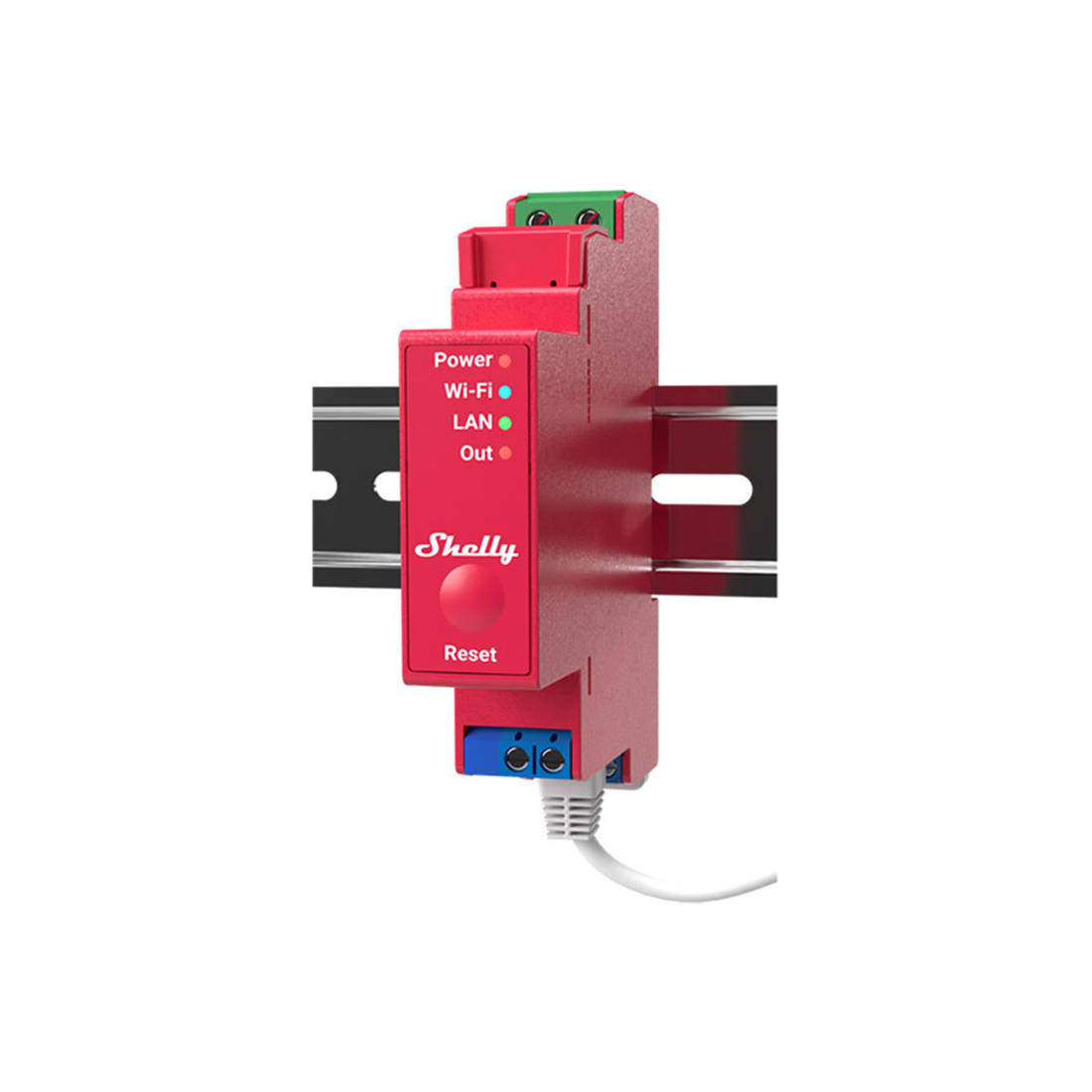

Shelly Pro 1PM UL US

1-phase, 1-channel UL-Certified relay with an integrated power meter, which allows you to measure the precise power consumption of all automated lights or heavier appliances.
MSRP: $109.00
Manufacturer: Shelly Products
SKU: 3800235268063

Features

  • LAN, Wi-Fi, and Bluetooth connection
  • UL-Certified
  • 1 output, 16A
  • Power metering
  • Overpower and overvoltage protection of the load
  • Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
  • Supports KNXnet / IP communication

Specs

Power supply voltage AC: 110 - 240 V
DC: N/A
Min. operating voltage AC 90 V
Max. operating voltage AC 264 V
Power consumption < 3 W
Max switching voltage AC: 240 V
DC: N/A
Max switching current AC: 16 A
DC: N/A
Voltmeter (AC) Yes
Ammeter (AC) Yes
Internal-temperature senso Yes
Screw terminals max torque 0.4 Nm / 3.54 lbin
Conductor cross section 0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in (green connector)
5 to 6 mm / 0.20 to 0.24 in (blue connectors)
Mounting DIN rail
Shell material Plastic
Radio RF band: 2400 - 2495 MHz
Max. RF power: <20 dBm
Wi-Fi protocol: 802.11 b/g/n
Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol: 4.2
Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
CPU ESP32-D0WDQ6
Flash 8 MB
Schedules 20
Webhooks (URL actions) 20 with 5 URLs per hook
Scripting Yes
MQTT Yes
CoAP No
Ambient temperature -20 °C to 50 °C / -5 °F to 122 °F
Humidity 10 % to 90 % RH
Max. altitude 2000 m / 6562 ft



Dimensions

HxWxD 3.70" x 0.75" x 2.71" ±0.02"
Weight 2.29 oz



Product Files
MANUALS

Features

  • LAN, Wi-Fi, and Bluetooth connection
  • UL-Certified
  • 1 output, 16A
  • Power metering
  • Overpower and overvoltage protection of the load
  • Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
  • Supports KNXnet / IP communication
