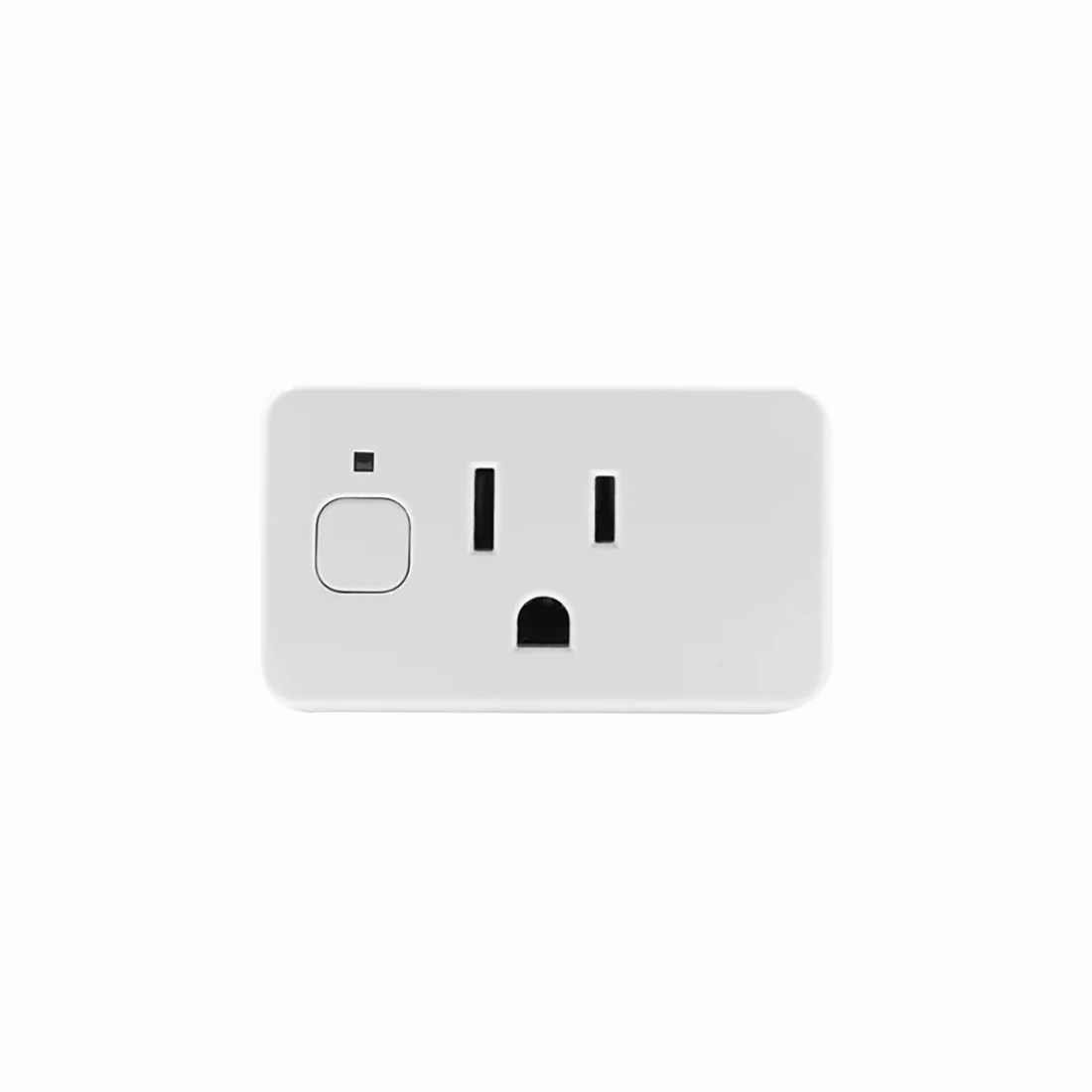

Shelly Plug US Gen4 White x 1 pack

Shelly Plug US Gen4 White x 1 pack
MSRP: $19.99
Manufacturer: Shelly Products
SKU: 3800238072094

Specs

  • Compatible plugs: NEMA 5-15 (Type-B)
  • Compatible sockets: NEMA 1-15 (Type-A) and NEMA 5-15 (Type-B)
  • Power supply: 120 V~ 60 Hz
  • Power consumption: < 1.5 W
  • Rated impulse-withstand voltage: 1500 V
  • Max. switching voltage: 120 V~
  • Max. switching current: 15 A
  • Max. output power: 1800 W (resistive load only)
  • Number of switching cycles: 10000
  • Overvoltage category: II
  • Duty-type: S1
  • Switch type: One-way
  • Switch configuration: SPNO (single-pole, normally-open)
  • Type of circuit disconnection: Micro
  • WiFi Protocol: 802.11 b/g/n/ax
  • WiFi RF band: 2401 - 2473 ?Hz
  • WiFi Max. RF power: < 20 dBm
  • WiFi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
  • Bluetooth Protocol: 5 (LE)
  • Bluetooth RF band: 2402 - 2480 MHz
  • Bluetooth Max. RF power: < 20 dBm
  • Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
  • Zigbee Protocol: 802.15.4
  • Zigbee RF bands: 2405 to 2480 MHz
  • Zigbee Max. RF power: < 20 dBm
  • Zigbee Range: Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)
  • Ambient working temperature: -20 °C to 40 °C / -5 °F to 105 °F
  • Humidity: 30 % to 70 % RH
  • Max. altitude: 2000 m / 6562 ft
  • Glow-wire temperature: 750 °C
  • Pollution degree: 2

Dimensions

  • 1.50" x 2.52" x 2.01"
  • 2.25 oz
