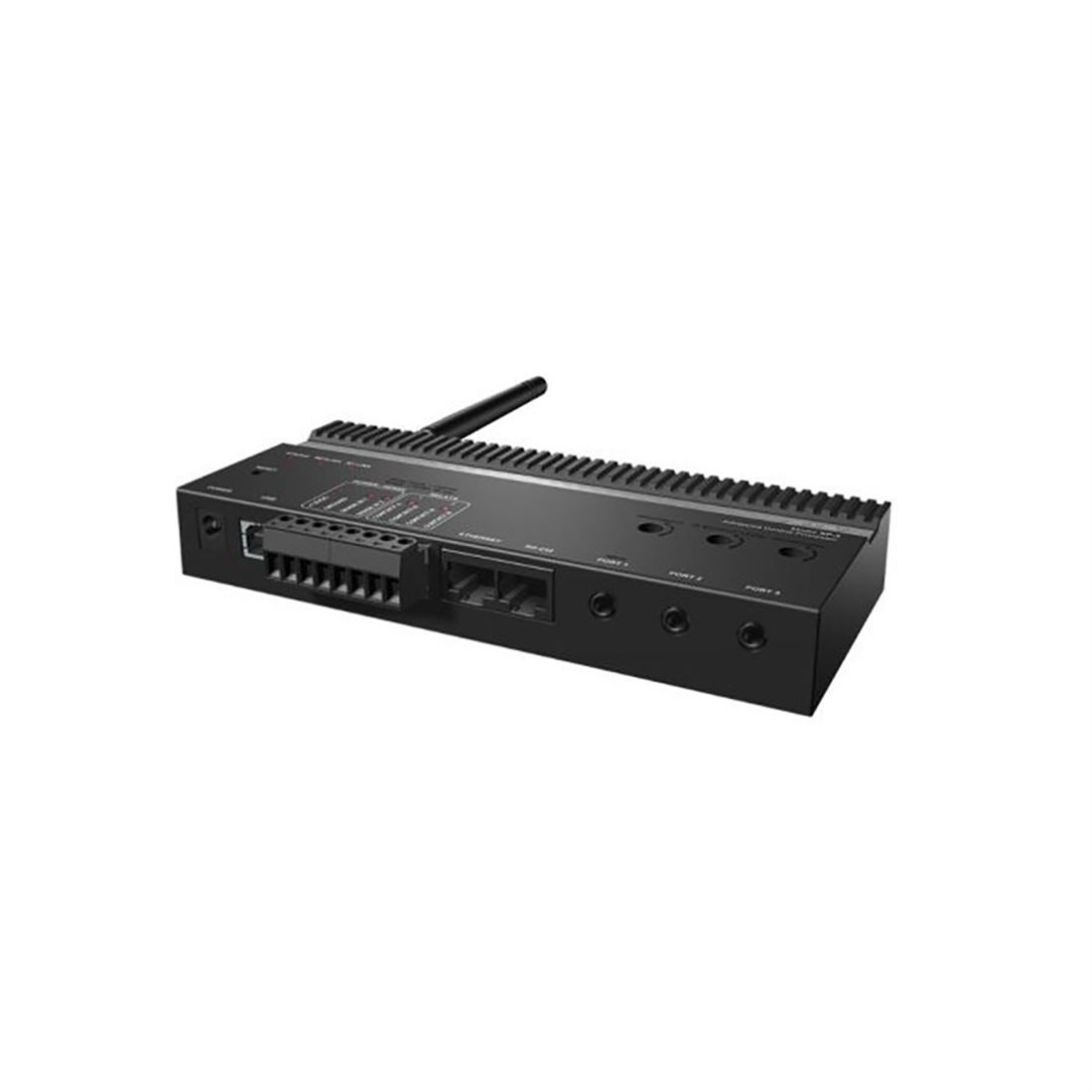

RTI Integrated Central Processor Built-in ZigBee

Name: RTI Integrated Central Processor Built-in ZigBee
SKU: XP-3
Availability: InStock

MSRP: $778.00

Manufacturer: RTI

SKU: XP-3

Features

Supports RTiPanel App for Apple/Android Smart Phones and Tablets and Windows PCs
Supports same two-way drivers used by XP6/XP8
Powerful 32bit, 533MHz CPU
128Mb of non-volatile Flash memory stores your system configuration even when power is not present
One multi-purpose I/O port supports optional RTI power sensing and communications modules
Two IR output ports with variable output
Two assignable voltage sense inputs
Two programmable relay outputs
One two-way RS-232 port for bi-directional communication with supported devices
Integrated 10/100Base-T Ethernet port for programming, control and two-way communication with compatible devices
Integrated 10/100Base-T Ethernet port supports Power-over-Ethernet (POE) Class 3
Built-in astronomical clock for time-based events and sleep timers
Built-in 2.4GHz ZigBee® RF transceiver module and removable antenna
Compatible with industry standard IR emitters and blasters
Configurable for communication with RTI in-wall products and 433MHz wireless controllers
Programmed using the RTI Integration Designer Software
USB 2.0 and Ethernet programming

What’s in the box

Power	+12VDC, 1A
RF Frequency Range	2.4GHz - 2.5GHz
Multi-Purpose Output Ports	One custom 3.5mm 4-conductor jack (port 1), Designed for RTI modules as well as industry-standard IR emitters
IR Output Ports Two, 3.5mm jack (ports 2 & 3)	Compatible with industry-standard IR emitters
IR Output Drive	100mA maximum (per port, adjustable)
Infrared Frequency Range	15 KHz - 460 KHz
Infrared Input	Compatible with industry-standard repeaters and receivers
Relays	Two, 5 amps @ 30VDC
Sense Inputs	Two, 3-24VDC
RS232 Ports	One, Bi-directional RJ45 Connections
Ethernet Port	One, 10/100Base-T with PoE (Class 3)
USB Ports	One, Programming
RAM Memory	64MB
Flash Memory	128MB

Size (L x W x D)	7" x 3" x 1"
Weight	0.4 lb.

Features

Supports RTiPanel App for Apple/Android Smart Phones and Tablets and Windows PCs
Supports same two-way drivers used by XP6/XP8
Powerful 32bit, 533MHz CPU
128Mb of non-volatile Flash memory stores your system configuration even when power is not present
One multi-purpose I/O port supports optional RTI power sensing and communications modules
Two IR output ports with variable output
Two assignable voltage sense inputs
Two programmable relay outputs
One two-way RS-232 port for bi-directional communication with supported devices
Integrated 10/100Base-T Ethernet port for programming, control and two-way communication with compatible devices
Integrated 10/100Base-T Ethernet port supports Power-over-Ethernet (POE) Class 3
Built-in astronomical clock for time-based events and sleep timers
Built-in 2.4GHz ZigBee® RF transceiver module and removable antenna
Compatible with industry standard IR emitters and blasters
Configurable for communication with RTI in-wall products and 433MHz wireless controllers
Programmed using the RTI Integration Designer Software
USB 2.0 and Ethernet programming
