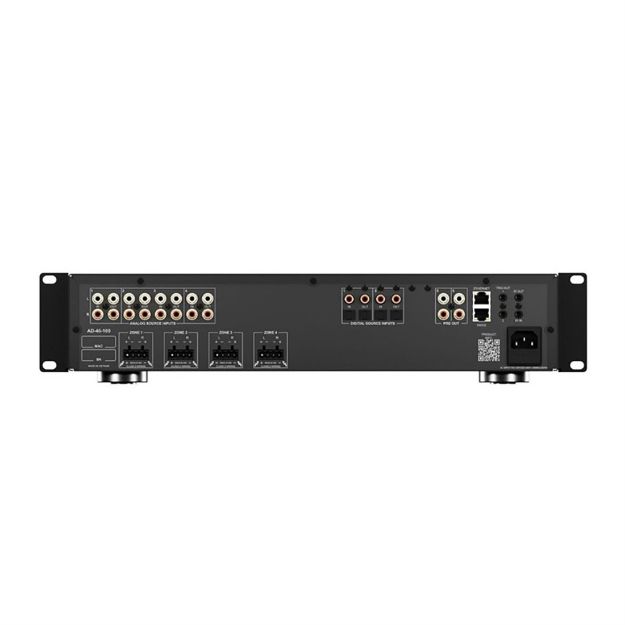

RTI Audio Distribution 4x6 DSP Matrix Amplifier 100w

Name: RTI Audio Distribution 4x6 DSP Matrix Amplifier 100w
SKU: AD-46-100
Availability: InStock

MSRP: $1999.99

Manufacturer: RTI

SKU: AD-46-100

Features

Four analog audio source inputs and two mirrored digital inputs (mirrored analog inputs)
Six stereo audio output zones with four amplified stereo and two preamp stereo outputs
Class D amplifier provides a robust and clear audio experience with 100 watts @ 4Ω per channel per zone
Distribute four audio source inputs to six zones, expandable to 48 zones
Fine-tune acoustic characteristics for each zone with the 5-band parametric EQ, mixing and auto ducking features
Configure and optimize DSP and matrix settings
Multiple control options with RS-232, IP and IR
Rack Mount or free standing installation

Analog Sources	4 RCA (Stereo)
Digital Sources	2 Coax and 2 Optical (mirror analog 1 and 2)
Loop Out	4 Analog + 2 Digital
Amplified Zones	4 stereo (16 channels)
Preamp Zones	2 Stereo or 4 mono (4 channels)
Audio Zone Expansion	Up to 48 zones by combining up to 8 AD-46-100 units
Input Impedance	20kthing
Amplifier	Class D
Power @ 8Ω	50W/Ch (all channels driven)
Power @ 4Ω	100W/Ch (all channels driven)
Power @8Ω Bridged	200W/Ch Bridged (8thing) (all channels driven)
Analog Input	2 vrms maximum
Analog Output	2 vrms maximum. Volume controlled
Volume Range	0-100 (-80dB-0dB)
Digital Optical Input	Up to 192kHz/24bit sample rate. PCM only
Digital Coaxial Input	Up to 192kHz/24bit sample rate. PCM only
Frequency Response	20Hz-20kHz +/- 2 dB @ 4 thing and 8thing
Dynamic Range	>95dB A-weighted
Sampling Frequency	48kHz
RTI or 3rd Party Control	IP (RJ45), RS-232 (RJ45) and IR (3.5mm mono)
AC Input Voltage	100-120V/220-240V~50/60Hz, 800W
Mounting	Rack Mount or Free Standing

Size (W x H x D)	17.2” x 16.4” x 3.5”
Weight	22.88 lbs.

Features

Four analog audio source inputs and two mirrored digital inputs (mirrored analog inputs)
Six stereo audio output zones with four amplified stereo and two preamp stereo outputs
Class D amplifier provides a robust and clear audio experience with 100 watts @ 4Ω per channel per zone
Distribute four audio source inputs to six zones, expandable to 48 zones
Fine-tune acoustic characteristics for each zone with the 5-band parametric EQ, mixing and auto ducking features
Configure and optimize DSP and matrix settings
Multiple control options with RS-232, IP and IR
Rack Mount or free standing installation
