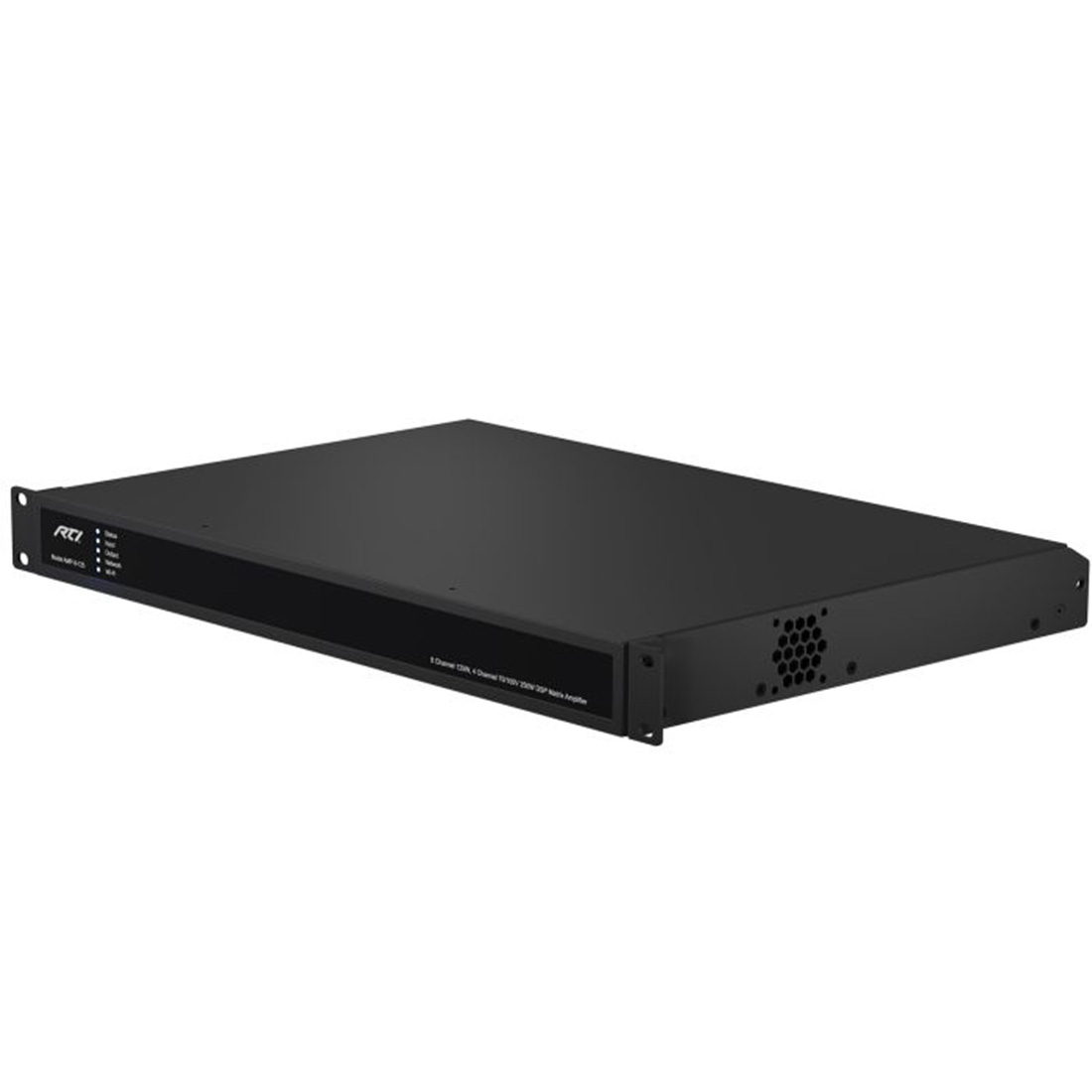

RTI 8 Channel 125W 4 Channel 70/100V 250W DSP Matrix Amplifi

RTI 8 Channel 125W 4 Channel 70/100V 250W DSP Matrix Amplifi
MSRP: $2490.00
Manufacturer: RTI
SKU: RTI-AMP8-125

Specs

  • Analog Sources: 8 RCA (Unbalanced Stereo), 8 Phoenix Connector (Balanced Stereo)
  • Digital Sources: 1 Coax
  • Amplified Zones: 4 (8 Channels)
  • Audio Zone Expansion: Daisy-chain multiple AD-8-125 units via Digital In/Out
  • Amplifier: Class D
  • Output Power @ 4Ω/8Ω: 8 x 125W
  • Output Power @ 70V/100V: 4 x 250W
  • Output Voltage: 45 Vrms (S.E), 70/100V (Hi-Z)
  • Power Share: Up to 2 x 250W (across each channel pair)
  • Signal to Noise Ratio: > 106 dB (A-weighted, 20 Hz – 20 kHz, 8Ω load)
  • THD-N (Typical): < 0.05% (20 Hz – 20 kHz, 8Ω load, 3 dB below rated power)
  • Frequency Response: 20 Hz – 20 kHz (+/- 0.5 dB, 8Ω load, 3 dB below rated power)
  • Protection Circuits: Short circuit, DC, Undervoltage, Temperature, and Overload protection
  • RTI or 3rd Party Control: IP (RJ45), GPIO (Phoenix Connector)
  • Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
  • AC Input Voltage: 100-240V~, 50/60Hz, 150W
  • Power Rating: 1% THD @ 120VAC and 230VAC
  • Standby Consumption: < 0.5W
  • Mounting: Rack mount or free-standing
  • Rack Units: 1U
  • Operating Temperature: +32°F to +104°F (0°C to +40°C)
  • Warranty: Three Years (Parts & Labor)

Dimensions

  • 17.35” x 12.6” x 1.75”
  • 8.4 lbs
