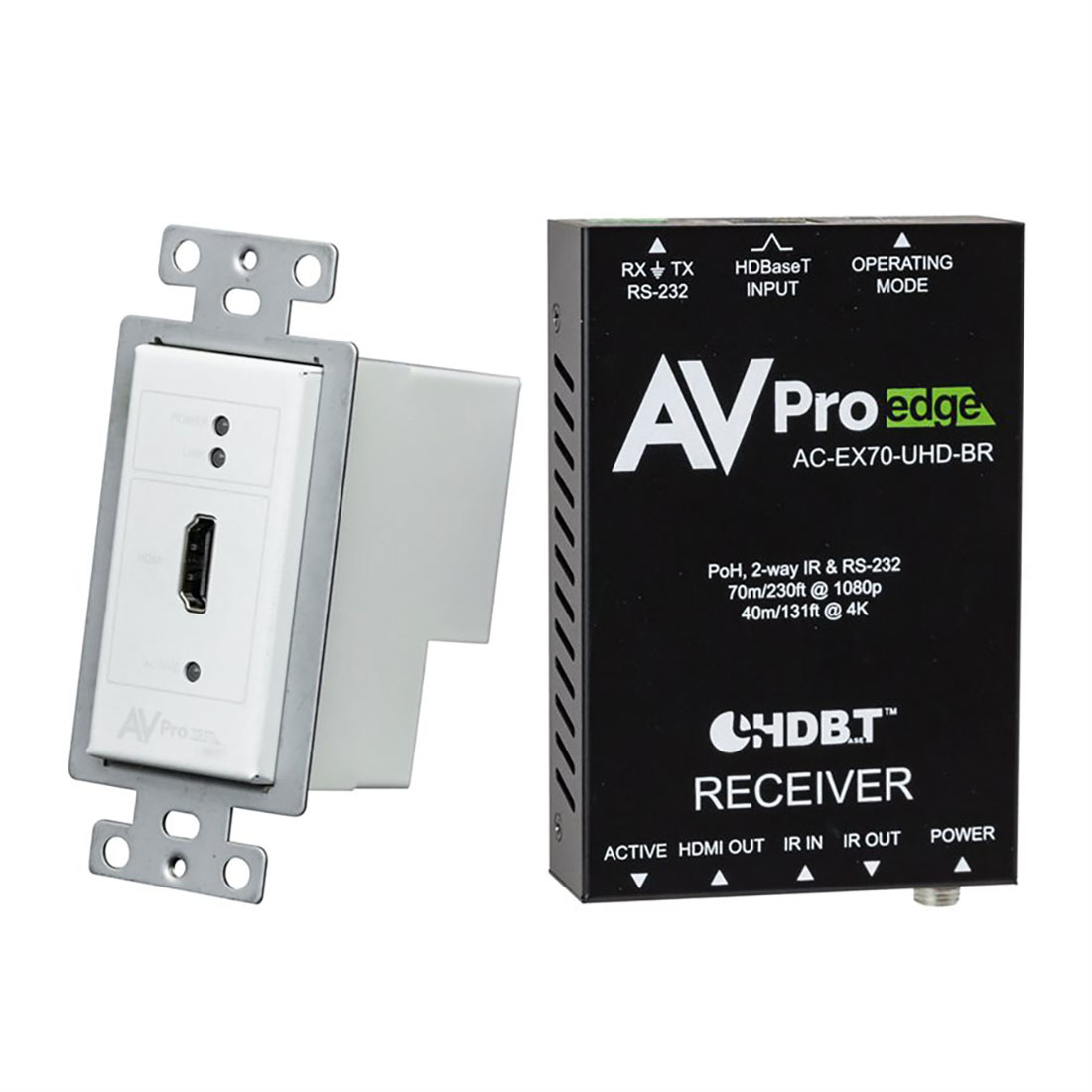

AVPro Edge ConferX Basic HDBaseT HDMI Wall Plate Transmitter

AVPro Edge ConferX Basic HDBaseT HDMI Wall Plate Transmitter
MSRP: $1009.00
Manufacturer: AVPro Edge
SKU: AC-CXWP-HDMO-BKT

Features

  • HDMI 2.0 Input
  • 4K 30 4:4:4, 4K60 4:2:0 HDMI Support
  • DCI 2K, 1080P, 1920x1080x60 VGA Support
  • HDCP 2.2 & Earlier Supported
  • 70 Meters (230ft) 0n 1080P, Up to 40 Meters (130ft) on 4K (Cat6a)
  • No Local Power Necessary at Wall Plate (Powered by AC-EX70-UHD-BR)
  • Single Gang, Low heat, Straight in rear RJ45 receptacle design.
  • Point to Point HDMI Extension Solution

Specs

Video Resolution Up to 4K 60hz 4:2:0 8bit
Vesa Resolution Up to 2560 x 2048 (QSXGA)
Audio Formats Supported HDMI PCM 2.0 CH, LPCM 5.1 & 7.1, Dolby Digital, DTS5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Distance 1080p 230 feet (with CAT6A/7)
Distance 4K & HDR 131 feet (with CAT6A/7)
Bandwidth 10.2 GBPS
HDCP 2.2 and earlier
Power Consumption (total) 12 watts (16.5 when paired with receiver)
Power Supply Input - AC 100-240V~50/60HZ, Output - DC12V 2A



Dimensions

Size (L x W x H) 2.75” x 2.55” x 1.22” (without cover)
Size (L x W x H) 7.25” x 12.5” x 3.25” (kit packaged)
Weight 1.5 lb.



Features

  • HDMI 2.0 Input
  • 4K 30 4:4:4, 4K60 4:2:0 HDMI Support
  • DCI 2K, 1080P, 1920x1080x60 VGA Support
  • HDCP 2.2 & Earlier Supported
  • 70 Meters (230ft) 0n 1080P, Up to 40 Meters (130ft) on 4K (Cat6a)
  • No Local Power Necessary at Wall Plate (Powered by AC-EX70-UHD-BR)
  • Single Gang, Low heat, Straight in rear RJ45 receptacle design.
  • Point to Point HDMI Extension Solution
