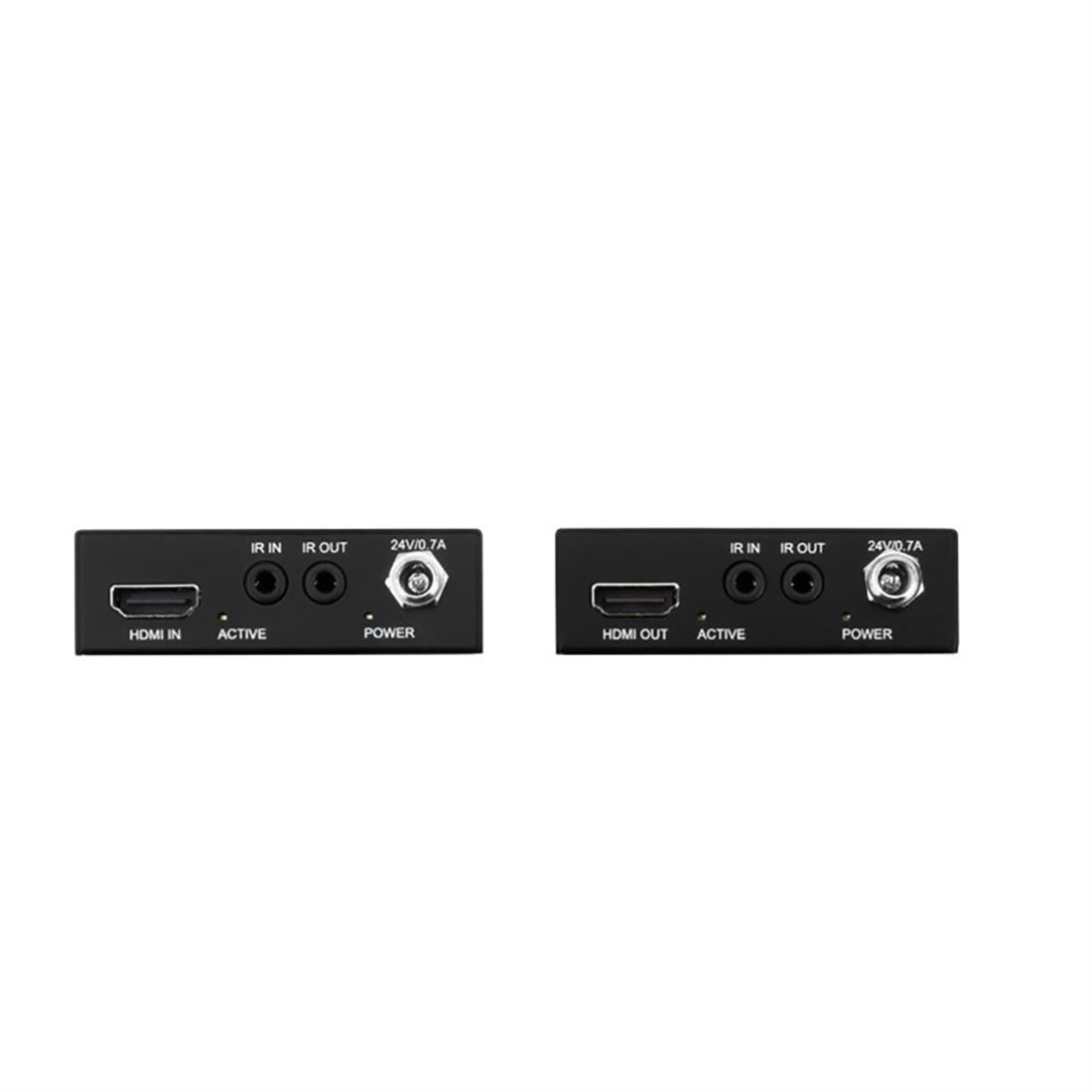

AVPro Edge Long Distance 150m 4K HDMI Extender

AVPro Edge Long Distance 150m 4K HDMI Extender
MSRP: $648.00
Manufacturer: AVPro Edge
SKU: AC-EX150-BKT

Specs

  • Video Resolutions: Up to 4K 60Hz 4:4:4
  • VESA Resolutions: Up to DCI 4K (4096x2160)
  • Color Space: YUV (component), RGB (CSC: Rec. 601, Rec. 709, ITU R-BT.2020, DCI-P3-D65)
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 supported
  • Deep Color: Up to 16-bit (1080p) Up to 12-bit (4K)
  • Audio Formats Supported HDMI: PCM 2.0 Ch, LPCM 5.1 and 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, DTS:X
  • HDBaseT Distance (4K and HDR): 330ft (Cat 6a)
  • HDBaseT Distance (Full HD): 492 ft (Cat 6a)
  • HDMI Lead In/Out: Up to 50ft (using bullet train HDMI)
  • HDMI Lead In/Out (W/ AOC Cable): Up to 130ft (using bullet train AOC)
  • Bandwidth: 18 Gbps
  • HDCP: HDCP 2.3 and earlier
  • HDMI (TX and RX): Type A
  • HDBaseT: RJ45 with PoH for HDBaseT Receivers
  • IR TX (TX and RX): 3.5mm stereo (3-conductor)
  • RS-232 (TX and RX): 3-pin terminal block
  • Power (TX and RX): Barrel Type
  • Power Consumption (total): 16.8 watts maximum
  • Power Supply-Matrix: Input-AC 100-240V~50/60Hz / Output-DC 24V at 0.7A

Dimensions

  • Size (W x D x H): 3.94” x 3.72” x 0.91”
  • Weight: 6.2 oz.
