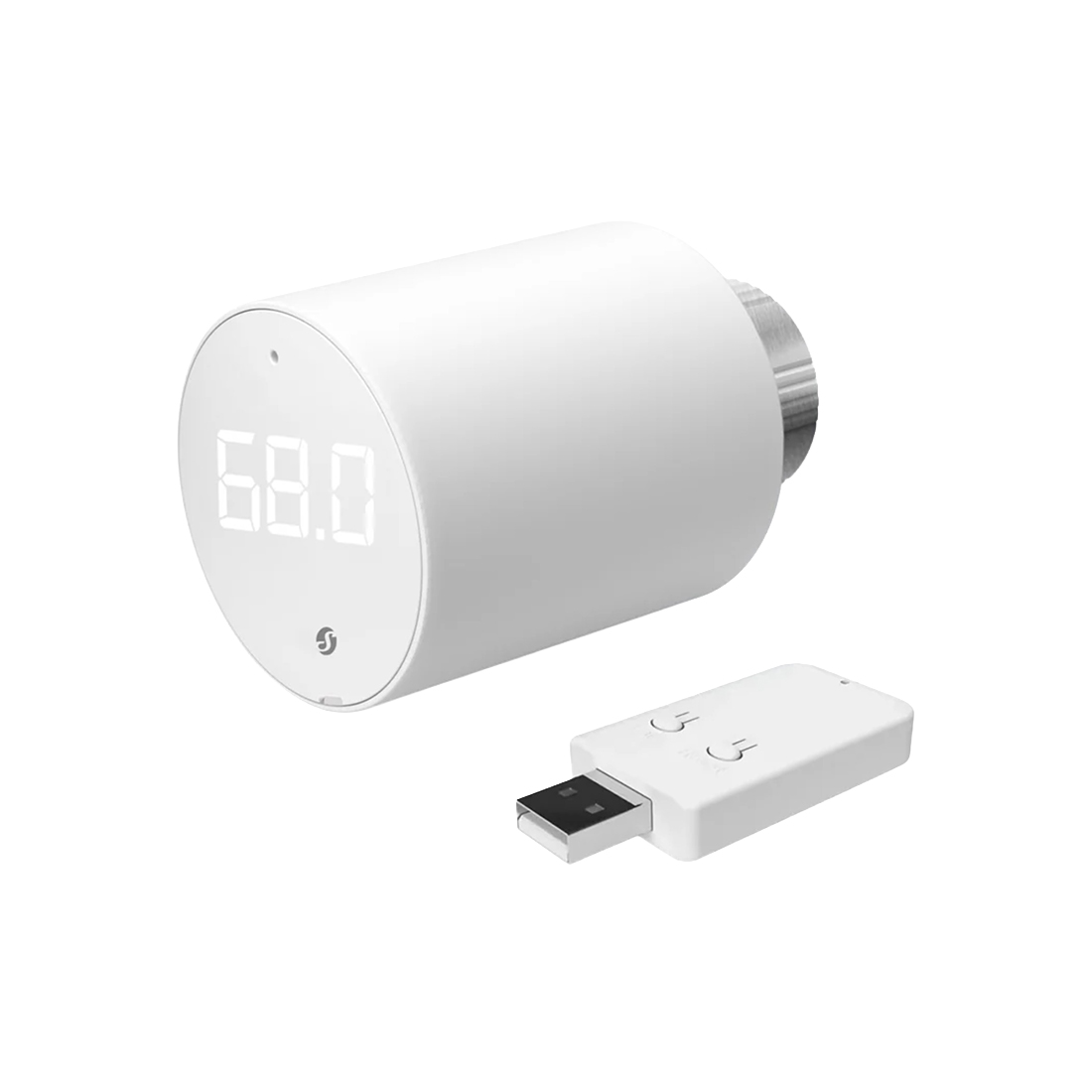

Shelly Blu TRV x1 + Shelly Blu Gateway Gen3

Experience unparalleled comfort and efficiency with Shelly’s smart Thermostatic Radiator Valve head. Designed to perfectly fit into your interior, the Shelly BLU TRV offers precise climate control.
MSRP: $54.49
Manufacturer: Shelly Products
SKU: 3800235264980

Features

  • Bluetooth-operated and Wi-Fi with gateway
  • 2x1.5 V battery AA (included)
  • Precise temperature control (adjust by ±0.1°C)
  • Boost mode for fast warm-up of the room
  • Smart scheduling: Set daily schedules to keep your home warm and save energy
  • External sensor support (compatible with Shelly BLU H&T, Shelly BLU Door/Window sensors, associated via BLU Gateway Gen3)
  • Integration with most smart home systems

What's in the Box

TRV

Specs

Power supply 2x AA, 1.5 V (included)
Estimated battery life up to 2 years
Temperature sensor Yes
Bluetooth Protocol: 5 (LE)
RF band: 2402 - 2480 MHz
Max. RF power: < 8 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (depends on local conditions)
Zigbee Protocol: 802.15.4
RF bands: 2405 to 2480 MHz
Max. RF power: < 8 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (depends on local conditions)
Mounting M30 / 15
Mounting ring material Nickel-plated brass
Shell material Plastic
Schedules Yes
Ambient working temperature -20°С to +60°С / -4°F to 140°F
Humidity 25% to 80% RH
Pollution degree 2



Dimensions

HxD 3.07" x Ø2.13"
Weight 3.77 oz



Gateway

Specs

Power supply 5 V⎓ (from USB Type-A port)
Power consumption < 1 W (up to 5 W peak)
Internal-temperature sensor No
Wi-Fi Protocol: 802.11 b/g/n
RF band: 2401 - 2483 МHz
Max. RF power: < 20 dBm
Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol: BLE 4.2
RF band: 2402 - 2480 MHz
Max. RF power: < 10 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Shell material Plastic
CPU Shelly ESP32 C3
Flash 8 MB
Schedules 20
Webhooks (URL actions) 20 with 5 URLs per hook
Scripting Yes
MQTT Yes
Encryption Yes
Ambient working temperature -20 °C to 40 °C / -5 °F to 105 °F
Humidity 30 % to 70 % RH
Max. altitude 2000 m / 6562 ft



Dimensions

HxWxD 2.36" x 1.06" x 0.43"
Weight 0.35 oz
