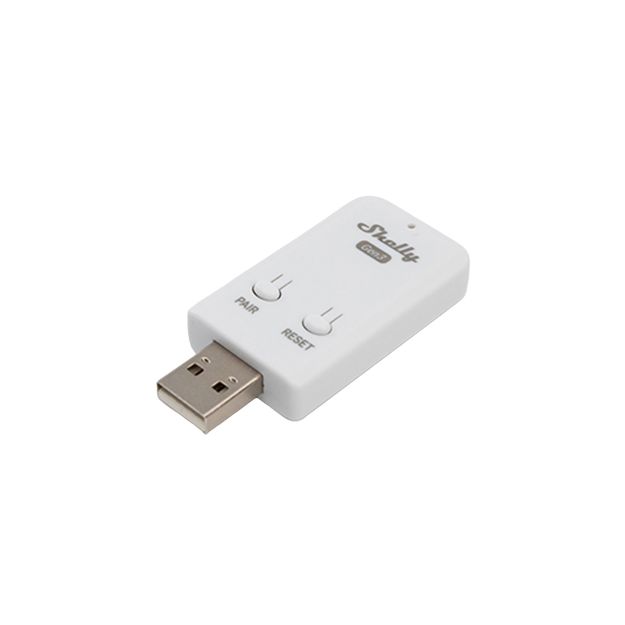

Shelly BLU Gateway Gen3

Shelly BLU Gateway Gen3 is a smart Bluetooth-to-Wi-Fi gateway with a USB-A connector. It monitors and controls compatible Shelly Bluetooth devices, including the Shelly BLU TRV, and comes with an external button for easier pairing.
MSRP: $22.99
Manufacturer: Shelly Products
SKU: 3800235261934

Features

  • Enables monitoring and control of Shelly BLU TRV locally or through the Shelly Cloud.
  • Supports multiple Shelly BLU devices, including up to five Shelly BLU TRV devices.
  • Uses a built-in button for fast Bluetooth device connection.
  • Provides visual feedback for connection status, pairing, and OTA updates.
  • Powered directly through a USB-A port for convenient installation.
  • Features an embedded web interface for monitoring, control, and adjustment of settings.
  • Operate and monitor the device remotely from anywhere using the Shelly App or a third-party home automation system.
  • Connects to the local Wi-Fi network for local and remote control and monitoring via the Shelly app or compatible smart-home platforms.
  • Extends the Wi-Fi network by receiving the existing signal and retransmitting it to widen coverage.
  • Enables supported Bluetooth-based features and communication.
  • Acts as a bridge between Shelly BLU (Bluetooth) devices and the wider Shelly ecosystem, forwarding their signals to the cloud or the local network.

Specs

Power supply 5 V⎓ (from USB Type-A port)
Power consumption < 1 W (up to 5 W peak)
Internal-temperature sensor No
Wi-Fi Protocol: 802.11 b/g/n
RF band: 2401 - 2483 МHz
Max. RF power: < 20 dBm
Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol: BLE 4.2
RF band: 2402 - 2480 MHz
Max. RF power: < 10 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Shell material Plastic
CPU Shelly ESP32 C3
Flash 8 MB
Schedules 20
Webhooks (URL actions) 20 with 5 URLs per hook
Scripting Yes
MQTT Yes
Encryption Yes
Ambient working temperature -20 °C to 40 °C / -5 °F to 105 °F
Humidity 30 % to 70 % RH
Max. altitude 2000 m / 6562 ft



Dimensions

HxWxD 2.36" x 1.06" x 0.43"
Weight 0.35 oz
