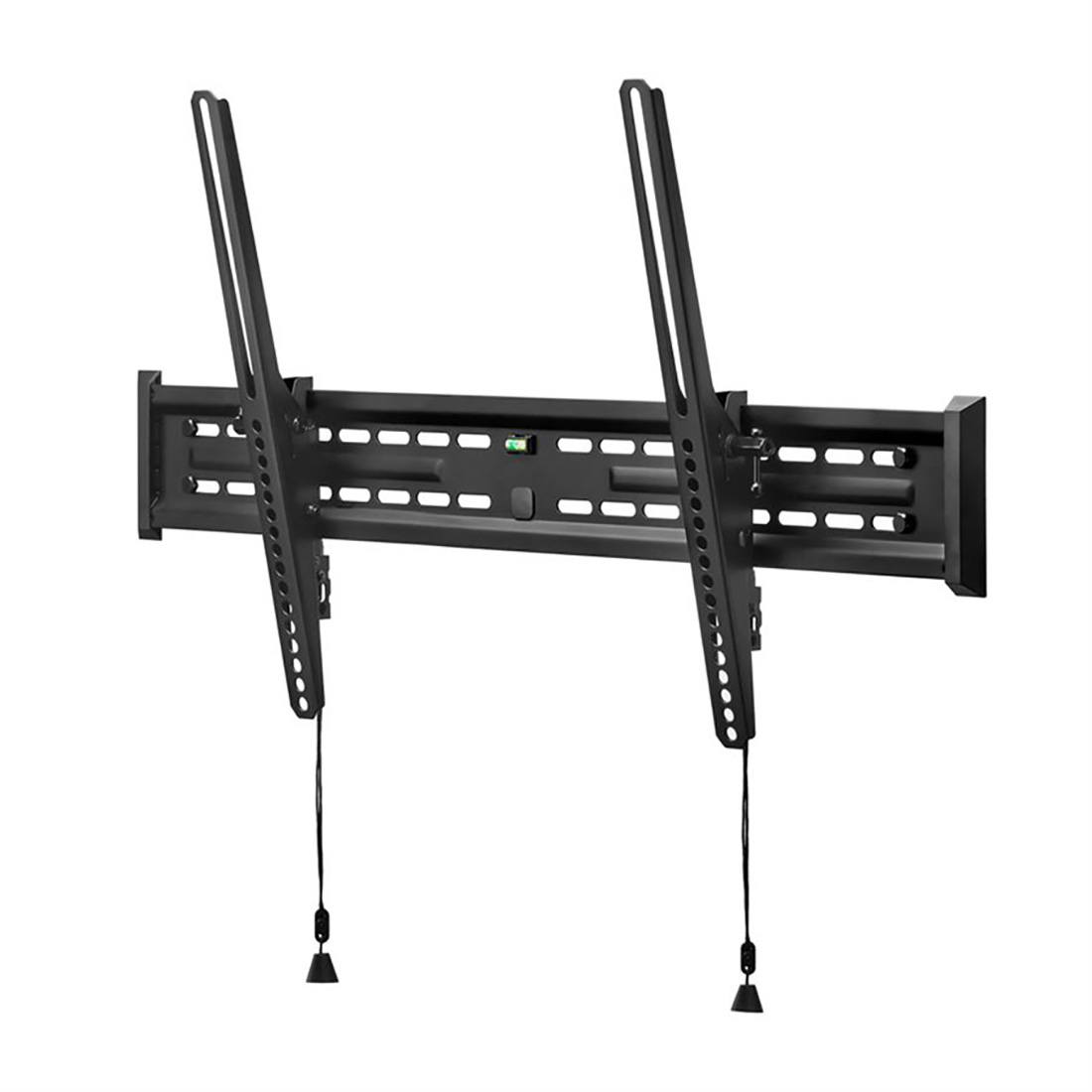

Red Atom 37"-80" Tilt Wall Mount


MSRP: $182.91
Manufacturer: Red Atom
SKU: REDXLTHD175

Overview

  • Screen size range: 37″–80″
  • Weight capacity: 175 lb
  • Maximum mounting hole pattern: 700 x 400mm
  • Mounting profile: 1.78″
  • Tilts +3° to -12°
  • Easy Attach feature allows TV panel and vertical rails to be safely and quickly connected to wall plate
  • Wall mounting: 16″ or 24″ dual stud or solid wall attachment
  • One-piece wall plate for easy installation
  • Wall plate has 4 points of attachment
  • Padlock-able for added security
  • Level included for one time installation
  • Grade 5 wall hardware and spacers included
  • Extra-long Allen wrench included for securing tilt position
  • 5 year warranty
  • UL Listed
Product Files
SPEC SHEETS
MANUALS

Overview

  • Screen size range: 37″–80″
  • Weight capacity: 175 lb
  • Maximum mounting hole pattern: 700 x 400mm
  • Mounting profile: 1.78″
  • Tilts +3° to -12°
  • Easy Attach feature allows TV panel and vertical rails to be safely and quickly connected to wall plate
  • Wall mounting: 16″ or 24″ dual stud or solid wall attachment
  • One-piece wall plate for easy installation
  • Wall plate has 4 points of attachment
  • Padlock-able for added security
  • Level included for one time installation
  • Grade 5 wall hardware and spacers included
  • Extra-long Allen wrench included for securing tilt position
  • 5 year warranty
  • UL Listed
