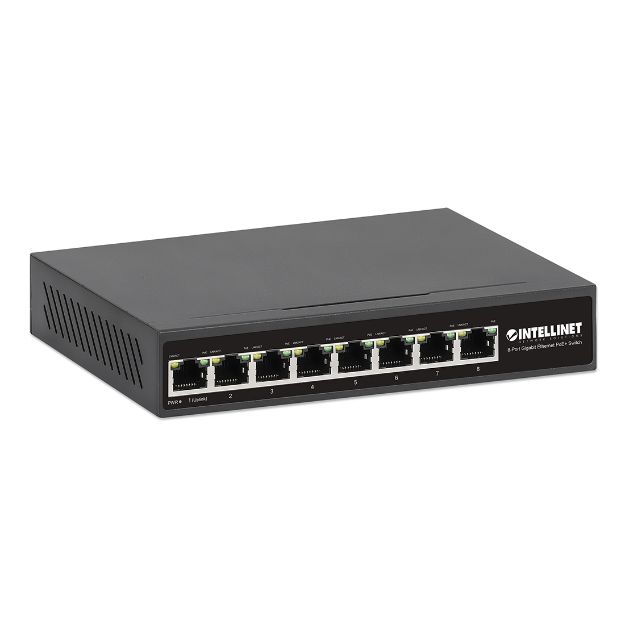

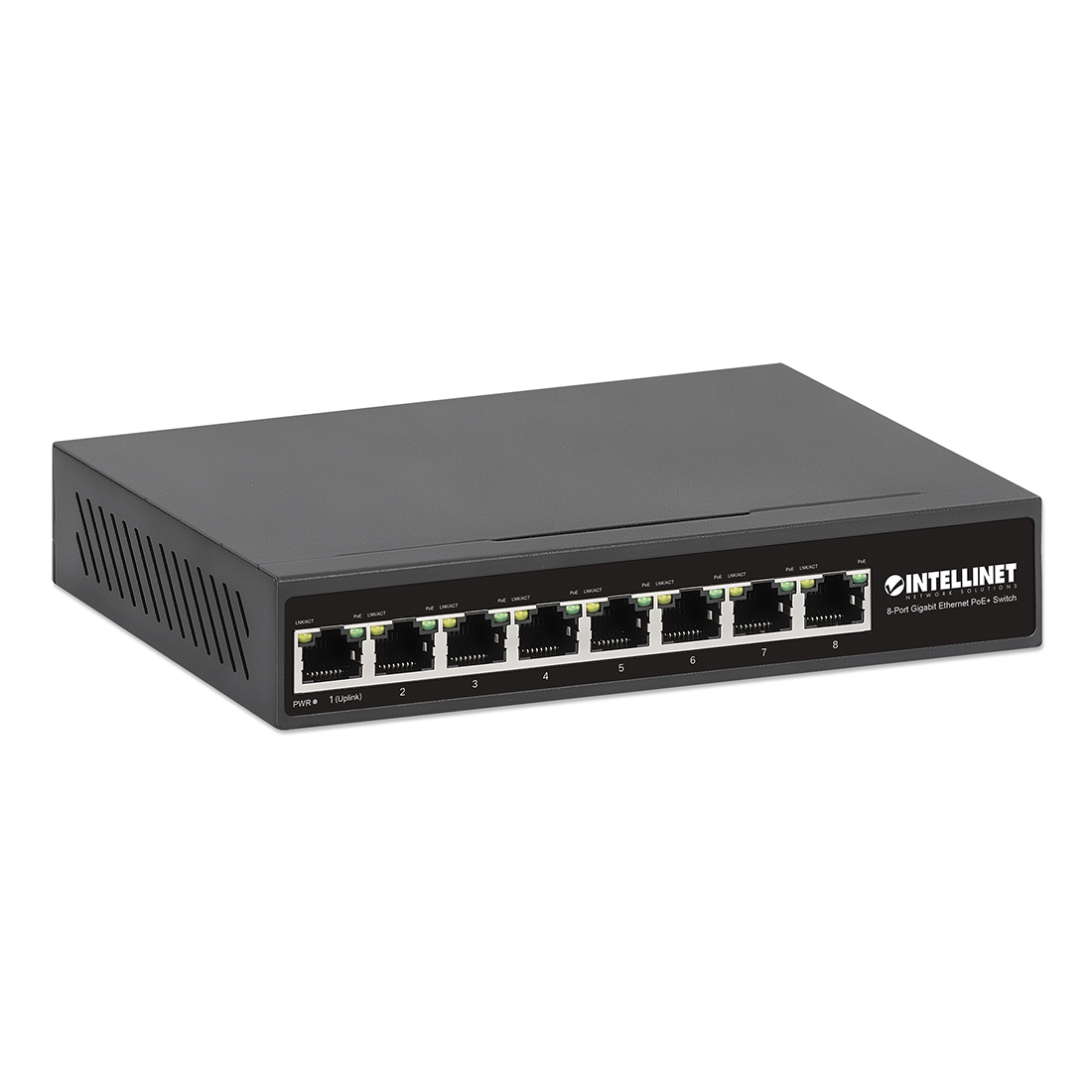

Intellinet 8 Port Gigabit Ethernet POE+ Switch

The Intellinet Network Solutions 8-Port PoE+ Switch passes both data and electrical power to PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight PoE+ ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds up to 1000 Mbps.
MSRP: $106.99
Manufacturer: Intellinet
SKU: 562379

Features

  • Unmanaged PoE switch with Self-Healing Network feature and PoE extend mode
  • Provides up to eight PoE network devices with power and data
  • PoE power budget of 60 watts
  • Power output up to 30 watts per port
  • Self-Healing Network - the Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic
  • Manual PoE extend mode, ideal for IP camera installations (reduces network speed to 10 Mbps and extends PoE support to 250 m/820 ft.), isolates ports 2 to 8 from each other while allowing them to communicate with uplink port 1
  • Manual VLAN mode to isolate ports 2 to 8 from each other while allowing them to communicate with uplink port 1
  • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
  • 16 Gbps switch fabric / switching capacity
  • Short-circuit, overload and high-voltage protection
  • Saves time and money by delivering data and power via existing network cables
  • Auto-sensing PoE awareness to ensure that power is only sent to IEEE 802.3at/af-compliant devices; non-PoE devices only receive data
  • Supports 2k MAC address entries with Auto-Learning and Auto-Aging
  • Supports jumbo frames up to 16 kBytes
  • Buffer memory of 1 Mbit
  • PoE surge protection up to 6 kV in common mode and 2 kV in differential mode
  • ESD protection up to 8 kV (air) and 6 kV (contact)
  • Store and forward switching architecture
  • Supports IEEE 802.3x flow control on full duplex and backpressure on half duplex
  • LEDs for power, link/activity and PoE
  • Grounding point to protect equipment from external electrical surges
  • Fanless design ideal for silent operation
  • Rubber feet for non-slip desktop use
  • Regional power cable included
  • Fully NDAA-compliant
  • Three-year warranty

What's in the Box

  • 8-Port Gigabit Ethernet PoE+ Switch with Self-Healing Network and PoE Extend Mode
  • Power cable
  • Instructions
  • Four rubber feet

Specs

Standards IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
IEEE 802.3af (Power over Ethernet Type 1)
IEEE 802.3at (Power over Ethernet Type 2)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (flow control for full duplex mode)
Media support 10Base-T Cat5e/6/6a/8.x UTP/STP RJ45
100Base-TX Cat5e/6/6a/8.x UTP/STP RJ45
1000Base-T Cat5e/6/6a/8.x UTP/STP RJ45
MAC address table 2k
Buffer memory 1 Mbit
Forwarding rate 11.9 Mpps
Backplane speed / switch fabric 16 Gbps
Switch architecture store and forward
Certifications FCC, CE, RoHS, UKCA, NDAA
Modes (selectable via DIP switch on back panel) Standard
VLAN (Port Isolation)
Extend
LEDs Power
Link/activity
PoE
Pinout RJ45 output ports Pin 1: DC (+)
Pin 2: DC (+)
Pin 3: DC (-)
Pin 6: DC (-)
Input 100.0 - 240.0 VAC, 50 - 60 Hz, internal power supply
PoE power budget 60.0 W (max.)
Power consumption 65.0 W (max.)
Operating temperature 0 to 45°C (32 to 113°F)
Storage temperature -40 - 70°C (-40 to 158 °F)
Operating humidity 10 to 90% RH, non-condensing
Storage humidity 5 to 90% RH, non-condensing



Dimensions

LxWx H 3.7" x 6.61" x 1.26"
Net weight 1.34 lbs.
Gross weight 1.79 lbs.
