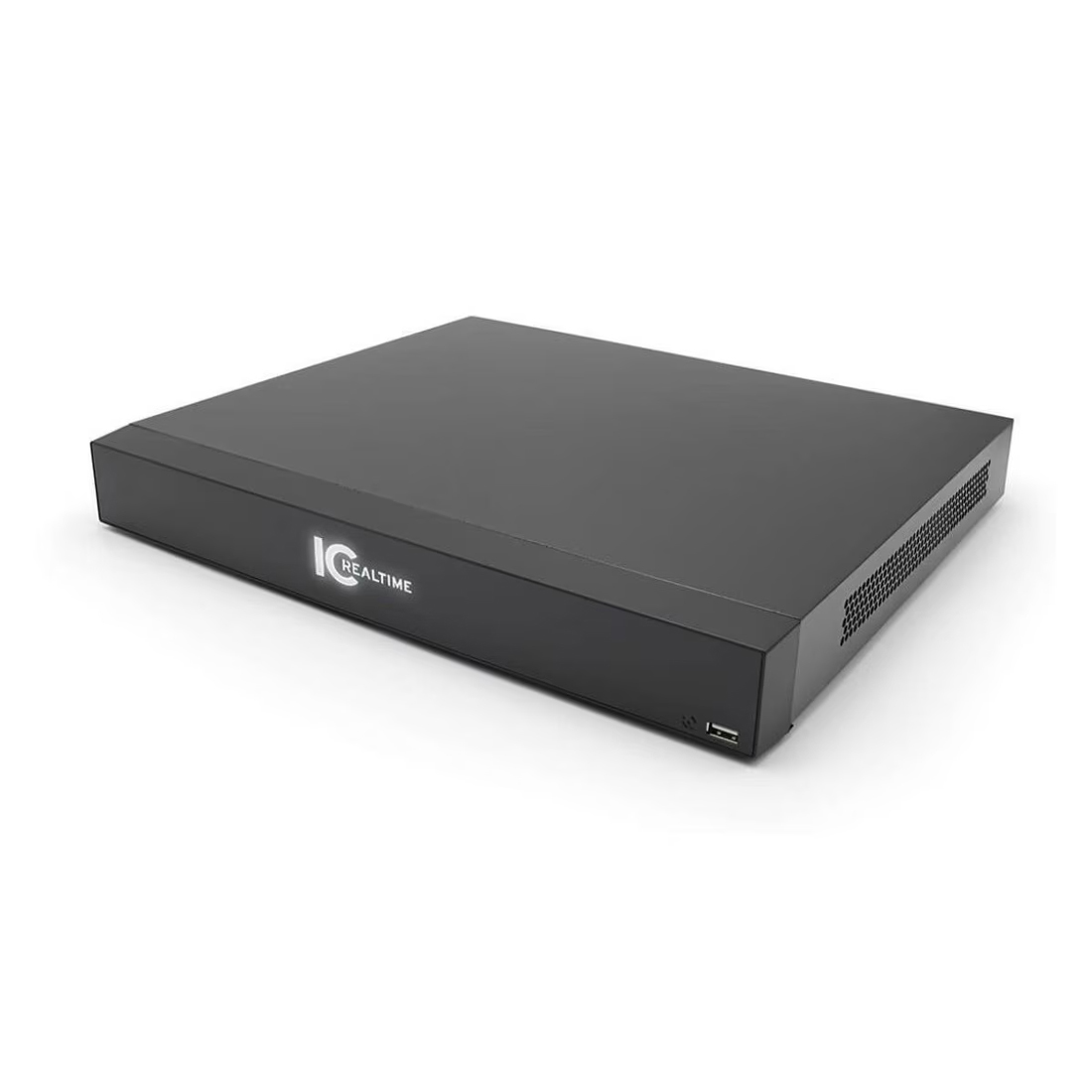

IC Realtime 8Ch Coax + 8 IP 1U Shelfmount Multi Signal AVR 8

MSRP: $1688.00
Manufacturer: IC Realtime
SKU: HDVRMX08081U4KAI38TB

Specs

  • Main Processor: Embedded Processor
  • Operating System: ICR 4.0
  • Display Interface: 1 HDMI, 1 VGA
  • Display Resolution:
    • VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
    • HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×720
  • Display Split: 1/4/8/9 or 1/4/8/9/16 with IP cameras Main + Extra screen (only coax channels are supported on the extra screen)
  • IVS: (Coax Channels Only) (8ch) Tripwire, Intrusion (50 objects max)
  • Advanced Intelligent Functions: (Coax Channels Only), (2ch) Perimeter Protection: Tripwire & intrusion; Recognition of human and vehicle, (8ch) Intelligent Motion Detect (iMD): Motion detection alarm with human and vehicle recognition, (2ch) Face Recognition and detection
  • Supported Camera Types: IP, Coax
  • IP Camera Input: 8+8 Channel, each channel up to 8MP
  • Trigger Events: Motion detection; video loss; tampering; local alarm,
  • Video Detection: Face detection; face recognition; perimeter protection
  • Playback: 1/4/9
  • Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to the second)
  • Playback Function: Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
  • Backup Mode: USB Device/Network
  • Audio Compression: G.711a; G.711u; PCM
  • Two-way Talk
  • Record Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
  • Record Resolution:
    • Main stream: 4K@ (1fps–15 fps); 6 MP@ (1fps–20 fps); 5 MP, 4K-N,4 MP,3 MP, 1080p, 720p, 960H, D1, CIF@ (1fps–25/30fps)
    • Sub stream: 960H@ (1fps–15fps1, CIF@ (1fps–25/30fps)
  • Record Mode: General, motion detection; intelligent; alarm
  • Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
  • Incoming Bandwidth: 128 Mbps
  • Throughput:
    • Incoming bandwidth: 128 Mbps
    • Recording bandwidth: 128 Mbps
    • Outgoing bandwidth: 128 Mbps
  • Internal HDD: 2 SATA Ports, up to 10TB capacity for each disk
  • Ethernet:1 RJ-45 port (10/100M/1000M)
  • Protocol:HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
  • Compatibility:ONVIF 21.12; CGI
  • Power Supply: DC 12V/5A
  • Power Consumption: <15W (Without HDD)

Dimensions

  • 14.76'' × 11.30'' × 2.09"
