AVPro Edge 18Gbps True 4K60 4:4:4, 4x2 Matrix & Auto Switch/

Name: AVPro Edge 18Gbps True 4K60 4:4:4, 4x2 Matrix & Auto Switch/
SKU: AC-MX-42
Availability: InStock

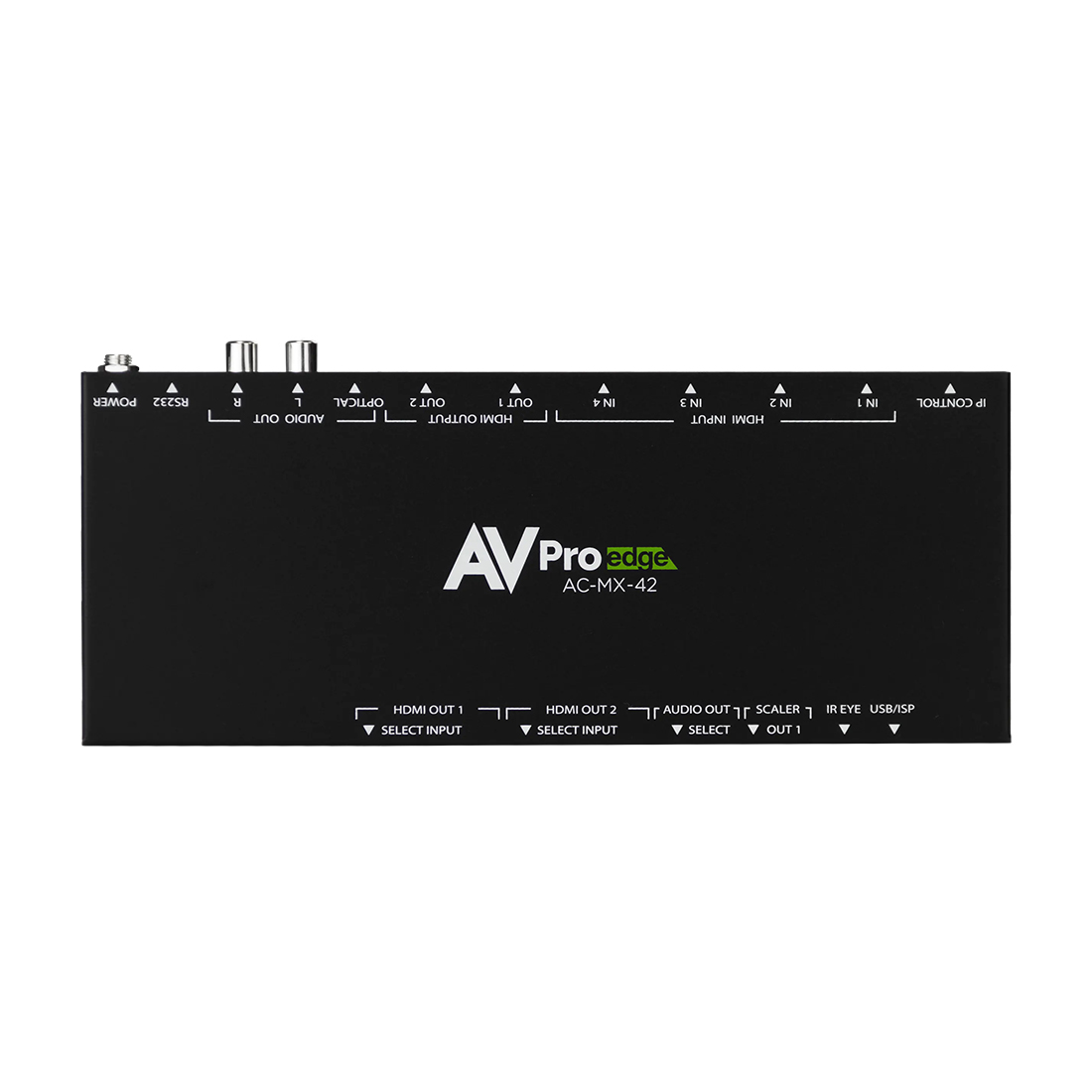

The AC-MX-42 is a 4x2 HDMI matrix switch. This switch allows any source (Blu-ray, satellite receiver, game consoles, PCs, etc. ) to show on connected displays. In addition, this matrix equalizes and amplifies the output to ensure the HDMI signal will transmit through long HDMI cables without losing quality.

MSRP: $1009.00

Manufacturer: AVPro Edge

SKU: AC-MX-42

Overview
Specifications

Features

Supports HDMI 2.0(a/b), HDCP 2.3, up to 4K video resolution, and up to 18Gbps bandwidth
Allows any source to show on any connected displays
Equalizes and amplifies the output to ensure the HDMI signal will transmit through long HDMI cables without loss of quality
Ability to create custom EDID strings to perfect signal coming from the source or scale an image to work with a legacy display, all from an easy to use interface
Ability to bypass AVRs and send uncompressed video signals to displays and projectors
Up and downscaling technology is managed on HDMI output 1
29 onboard EDIDs
User can extract 2 channel audio from the L/R ports

Specs

HDMI 2.0(a/b)

18Gbps Bandwidth Support

4K60 4:4:4 Support

Full HDR Support (HDR 10 & 12 Bit)

Dolby Vision, HDR10+ and HLG Support

HDCP 2.3 (and all earlier versions supported)

4K > 1080p Down Scaler (Out 1)

Perfect AVR Bypass deliver 18Gbps to Display and uncompressed audio to AVR

Advanced EDID Management

IR, RS-232 and LAN Control Options

Digital Toslink Out (7CH PCM, DD, DTS)

Balanced Analog Out (2CH PCM)

Down-scaling mode for mixed systems

Driver Support for Crestron, C4, RTI, ELAN and more

Extracted Audio Supports DD+, DTS Master Audio on Toslink

Extracted Audio bound to output 1 or 2

Dimensions

Size H x D x W	.9 x 3.7 x 9.17
Shipping Size H x D x W	3 x 7.25 x 12.5
Weight	2 lbs
Shipping weight	5 lbs

Features

Supports HDMI 2.0(a/b), HDCP 2.3, up to 4K video resolution, and up to 18Gbps bandwidth
Allows any source to show on any connected displays
Equalizes and amplifies the output to ensure the HDMI signal will transmit through long HDMI cables without loss of quality
Ability to create custom EDID strings to perfect signal coming from the source or scale an image to work with a legacy display, all from an easy to use interface
Ability to bypass AVRs and send uncompressed video signals to displays and projectors
Up and downscaling technology is managed on HDMI output 1
29 onboard EDIDs
User can extract 2 channel audio from the L/R ports
