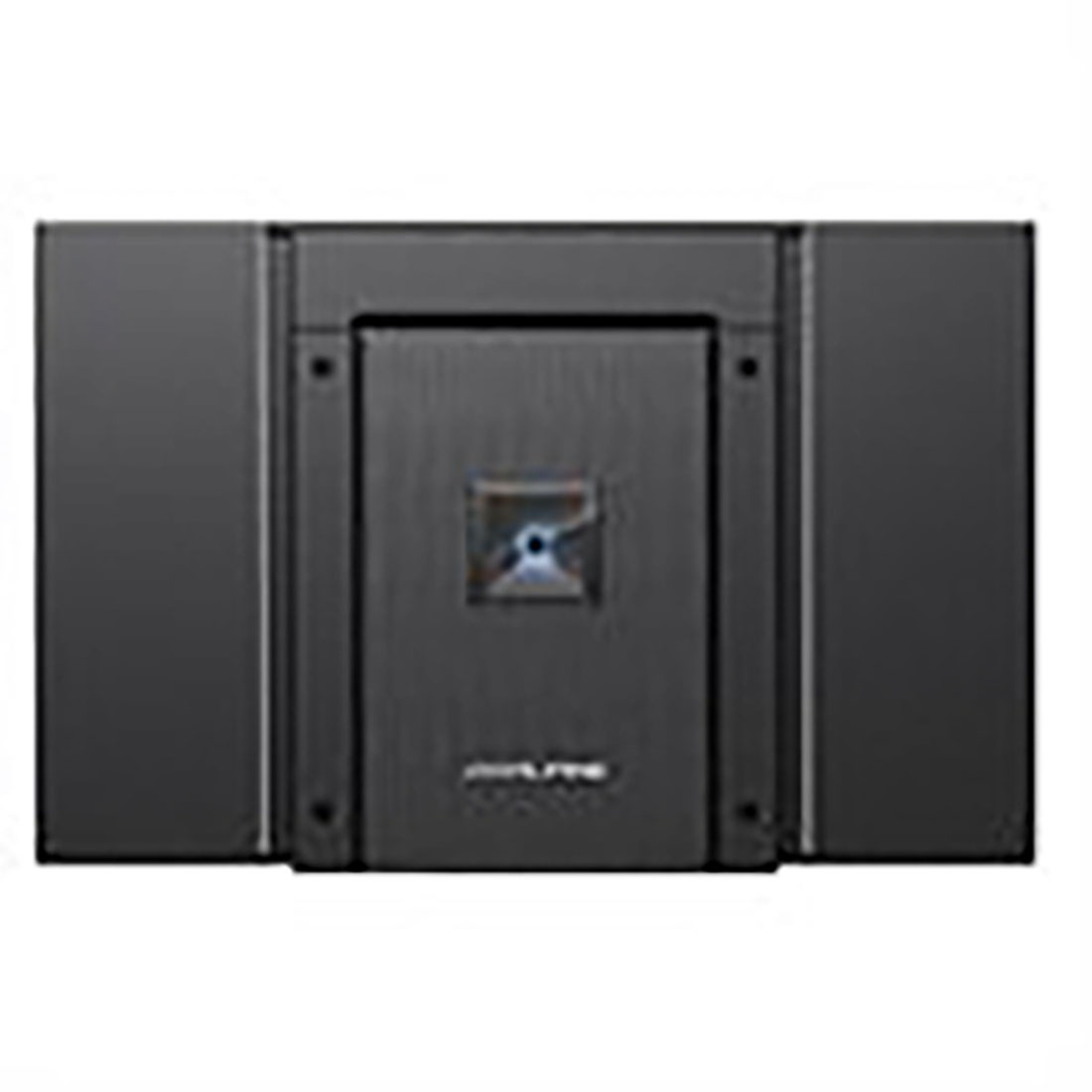

Alpine Status Series Mono Subwoofer Amplifier, 800 watts RMS at 2 ohms

With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.
MSRP: $800.00
Manufacturer: Alpine
SKU: HDA-M80
Features
  • Plays high-resolution music at a high quality, studio like level paired with a low frequency impact
  • Power handling up to 800 watts RMS
  • The tuning controls are protected by a removable top panel
  • Includes adjustable low-pass, subsonic, and bass boost controls that shape the amplified signal to match your specific subwoofer, for the best sound possible
  • All connections can be found on one side of the amp with speaker and wire plugs, making install or removal easy

Specs

RMS Power Output (Watts x Channels)500 x 1
Power at 2 Ohms (Watts x Channels)800 x 1
Minimum Impedance Unbridged2
Minimum Impedance2
Frequency Response8-400 Hz
THD at Rated RMS Power0.07%
Signal to Noise Ratio107 dB
Input Voltage14.4v
Amplifier ClassD
Low-Pass Crossover Frequency50-400 Hz
Low-Pass Slope (dB/octave)24 dB/octave
Bass Boost0-12 dB
Bass Boost Frequency50 Hz
Fuse Rating90
Preamp Outputs2



Dimensions

Size H x W x D1.9” x 10.5” x 6.5”



Product Files
MANUALS
OTHER FILES
Features
  • Plays high-resolution music at a high quality, studio like level paired with a low frequency impact
  • Power handling up to 800 watts RMS
  • The tuning controls are protected by a removable top panel
  • Includes adjustable low-pass, subsonic, and bass boost controls that shape the amplified signal to match your specific subwoofer, for the best sound possible
  • All connections can be found on one side of the amp with speaker and wire plugs, making install or removal easy
}
