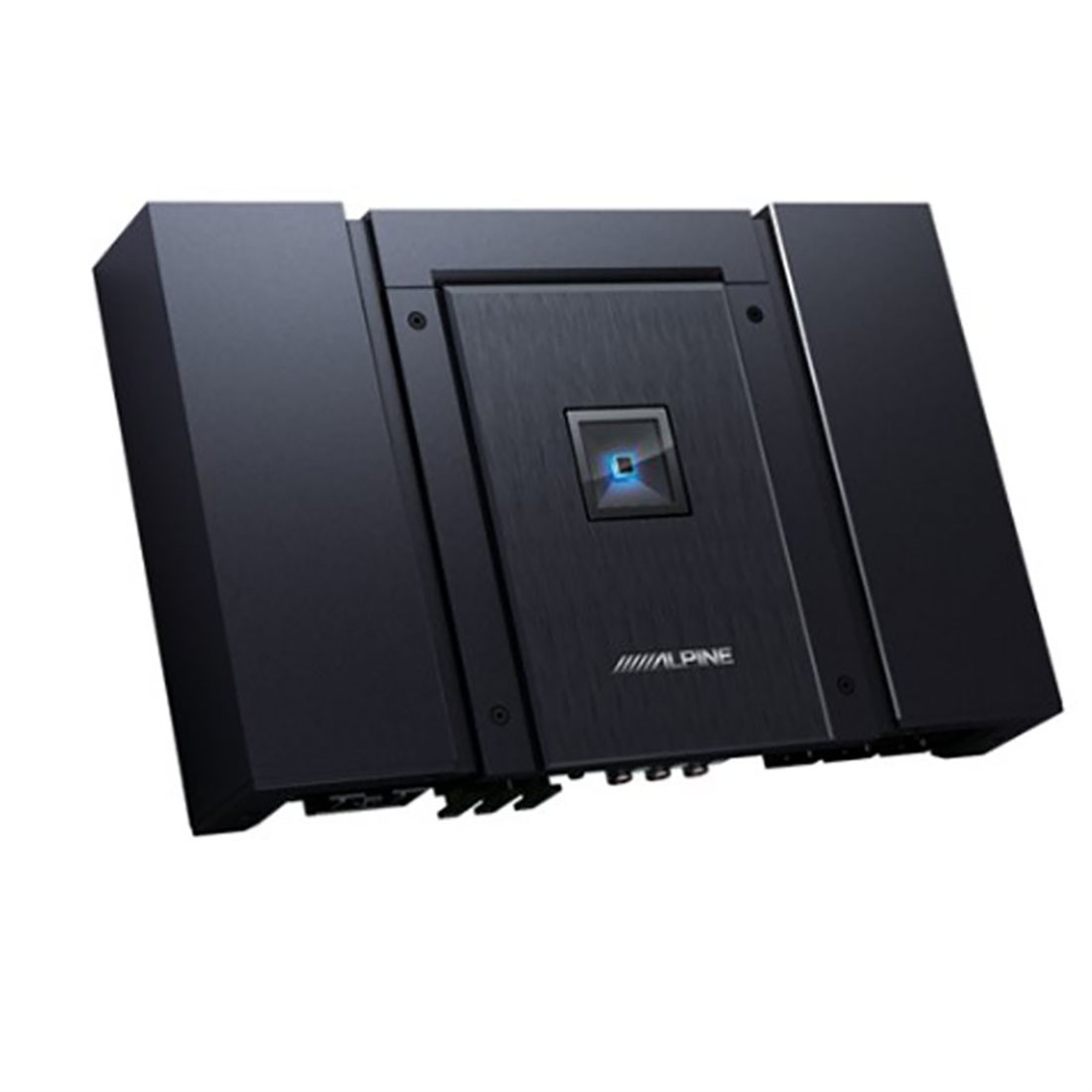

Alpine Status Series 5 Channel Amplifier, 75w x 4 at 4 Ohm and 500w x 1 at 2 Ohm

With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.
MSRP: $1320.00
Manufacturer: Alpine
SKU: HDA-V90
Features
  • Hi-Res Audio playback (192kHz/24Bit)
  • 5-Channel Amplifier
  • High-Efficiency Digital Circuit Design
  • Alpine’s Dual Negative Feedback Control Circuit
  • High Bandwidth Amplifier
  • Alpine’s Premium Class D Circuit Design
  • Copper Plated Chassis
  • Black Circuit Board
  • One-Sided Terminal Layout
  • Top Panel Sound Controls
  • Quick Connect Power and Speaker Terminals
  • Optional Remote Bass Knob Compatible- RUX-KNOB.2
Specs
  • Power Rating: 14.4V
  • 75W x 4 + 300W x 1 @ 4O
  • 100W x 4 + 500W x 1 @ 2O
  • Bridged: 200W x 2 @ 4O
  • THD+N: 0.02%
  • Frequency Response: 8-60kHz (-3dB)
  • Variable High pass / Low pass crossover
Dimensions
  • Size: 11.4375” x 7.5” x 2.125”
What’s in the Box
  • HDA-V90 5-Channel Amplifier
  • Owner’s manual
  • “Birth sheet” that certifies by measurement the actual power of the amplifier in the box
  • 4 Screws for amplifier mounting to the vehicle
  • 2pcs. Mount bracket w/ 4 Screws for attachment to the amplifier
  • 3pcs. Allen wrench for amplifier connection & installation – Sizes: 2mm/2.5mm/4mm
  • 1pc. Quick connector block for Power/Ground/Remote wires
  • 3pcs. Quick connector block for Speaker wires

Get a 2025 Alpine Product Catalog — Add it to your order now

Specs

Power Rating14.4V
75W x 4 + 300W x 1 @ 4O
100W x 4 + 500W x 1 @ 2O
Bridged200W x 2 @ 4O
THD+N0.02%
Frequency Response8-60kHz (-3dB)
Variable High pass / Low pass crossover



Dimensions

Size11.4375” x 7.5” x 2.125”



Product Files
MANUALS
OTHER FILES
Features
  • Hi-Res Audio playback (192kHz/24Bit)
  • 5-Channel Amplifier
  • High-Efficiency Digital Circuit Design
  • Alpine’s Dual Negative Feedback Control Circuit
  • High Bandwidth Amplifier
  • Alpine’s Premium Class D Circuit Design
  • Copper Plated Chassis
  • Black Circuit Board
  • One-Sided Terminal Layout
  • Top Panel Sound Controls
  • Quick Connect Power and Speaker Terminals
  • Optional Remote Bass Knob Compatible- RUX-KNOB.2
Specs
  • Power Rating: 14.4V
  • 75W x 4 + 300W x 1 @ 4O
  • 100W x 4 + 500W x 1 @ 2O
  • Bridged: 200W x 2 @ 4O
  • THD+N: 0.02%
  • Frequency Response: 8-60kHz (-3dB)
  • Variable High pass / Low pass crossover
Dimensions
  • Size: 11.4375” x 7.5” x 2.125”
What’s in the Box
  • HDA-V90 5-Channel Amplifier
  • Owner’s manual
  • “Birth sheet” that certifies by measurement the actual power of the amplifier in the box
  • 4 Screws for amplifier mounting to the vehicle
  • 2pcs. Mount bracket w/ 4 Screws for attachment to the amplifier
  • 3pcs. Allen wrench for amplifier connection & installation – Sizes: 2mm/2.5mm/4mm
  • 1pc. Quick connector block for Power/Ground/Remote wires
  • 3pcs. Quick connector block for Speaker wires

Get a 2025 Alpine Product Catalog — Add it to your order now

Customers who bought this item also bought

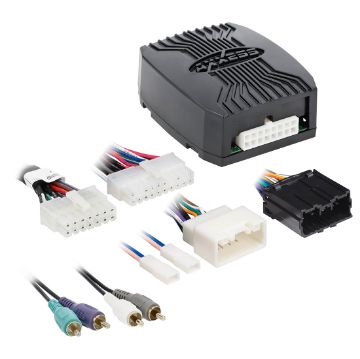

Picture of Axxess 2006-12 Mitsubishi Amp Interface
