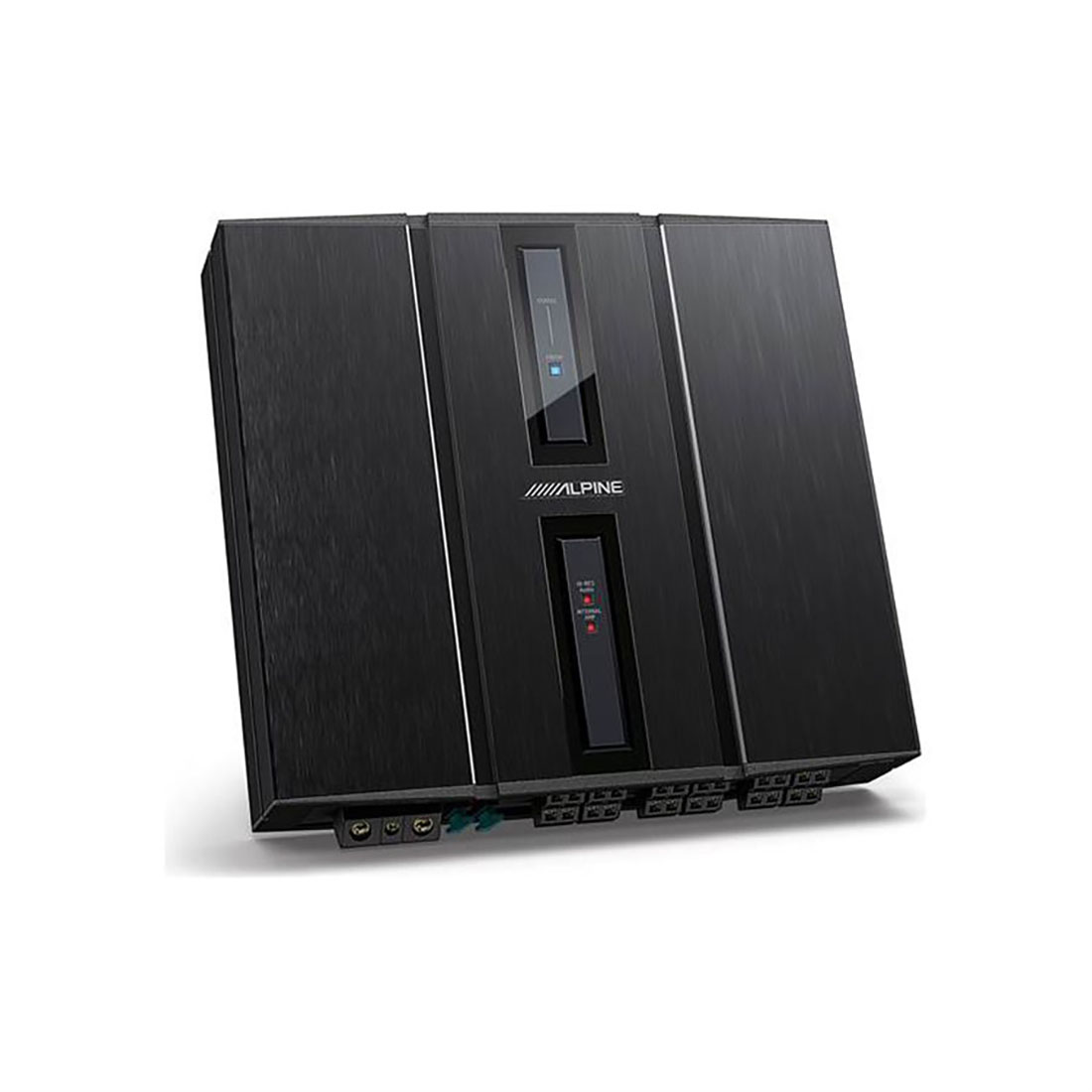

Alpine Status Series 12-Channel Car Amplifier with DSP

With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.
MSRP: $2400.00
Manufacturer: Alpine
SKU: HDP-D90
Features
  • High-Performance 12-Channel Digital Sound Processor Amplifier
  • Hi-Res Audio Playback
  • PC Tuning Application
  • Selectable pre-configured sound system configurations
  • Embedded RTA signals for sound tuning
  • Bluetooth audio streaming with included external module
  • Optional Controller
What’s in the box
  • 12ch Digital Signal Processor Unit
  • PWR/GND Harness
  • External Bluetooth Module

Get a 2025 Alpine Product Catalog — Add it to your order now

Specs

Hi-Res Audio Playback (192kHz/32Bit)
14-Channel Outputs (All DSP control)
Inputs12-Channel Hi-level/2-Channel RCA/Optical (SPDIF)/Coaxial (Digital)
Outputs10-Channel RCA output/ 12-Channel High-Level amplified outputs (50W x 8 @4ohm + 80W x 4 @4ohm)
31 Band Graphic or Parametric EQ
Channel mixing by Matrix Input Summing
Sampling Rate (Internal)192kHz/32Bit
S/N>110dB, THD<0.001%
Hi pass/low pass crossover per channel
Time correctionup to 7mm delay per channel
Sigma DSP (ADAU1467x2)



Product Files
MANUALS
OTHER FILES
Features
  • High-Performance 12-Channel Digital Sound Processor Amplifier
  • Hi-Res Audio Playback
  • PC Tuning Application
  • Selectable pre-configured sound system configurations
  • Embedded RTA signals for sound tuning
  • Bluetooth audio streaming with included external module
  • Optional Controller
What’s in the box
  • 12ch Digital Signal Processor Unit
  • PWR/GND Harness
  • External Bluetooth Module

Get a 2025 Alpine Product Catalog — Add it to your order now
