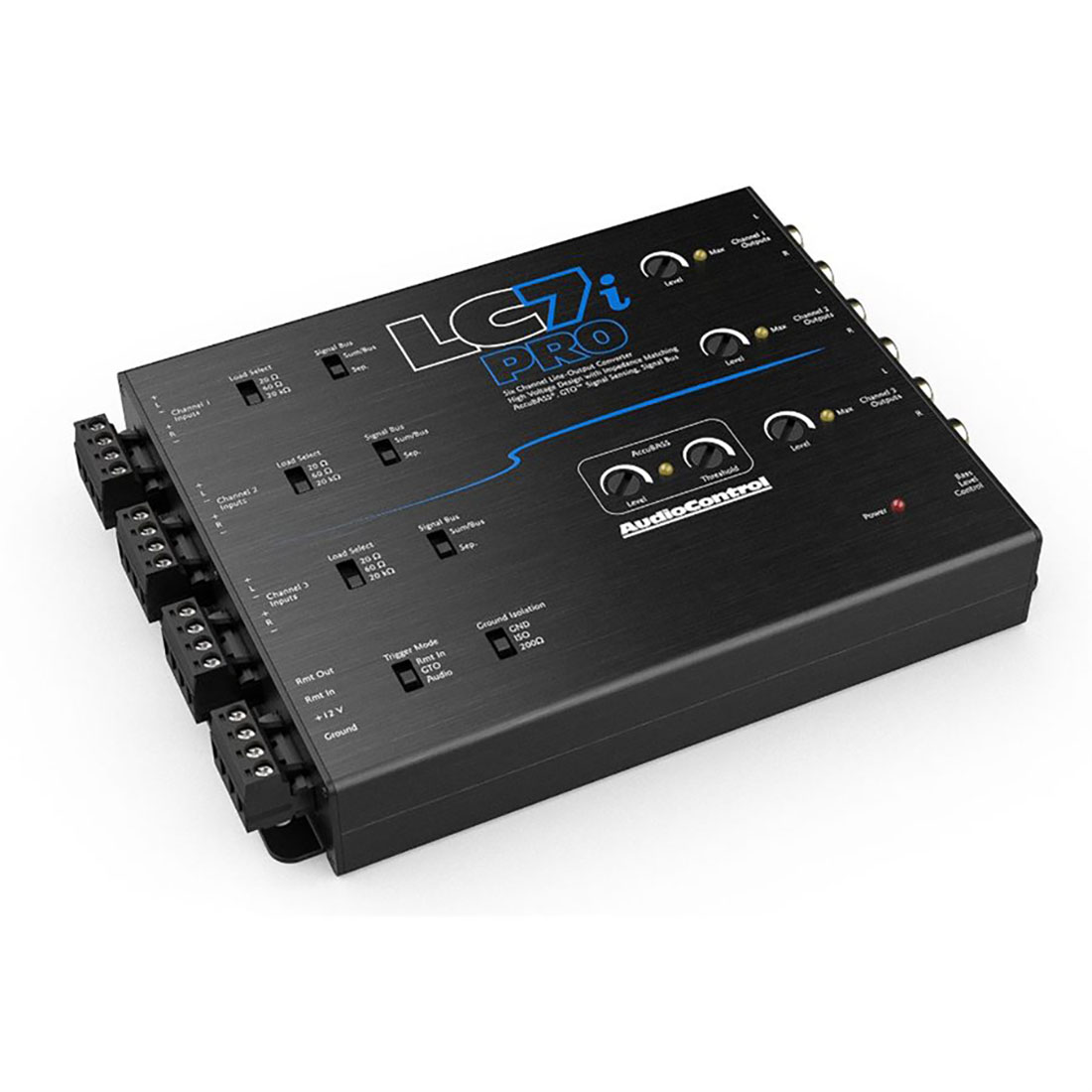

AudioControl 6 Ch Line Converter w/ACR-1, Loaded Resistors

AudioControl 6 Ch Line Converter w/ACR-1, Loaded Resistors
MSRP: $439.00
Manufacturer: AudioControl
SKU: LC7IPRO
Features
  • Six channels of active speaker-level inputs (up to 40V input handling)
  • Fixed and variable outputs with discrete-level controls
  • AccuBASS® processing for correction of bass roll-off
  • Load selection switch
  • GTO™ signal sensing
  • Ground Isolation Switch
  • ACR-1 dash remote included
  • Compact design
Specs
  • Speaker level input: 1 (6 channels)
  • Maximum speaker level input: 40 vrms / 400 W (20kΩ setting)
  • Input Impedance (selectable): 200Ω, 60Ω, 20kΩ
  • Preamp Outputs: 6 (4 channels main, 2 channels bass)
  • Maximum Output Level: 9.5Vrms/13V peak
  • Output Gain: +/- 15 dB
  • Output Impedance: 150Ω
  • Total Harmonic Distortion: 0.01%
  • Signal to Noise: >124 dB
  • Frequency Response: 20Hz-20kHz
  • Current Draw: 330 mA
  • Recommended Fuse Rating: 2 A
Dimensions
  • Size Including Speaker Connectors (L x D x H): 7” x 5.1” x 1.14”
  • Weight: 1.15 lbs.
What’s in the Box
  • LC7iPRO
  • ACR-1
  • 20’ Phone Cable
  • Speaker and Power Connectors
  • Manual
  • Warranty

Specs

Speaker level input1 (6 channels)
Maximum speaker level input40 vrms / 400 W (20kΩ setting)
Input Impedance (selectable)200Ω, 60Ω, 20kΩ
Preamp Outputs6 (4 channels main, 2 channels bass)
Maximum Output Level9.5Vrms/13V peak
Output Gain+/- 15 dB
Output Impedance150Ω
Total Harmonic Distortion0.01%
Signal to Noise>124 dB
Frequency Response20Hz-20kHz
Current Draw330 mA
Recommended Fuse Rating2 A



Dimensions

Size Including Speaker Connectors (L x D x H)7” x 5.1” x 1.14”
Weight1.15 lbs.



Features
  • Six channels of active speaker-level inputs (up to 40V input handling)
  • Fixed and variable outputs with discrete-level controls
  • AccuBASS® processing for correction of bass roll-off
  • Load selection switch
  • GTO™ signal sensing
  • Ground Isolation Switch
  • ACR-1 dash remote included
  • Compact design
Specs
  • Speaker level input: 1 (6 channels)
  • Maximum speaker level input: 40 vrms / 400 W (20kΩ setting)
  • Input Impedance (selectable): 200Ω, 60Ω, 20kΩ
  • Preamp Outputs: 6 (4 channels main, 2 channels bass)
  • Maximum Output Level: 9.5Vrms/13V peak
  • Output Gain: +/- 15 dB
  • Output Impedance: 150Ω
  • Total Harmonic Distortion: 0.01%
  • Signal to Noise: >124 dB
  • Frequency Response: 20Hz-20kHz
  • Current Draw: 330 mA
  • Recommended Fuse Rating: 2 A
Dimensions
  • Size Including Speaker Connectors (L x D x H): 7” x 5.1” x 1.14”
  • Weight: 1.15 lbs.
What’s in the Box
  • LC7iPRO
  • ACR-1
  • 20’ Phone Cable
  • Speaker and Power Connectors
  • Manual
  • Warranty
