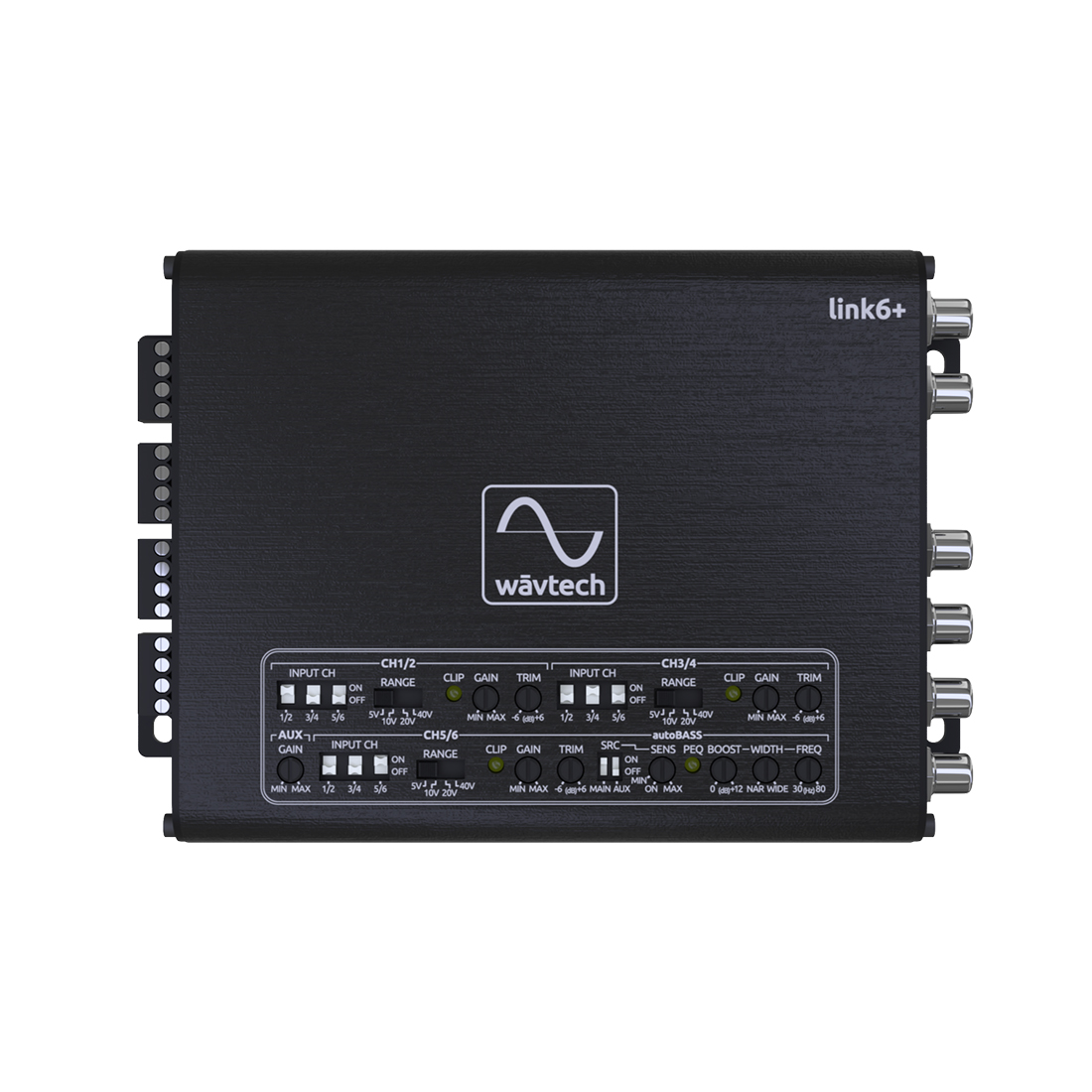

Wavtech LOC 6ch Summing Processor

Name: Wavtech LOC 6ch Summing Processor
SKU: LINK6+
Availability: InStock

When upgrading your audio system in a typical front, rear and subwoofer set-up, the link6+ is the perfect tool for the job. Getting its input from your factory stereo’s front and rear speaker signal, it can provide front, rear and subwoofer outputs for your aftermarket amplifier or amplifiers.

MSRP: $299.95

Manufacturer: Wavtech

SKU: LINK6+

Overview
Specifications
Attachments

Features

6-Channel Line Output Converter
6-Channel Matrix Summing Processor (6-in/6-Out)
Bass Roll-off correction via autoBASS (patent pending)
Parametric EQ (PEQ)
Multi-Function Remote Level/Source Control
- Master Volume Control
- Fader Control
- AUX Volume Control
- Independent CH5/6 Level
- Source/Function Select
AUX 3.5mm Input
2/4/6ch Input Select (Direct, Copy or Sum)
Start-Stop Vehicle Compatible
Matrix Summing with +/-6dB Level Trim
Never Zero Ch5/6 Output with Front & Rear Input
Adaptive OEM Load Technology
Differential Balanced Inputs
Low Impedance Outputs
Variable Gain Adjustments w/Clip LEDs
Auto Turn-On via DC-Offset or Audio Signal Detect
Generated +12V Remote Output
Locking Detachable Power/Speaker Terminals
Professional Grade Panel Mount RCA’s
Compact Aluminum Chassis w/Detachable Mounting Tabs

Specs

Output Voltage (Max)	> 10 Vrms
Output Impedance	< 50Ω
SPK Input Sensitivity	2-20 Vrms, 4-40 Vrms
AUX Input Sensitivity	0.5-5 Vrms
Max Input Voltage (SPK)	40 Vrms
Frequency Response	< 10 Hz to 100 kHz
THD+N (SPK/AUX)	< 0.05% / < 0.05%
S/N (SPK/AUX)	> 114 dBA / > 113 dBA
Turn-On Trigger	+12V, DC-offset & Audio Detect
Generated +12V Output	> 500 mA

Dimensions

Chassis

1.1" x 4.7" x 5.8"

Product Files

MANUALS

LINK6+ Manual
