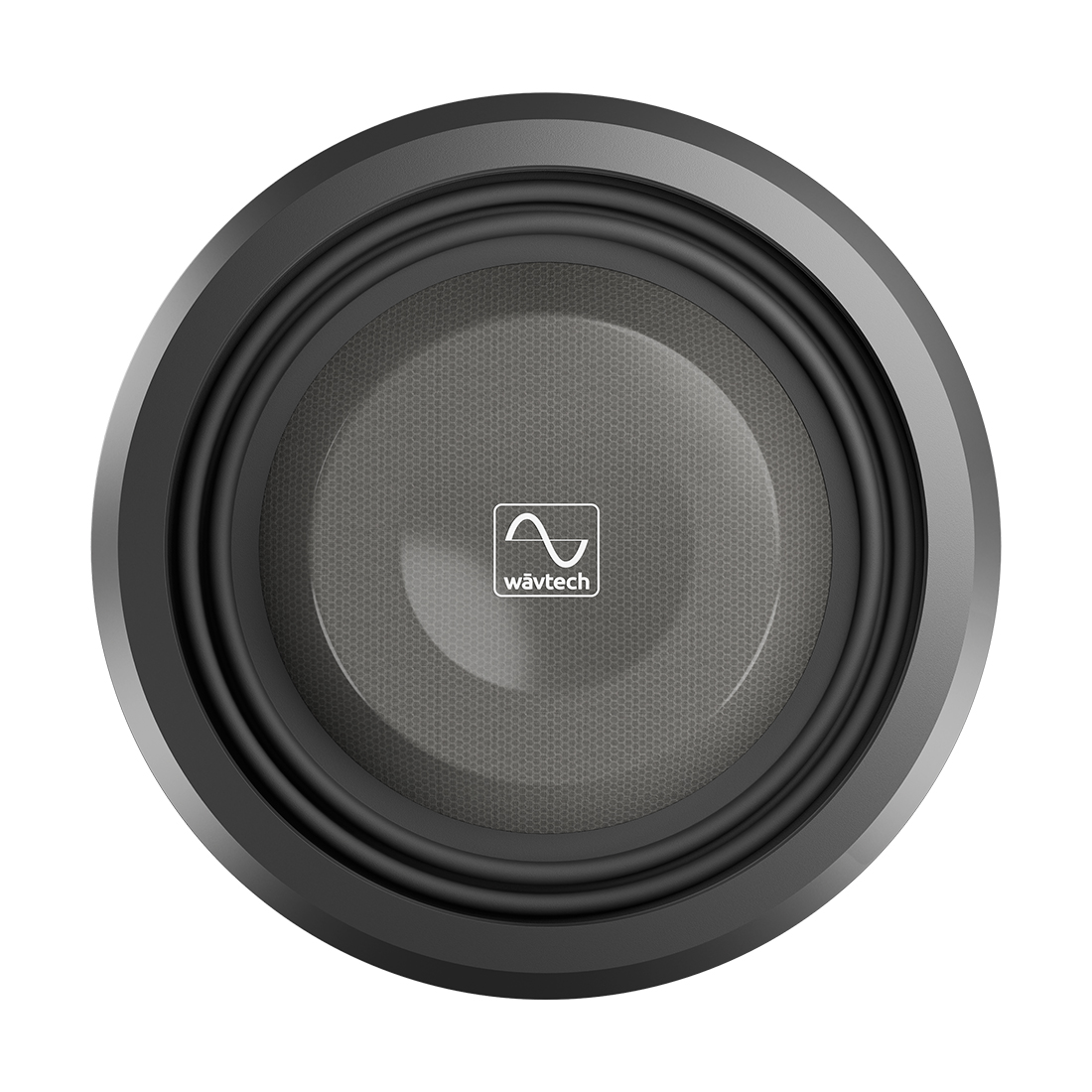

Wavtech 10" Shallow Sub SVC 4-Ohm w/Grille

Wavtech's Patent Pending design changes the game for what is possible with a shallow subwoofer.  With a mounting depth of less than 3”, if it won’t fit in the desired location, you probably aren’t putting a subwoofer there.
MSRP: $799.95
Manufacturer: Wavtech
SKU: THINPRO10-4

Features

  • 750 Watts RMS Power Handling
  • 4-Layer Winding on Vented Polymide Composite Former
  • Protective Grille Included
  • 2.9" Mounting Depth
  • 4.5" High-Temp Voice Coil
  • Honeycomb Nomex® and Glass Fiber Cone
  • FEA Optimized Dual-Gap Motor Structure
  • Double-Roll NBR Surround
  • Mirrored Internal NBR Spiders
  • 8AWG Push Terminals
  • Vented Cast Aluminum Frame

Specs

  • Nominal Impedance: 4Ω
  • Frequency Response:
  • Free Air Resonance: 32Hz
  • Equivalent Stiffness: 17L (0.6 ft3)
  • Voice Coil DC Resistance: 3.35Ω
  • Voice Coil Inductance: 4.73mH
  • Mechanical Q: 4.46
  • Electrical Q: 0.59
  • Total Q 0.52
  • Sensitivity (1W/1m): 82dB
  • Power Handling: 750WRMS / 2250WPeak
  • Recommended Power Range: 250W-750WRMS

Dimensions

  • 9.125"
  • Voice Coil Diameter: 4.5"
  • 2.875" Mounting Depth

Features

  • 750 Watts RMS Power Handling
  • 4-Layer Winding on Vented Polymide Composite Former
  • Protective Grille Included
  • 2.9" Mounting Depth
  • 4.5" High-Temp Voice Coil
  • Honeycomb Nomex® and Glass Fiber Cone
  • FEA Optimized Dual-Gap Motor Structure
  • Double-Roll NBR Surround
  • Mirrored Internal NBR Spiders
  • 8AWG Push Terminals
  • Vented Cast Aluminum Frame
