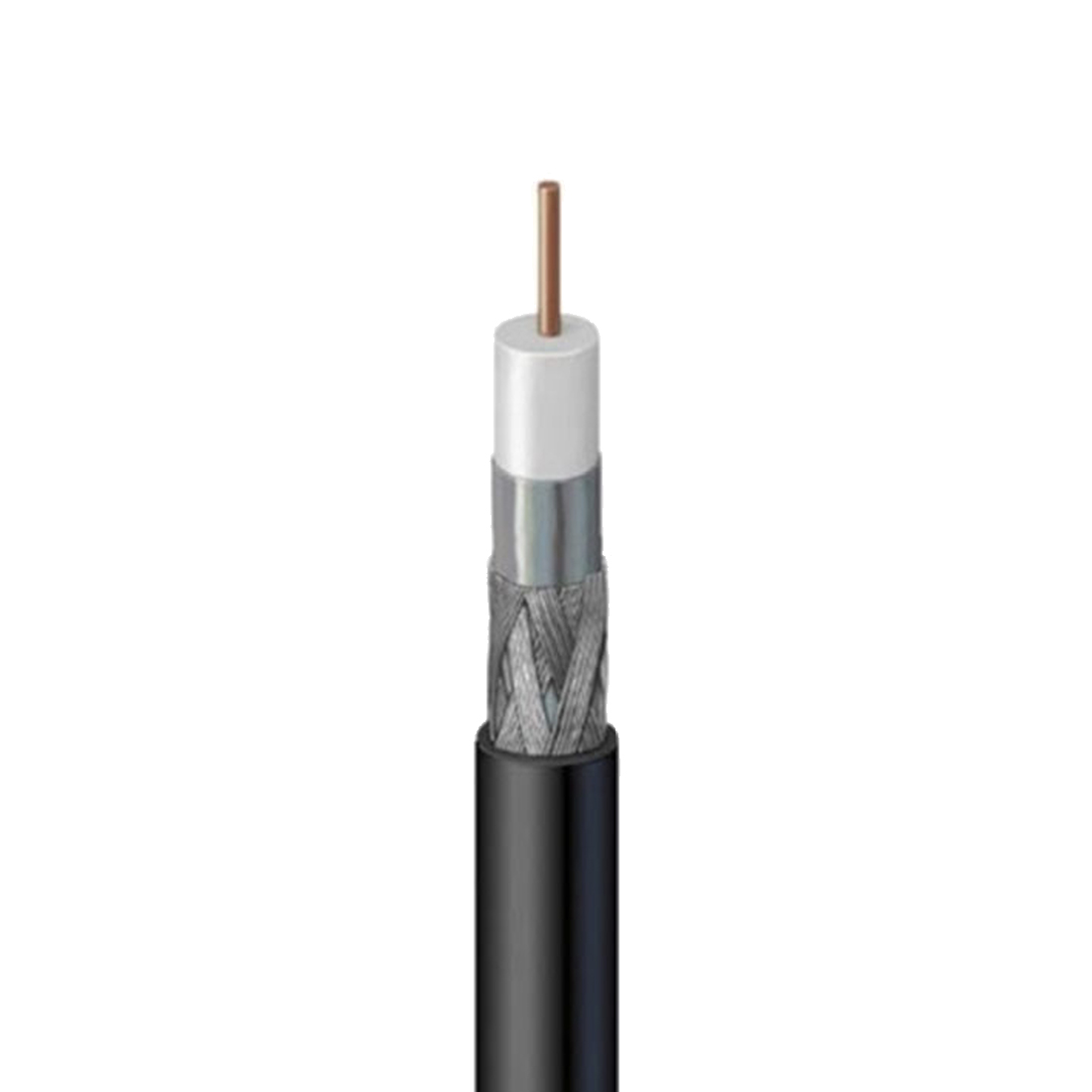

Wavenet RG6 Single Coax Copper Clad Steel 1000' Reelex II Pullbox (black) NON-DISH Approved

Wavenet's RG6/U Dual Shield CCS Coax cables are ideal for residential and commercial antenna, cable television and satellite installations.
MSRP: $133.99
Manufacturer: Wavenet
SKU: RG6URBK4-CCS

Features

  • RG6/U CATV COAX
  • 18 AWG CCS
  • 60% AL BRAID
  • UL CM
  • EN50575:2014 Eca
  • APPLICABLE STANDARDS:
    • RG-6/U 60% CMR CATV 75 Ω Coaxial Cable
    • Reference Standard: SCTE IPS-SP-001 / UL 1655, UL 13, UL 444, ROHS
  • PVC JACKET-BLACK
  • 1000FT/305M BOX

Specs

Conductor Copper Clad Steel
AWG 18
Insulation Material Foam PE
Braid Shield Aluminum
Coverage Area 60%
Jacket Material PVC
Temperature Rating -20 to 60 (°C)
Impedance 75 (±3.0 Ohms)
Capacitance 15.5 (pF/ft.)
Conductor DCR@20°C 28.6 (ohms/1000ft)
Velocity of Propagation 84 (%)
RoHS Compliant Yes



Dimensions

Conductor Diameter 0.040"
Insulation Diameter 0.186"
Insulation Nominal Thickness 0.073"
Braid Diameter 0.213"
Nominal Thickness 0.2716"
Cable Diameter 0.0295"
Length 1000'
Nominal Weight 30 lbs



Product Files
SPEC SHEETS

Features

  • RG6/U CATV COAX
  • 18 AWG CCS
  • 60% AL BRAID
  • UL CM
  • EN50575:2014 Eca
  • APPLICABLE STANDARDS:
    • RG-6/U 60% CMR CATV 75 Ω Coaxial Cable
    • Reference Standard: SCTE IPS-SP-001 / UL 1655, UL 13, UL 444, ROHS
  • PVC JACKET-BLACK
  • 1000FT/305M BOX
