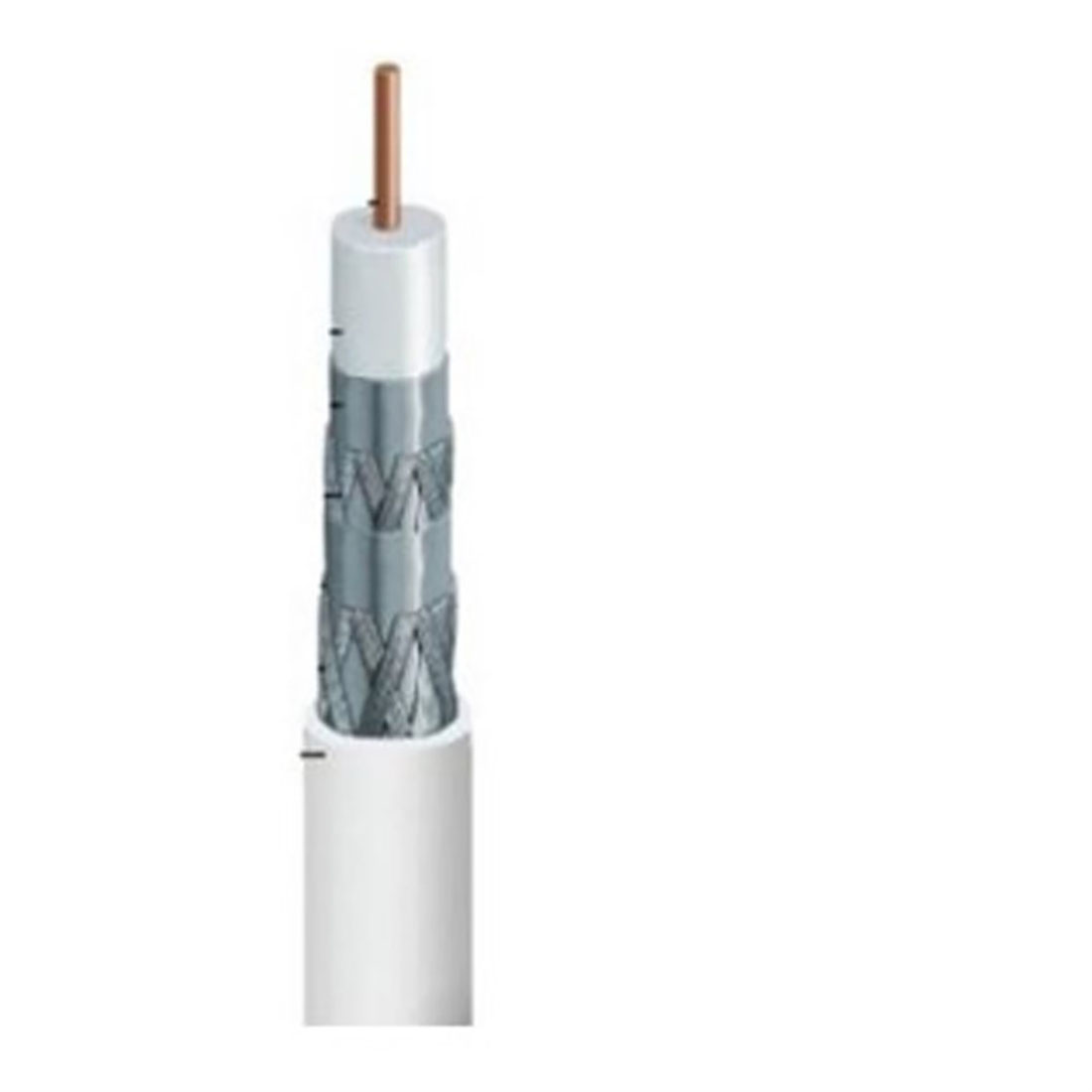

Wavenet RG6 QUAD SHIELD PLENUM 1,000' REELEX II(white)

• RG-6 Quad Plenum CATV 75 Ω Coaxial Cable

• Conductor: Solid/Copper Clad Steel
• AWG: 18
• Insulation Material: Foam FEP
• Insulation Diameter: 0.170”
• Diameter: 0.040”
• Inner Shield Foil: Aluminum/Poly Tape
• Inner Shield Braid: Aluminum
• Coverage Area: 60%
• Nom. Diameter: 0.200”
• Outer Shield Foil: Aluminum/Poly Tape
• Outer Shield Braid: Aluminum
• Coverage Area: 40%
• Nom. Diameter: 0.228”
• Jacket Material: Plenum Polymer
• Nominal Thickness: 0.013”
• Cable Diameter: 0.260”
• Nominal Weight: 1000ft/35 lbs.

• Temperature Rating: -20 to 60 (ºC)
• Impedance: 75 (±3.0 Ohms)
• Capacitance: 15.5 (pF/ft.)
• Conductor DCR@20ºC: 28.6 (ohms/1000ft.)
• Velocity of Propagation: 84 (%)
• RoHS Compliant: Yes
• Color: White
• Size: 1000ft

• (1) Wavenet RG6QPWH4

Special Order Only
