Wavenet Lutron QS/M 1,000' REEL(Blue/Orange)

MSRP: $616.00
Manufacturer: Wavenet
SKU: LUTRON-QS/M/1000

Features

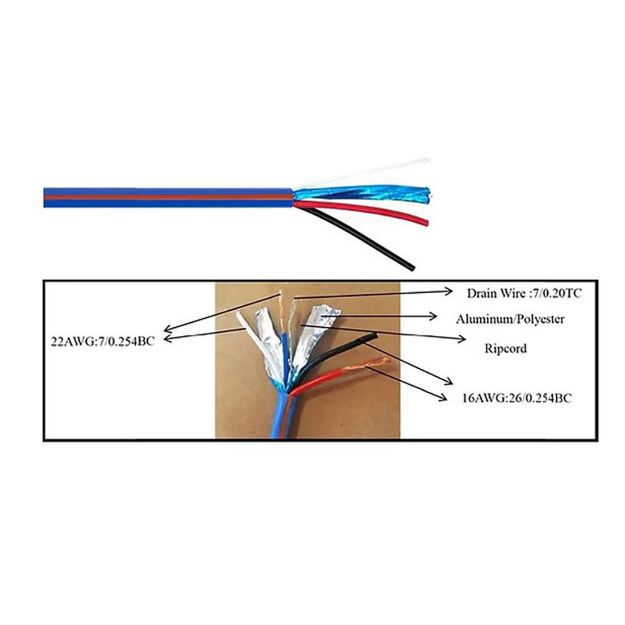

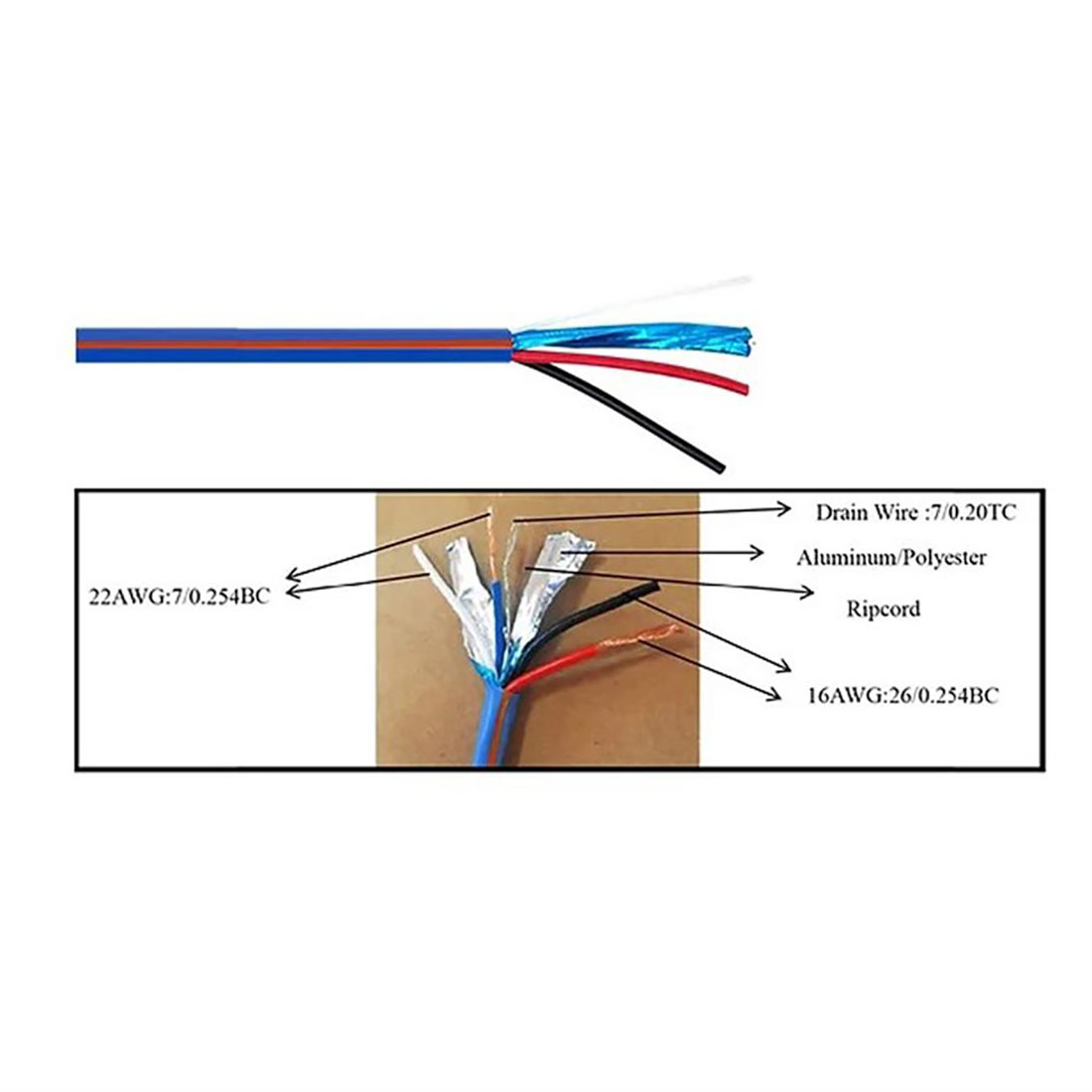

  • (1) 22 AWG 2 conductor with shield and drain + (1) 16 AWG 2 conductor
  • Telephone and other communication circuit such as voice, data, and audio for on premise customer systems


Specs

Rated Voltage300 V
Rated Temperature75 (ยบ C)
Product Standard Certification(UL) CM and c(UL) CMG
Flame TestFT4
Mutual Capacitance19.7 pF/ft
DC Resistance14.80 Ohms/Mft



Colors
Insulation Color Component AWhite and Blue
Insulation Color Component BBlack and Red
Jacket ColorBlue with orange stripe



Dimensions

Size1000ft REEL
Weight40 lbs.



Features

  • (1) 22 AWG 2 conductor with shield and drain + (1) 16 AWG 2 conductor
  • Telephone and other communication circuit such as voice, data, and audio for on premise customer systems
