Wavenet LUTRON 12/2 + 18/1 + 22/2 SHIELDED 1000' REEL(blue/w

MSRP: $1046.00
Manufacturer: Wavenet
SKU: LUTRON-46/QSL/1000

Features

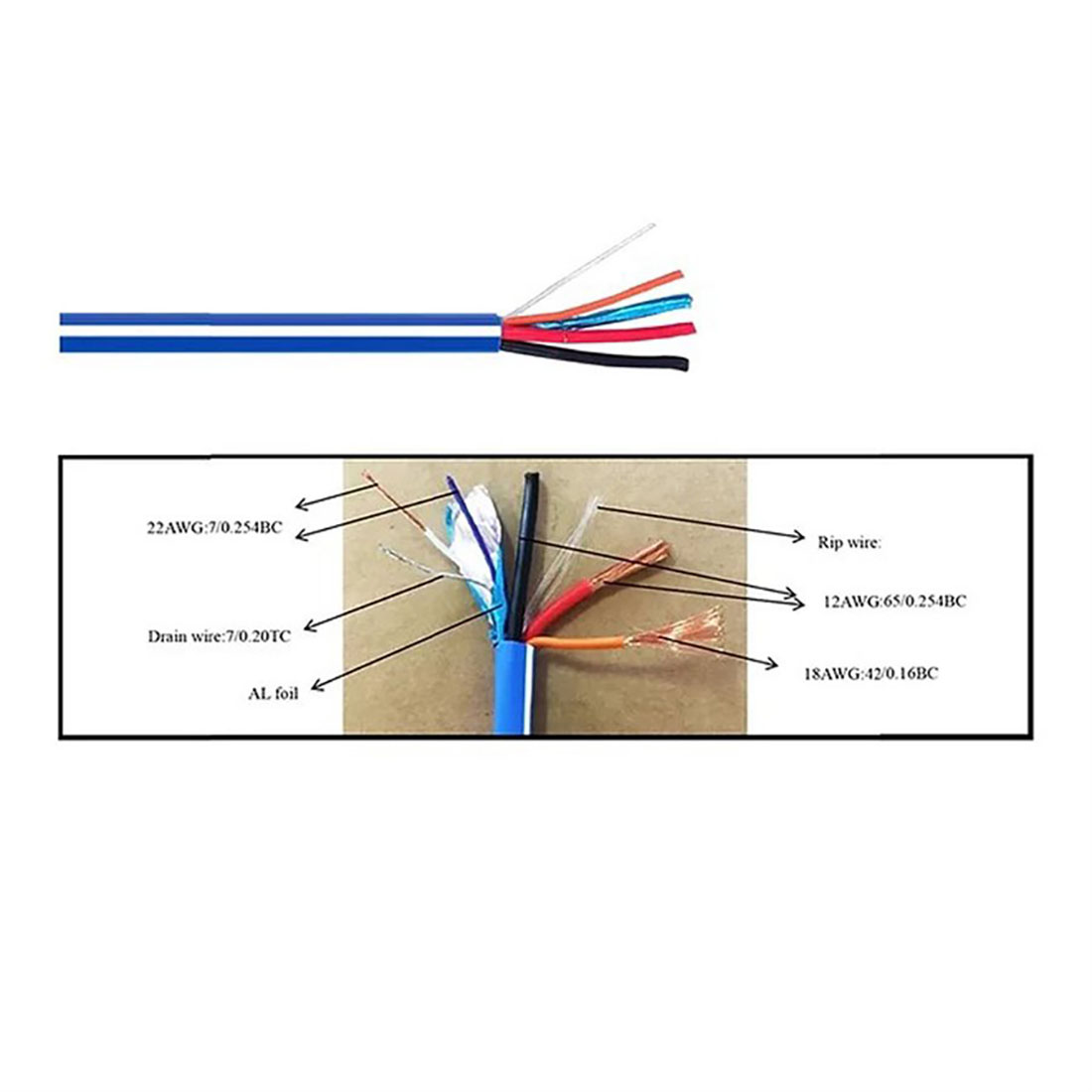

  • (1) 22 AWG 2 conductor with shield and Drain + (1) 12 AWG 2 conductor + (1) 18 AWG 1 conductor
  • Power limited circuit cables for use a fixed wiring within buildings (some are also marked for direct burial) principally for class 3 and class 2 circuits

Specs

Conductor Resistance (18 AWG)≤ 21.9Ω/km
Conductor Resistance (12AWG)≤5.41Ω/km
Conductor Resistance (22 AWG)≤ 55.4Ω/km
Rated Voltage300 (V)
Testing VoltageWire/wire 50Hz1min=1.5KV
Insulation Resistance≤ 50 MΩ/km
Rated Temperature (ºC)75
Product Standard Certificationc(UL)CL3
Flame TestFT4
Colors
Insulation Color Component AOrange
Insulation Color Component BBlack and Red
Insulation Color Component CWhite, Purple
Jacket ColorBlue with white stripe



Dimensions

Size1000ft. Reel
Weight80lbs.
