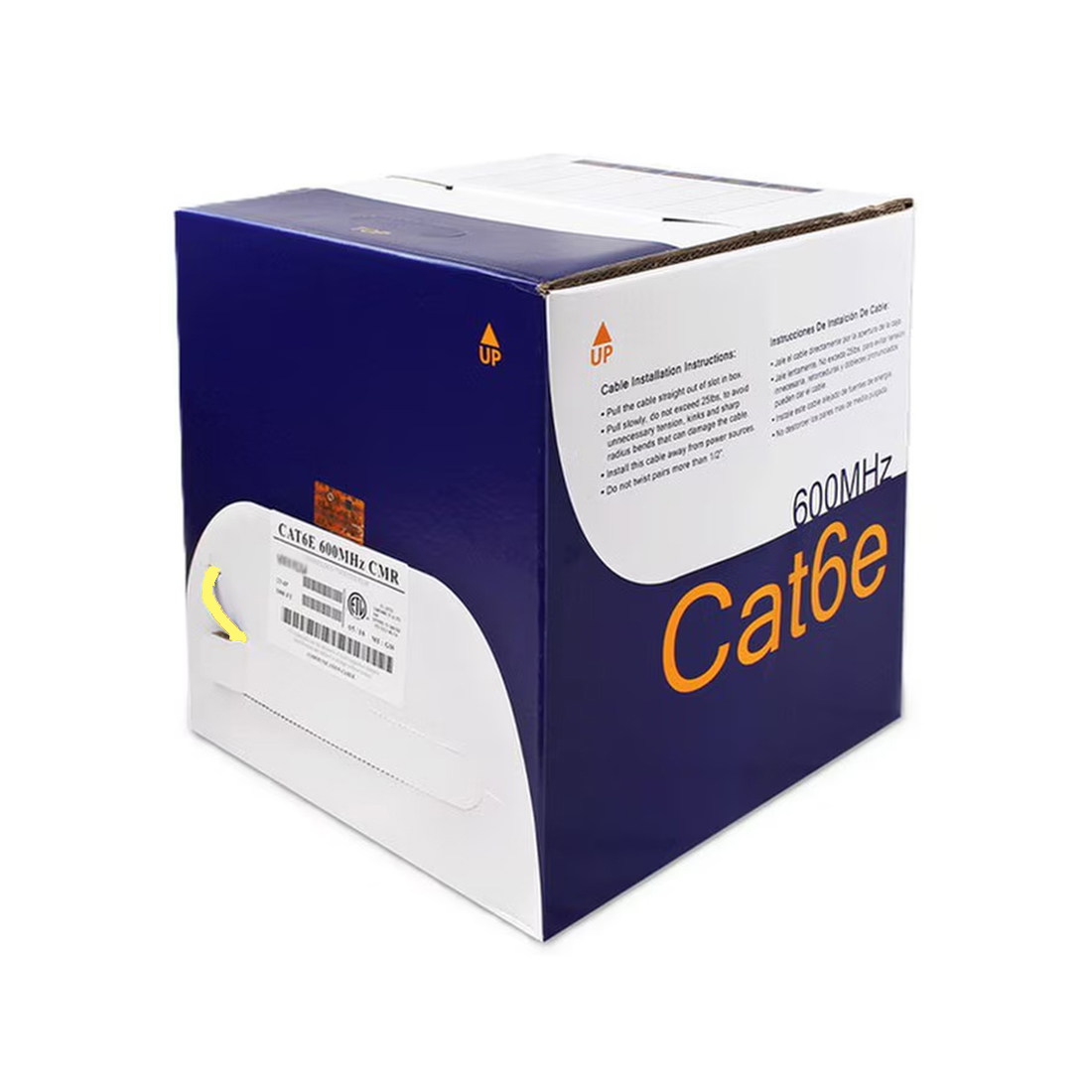

Wavenet Cat 6E PVC SC 600MHZ w/Spline CMR 1,000' Box Reelex(yellow) Pullbox

The Wavenet 6E04URYL4N is a CAT6 UTP data cable featuring 23 AWG solid bare copper conductors, 4 unshielded twisted pairs, and 600 MHz performance. Its CMR-rated white jacket, integrated spline separator, and 1000 ft REELEX II packaging make it ideal for high-speed structured cabling and Gigabit Ethernet installations.
Manufacturer: Wavenet
SKU: 6E04URYL4N

Features

  • High performance data cable
  • 23 AWG solid bare copper conductors
  • 4 Unshielded Twisted Pair
  • Sequential footage marking
  • Spline (pair separator) helps reduces Next-End Crosstalk (NEXT)
  • Performance up to 600MHz
  • Standards:
    • c(ETL) Listed FT4 CMR / FT6 CMP
    • c(ETL) US Verified ANSI/TIA-568-C.2
    • RoHS Compliant

Specs

Color Yellow
Conductor Material Solid Bare Copper
Number of Conductors 4
AWG 23 AWG
Stranding Solid
Insulation Material HDPE
Jacket Material Flame Retardant PVC
Shielding No
Ripcord Yes
Separator Yes
DC Resistance 9.38 Ω / 100m Max. @ 20°C
Resistance Unbalanced 5% Max. @ 20°C
Capacitance Unbalance 330 pF / 100m Max. @ 20°C
Mutual Capacitance 5.6 nF / 100m Max. @ 20°C
Delay Skew 45 nS / 100m Max. @ 20°C
Nominal of Propagation 67%
Temperature Range Installation 0°C to + 75°C
Operating -20°C to + 75°C



Dimensions

Length 1000FT / Reelex II
Overall Diameter 0.040 in. ± 0.0002 in
Average Thickness 0.0088 in
Average Wall Thickness 0.023 in.
Nominal Outer Diameter 0.244 in. ± 0.008 in
Nominal Weight 26 lbs.
