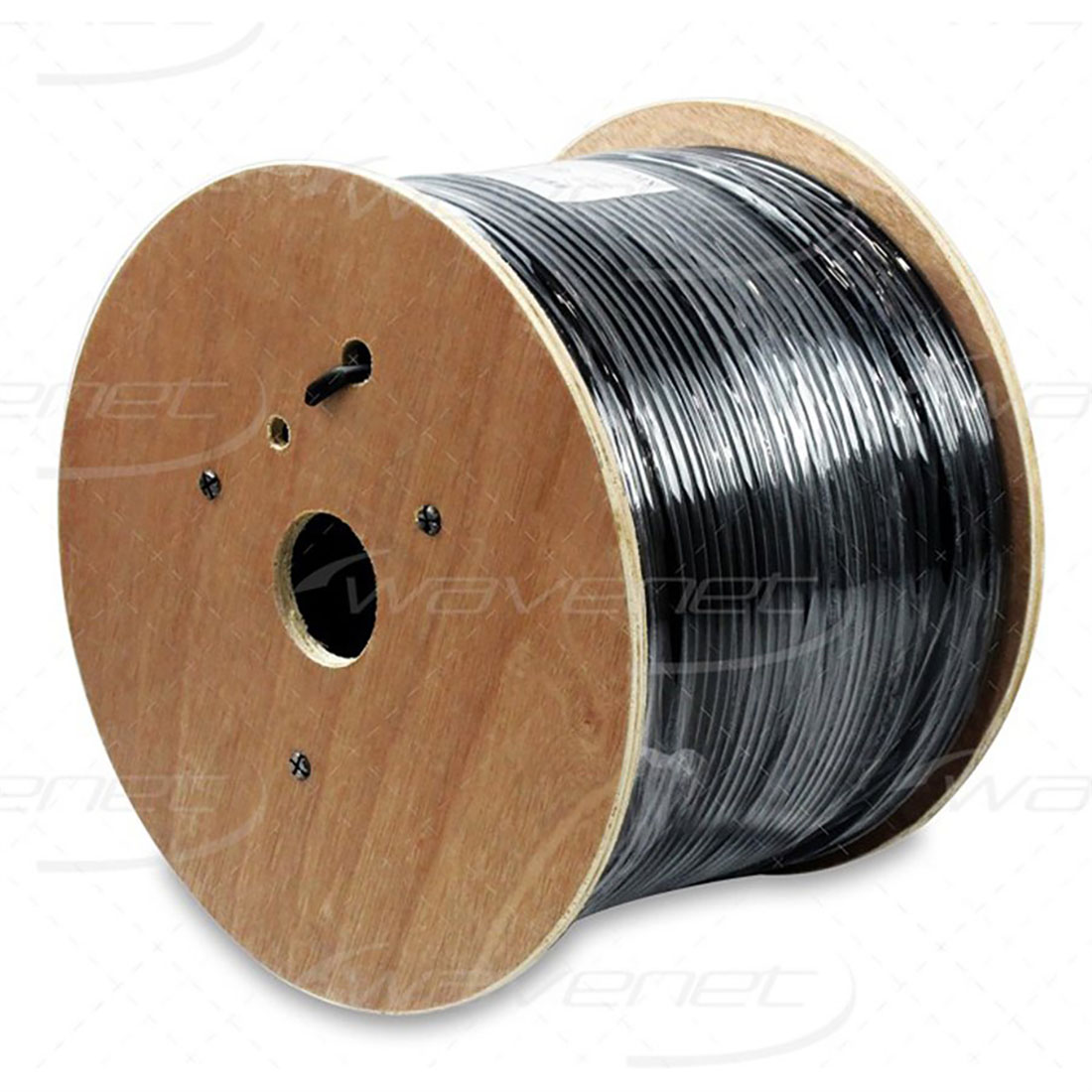

Wavenet Cat 6E Direct Burial PE w/ Waterblock UV Rated 600MHZ 1,000' (black)

Wavenet Cat 6E Direct Burial PE w/ Waterblock UV Rated 600MHZ 1,000' (black)
MSRP: $398.00
Manufacturer: Wavenet
SKU: 6EOSPBK2N
Related Products
Picture of Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)

Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)

C6T
Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)
MSRP: $46.99
Picture of Ethereal Dual Modular Crimping Tool

Ethereal Dual Modular Crimping Tool

CS-CRIMPTOOL
Ethereal Dual Modular Crimping Tool
MSRP: $42.99
Features
  • Meets or exceeds TIA-568-C.2
  • RoHS Compliant
  • ATM 155 Mbps
  • Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4
  • 1000 Mbps 1000BASE-T Gigabit EthernetTM (IEEE 802.3)
  • 16 Mbps Token RingTM (IEEE 802.5)
Specs
Physical Characteristics
  • Conductor Material: Solid Annealed Bare Copper
  • Number of Conductor Pairs: 4
  • Size: 23 AWG
  • Stranding: Solid
  • Insulation Material: HDPE
  • Overall Diameter: 0.040 in. ± 0.0002 in
  • Average Thickness: 0.0088 in
  • Jacket Material: LDPE
  • Average Wall Thickness: 0.023 in
  • Nominal Outer Diameter: 0.296 in ±0.008 in
  • Nominal Weight: 38 lbs.
  • Shield Material: Al Foil Shield
  • Ripcord: Yes
  • Color: Black
Mechanical Characteristics
  • Temperature Rating (Installation): -40ºC to + 75ºC
  • Temperature Rating (Operating): -40ºC to + 75ºC
  • Tensile Strength (before): >=19 Mpa
  • Elongation (aging): >=300%
  • Aging Condition (after): >=85% of unaged
  • Aging Condition (aging): >=50% of unaged
Electrical Characteristics
  • Max. Conductor DC Resistance @ 20ºC: 9.5 Ω / 100 meters
  • Maximum DC Resistance Unbalanced @ 20ºC: ≤ 2.5%
  • Max. Pair-to-Pair Ground Capacitance Unbalance: ≤ 330 pF / 100 meters
  • Characteristic Impedance (1~350 MHz): ≤ 100 +/ 15 Ω
  • Mutual Capacitance: ≤ 5.6 nF / 100 meters
  • Max Delay Skew: ≤ 45 nS / 100 meters
Dimensions
  • Size: 1000 FT. Reel

Specs

Physical Characteristics
  • Conductor Material: Solid Annealed Bare Copper
  • Number of Conductor Pairs: 4
  • Size: 23 AWG
  • Stranding: Solid
  • Insulation Material: HDPE
  • Overall Diameter: 0.040 in. ± 0.0002 in
  • Average Thickness: 0.0088 in
  • Jacket Material: LDPE
  • Average Wall Thickness: 0.023 in
  • Nominal Outer Diameter: 0.296 in ±0.008 in
  • Nominal Weight: 38 lbs.
  • Shield Material: Al Foil Shield
  • Ripcord: Yes
  • Color: Black
Mechanical Characteristics
  • Temperature Rating (Installation): -40ºC to + 75ºC
  • Temperature Rating (Operating): -40ºC to + 75ºC
  • Tensile Strength (before): >=19 Mpa
  • Elongation (aging): >=300%
  • Aging Condition (after): >=85% of unaged
  • Aging Condition (aging): >=50% of unaged
Electrical Characteristics
  • Max. Conductor DC Resistance @ 20ºC: 9.5 Ω / 100 meters
  • Maximum DC Resistance Unbalanced @ 20ºC: ≤ 2.5%
  • Max. Pair-to-Pair Ground Capacitance Unbalance: ≤ 330 pF / 100 meters
  • Characteristic Impedance (1~350 MHz): ≤ 100 +/ 15 Ω
  • Mutual Capacitance: ≤ 5.6 nF / 100 meters
  • Max Delay Skew: ≤ 45 nS / 100 meters

Dimensions

  • Size: 1000 FT. Reel
Features
  • Meets or exceeds TIA-568-C.2
  • RoHS Compliant
  • ATM 155 Mbps
  • Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4
  • 1000 Mbps 1000BASE-T Gigabit EthernetTM (IEEE 802.3)
  • 16 Mbps Token RingTM (IEEE 802.5)
Specs
Physical Characteristics
  • Conductor Material: Solid Annealed Bare Copper
  • Number of Conductor Pairs: 4
  • Size: 23 AWG
  • Stranding: Solid
  • Insulation Material: HDPE
  • Overall Diameter: 0.040 in. ± 0.0002 in
  • Average Thickness: 0.0088 in
  • Jacket Material: LDPE
  • Average Wall Thickness: 0.023 in
  • Nominal Outer Diameter: 0.296 in ±0.008 in
  • Nominal Weight: 38 lbs.
  • Shield Material: Al Foil Shield
  • Ripcord: Yes
  • Color: Black
Mechanical Characteristics
  • Temperature Rating (Installation): -40ºC to + 75ºC
  • Temperature Rating (Operating): -40ºC to + 75ºC
  • Tensile Strength (before): >=19 Mpa
  • Elongation (aging): >=300%
  • Aging Condition (after): >=85% of unaged
  • Aging Condition (aging): >=50% of unaged
Electrical Characteristics
  • Max. Conductor DC Resistance @ 20ºC: 9.5 Ω / 100 meters
  • Maximum DC Resistance Unbalanced @ 20ºC: ≤ 2.5%
  • Max. Pair-to-Pair Ground Capacitance Unbalance: ≤ 330 pF / 100 meters
  • Characteristic Impedance (1~350 MHz): ≤ 100 +/ 15 Ω
  • Mutual Capacitance: ≤ 5.6 nF / 100 meters
  • Max Delay Skew: ≤ 45 nS / 100 meters
Dimensions
  • Size: 1000 FT. Reel
